2 Product description
Page 21 of 105
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic Srl
2.2. Exterior view

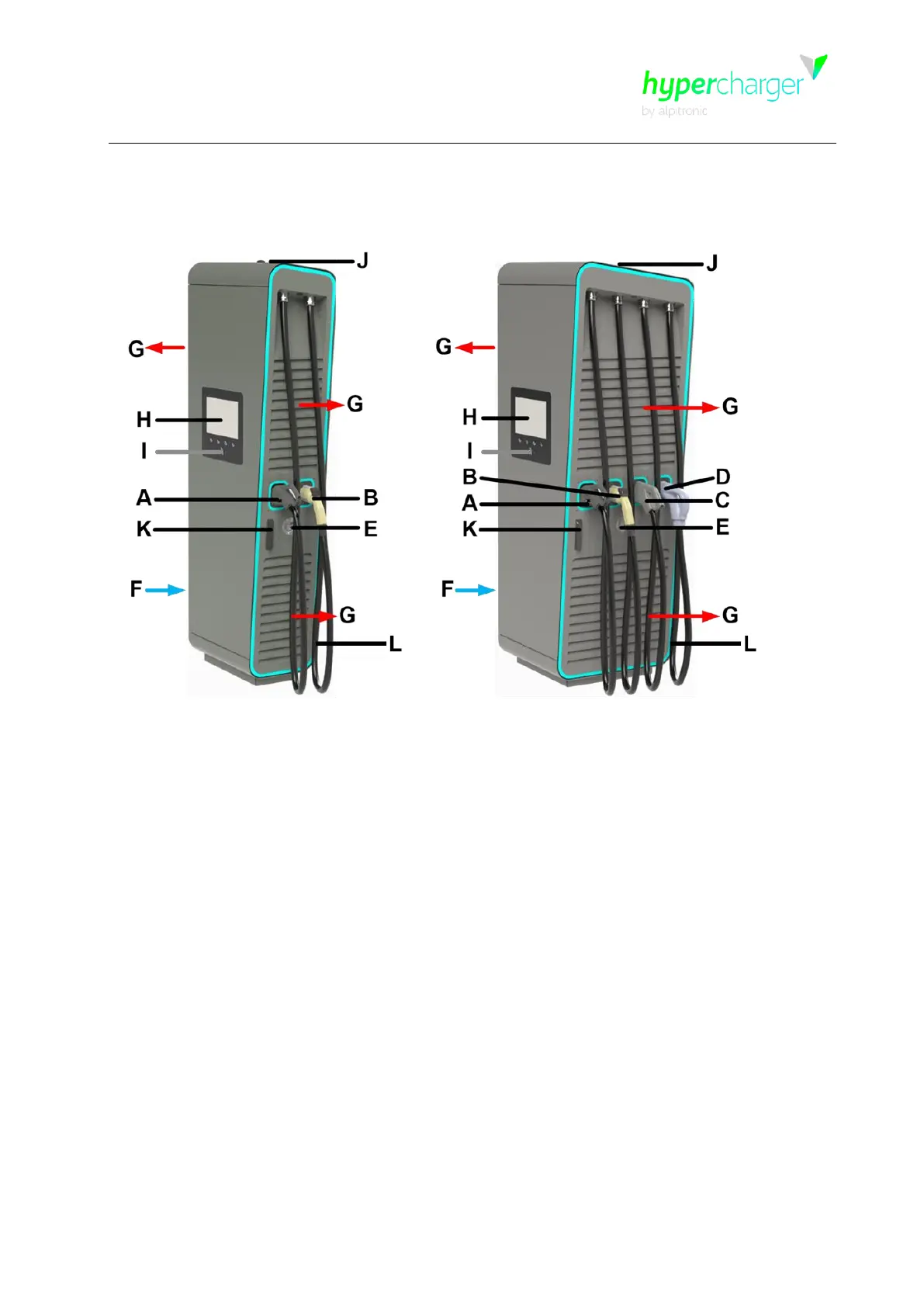

The following figure shows the different elements of the device from the outside.
Figure 6: Elements of the charging station HYC_150 and HYC_300
A DC charge outlet 1
B DC charge outlet 2 (optional)
C DC charge outlet 3 (optional)
D DC charge outlet 4 (optional)
E AC charge socket (optional)
F Air inlet
G Air outlet
H Display / HMI
I RFID card reader
J GSM / LTE antenna
K Door handle
L Nameplate
