Alpitronic Hypercharger HYC 150 User Manual

hypercharger - Operation Instructions and Installation Guide
Hardware
Version 2-2
8 Maintenance
Page 91 of 105
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic Srl
8.3. Function test of main switch
Please turn the main switch (label QB1) off. Wait until all LEDs of the stacks are turned off.
Then turn the switch again on.

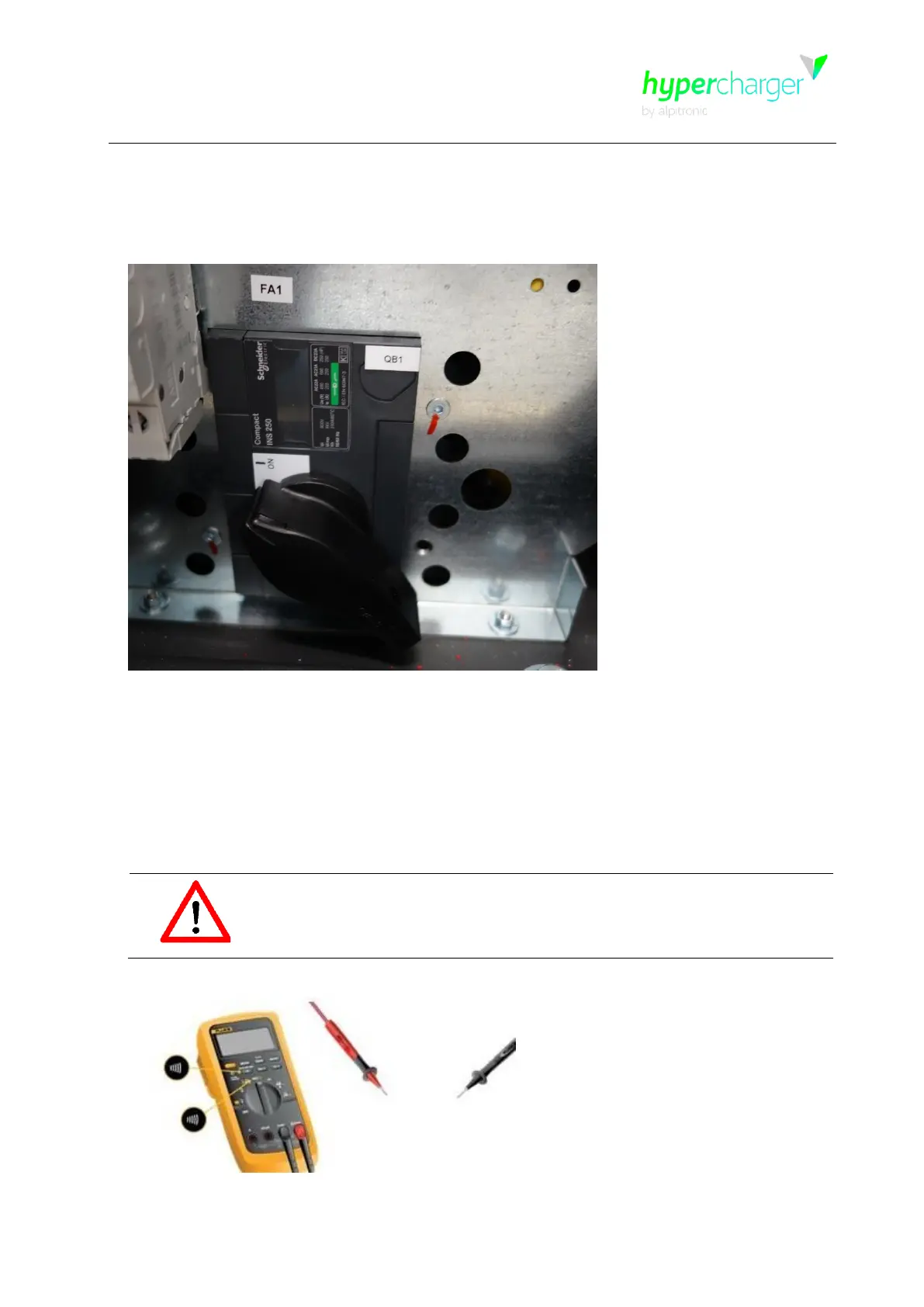

Figure 78: Function test of main switch
8.4. Verification of protective measures
In order to execute this check, turn off the main switch (label QB1, see figure above) and
keep a digital multimeter at hand.
Attention
Please turn off the main switch!
Figure 79: Digital multimeter
