hypercharger - Operation Instructions and Installation Guide
Hardware
Version 2-2
4 hypercharger installation and commissioning
Page 61 of 105
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic Srl
The external dimensions for the HYC_150 (related to the center of the base plate) are shown
in the following figure and specified in Table 19.

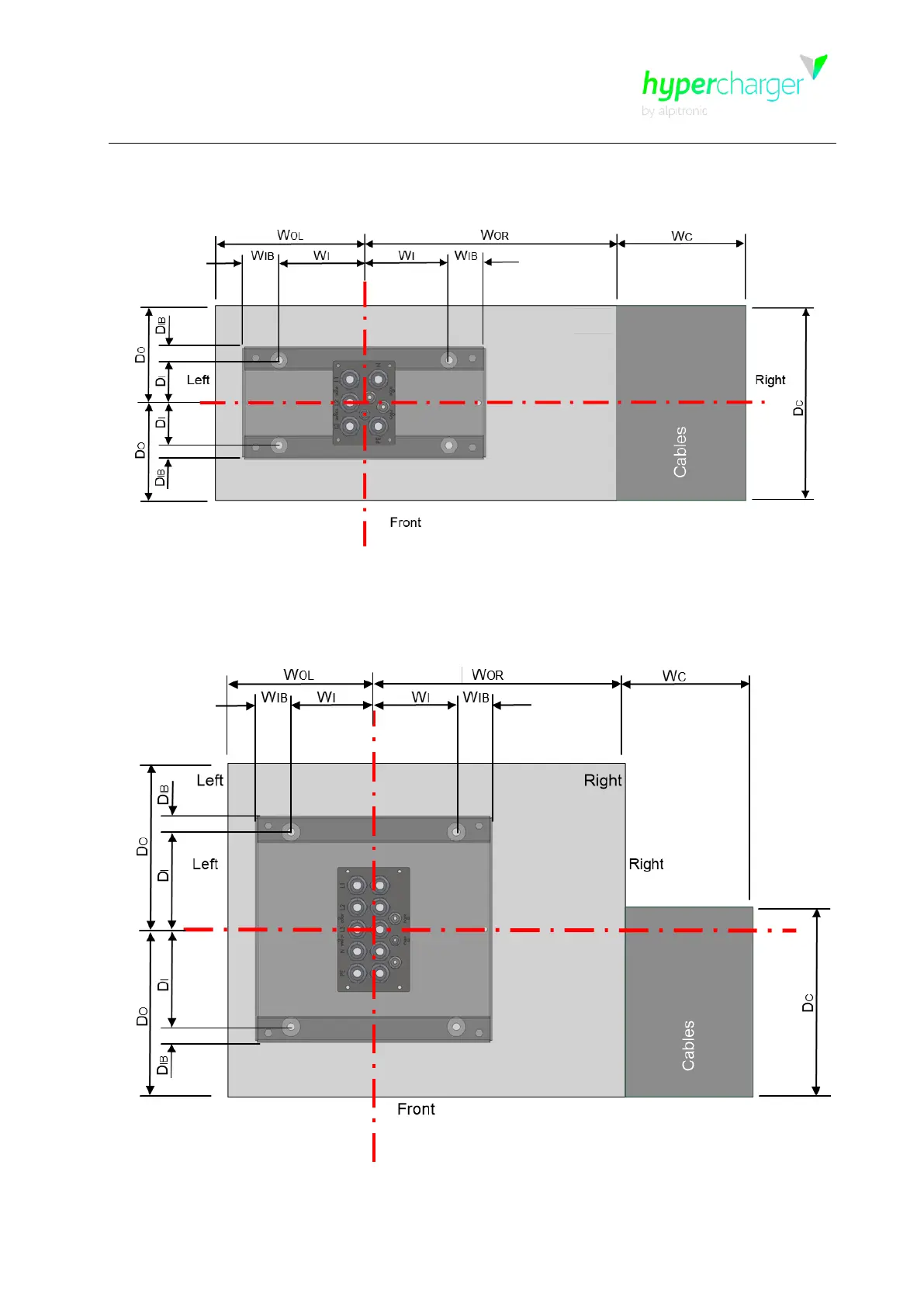

Figure 48: Distances between the base and the outer dimensions of the HYC_150 (top view)
The external dimensions for the HYC_300 (related to the center of the base plate) are shown
in the following figure and specified in Table 19.
Figure 49: Distances between the base and the outer dimensions of the HYC_300 (top view)
