2.2.1. Nameplate
The nameplate is located opposite the display door in the lower right corner. It contains the
CE marking, serial number and electrical characteristics of the charger.

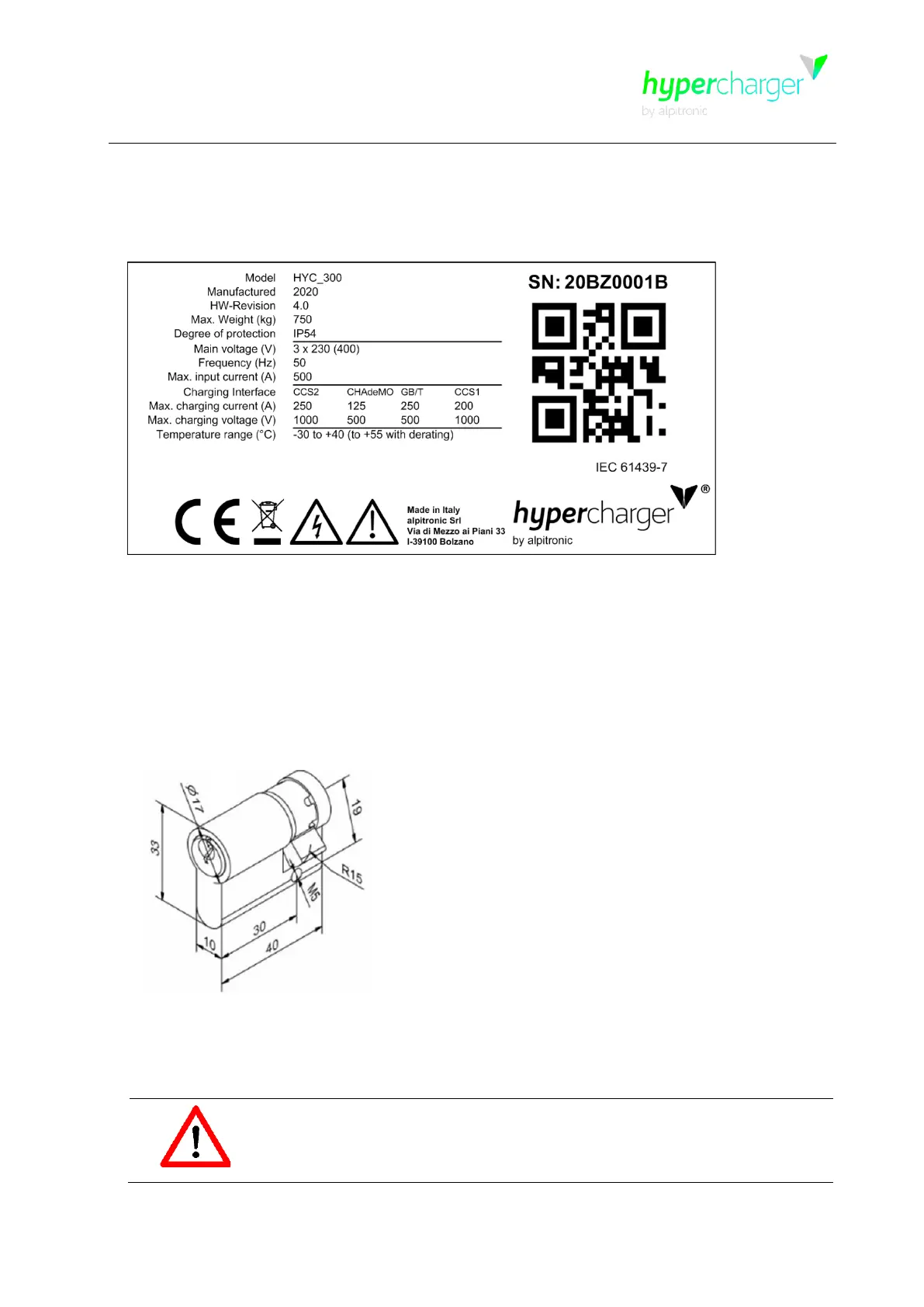

Figure 9: Example of nameplate for hypercharger HYC_300
2.3. Opening of the hypercharger
The hypercharger has three doors that grant access to the inside of the device (Figure 11).
The service door and charging cable door are equipped with a locking cylinder to lock the
device. The cylinder (made of brass and nickel plated) is a profile half cylinder with pin
tumbler cylinder and adjustable 8 x 45° clip-in cam.
Figure 10: Half cylinder (data in mm)
Attention
If you wish to replace the locking cylinder, please ensure that you only use
half cylinders with a maximum construction length of 30/10. Otherwise, the
existing cover can no longer be closed properly.
