All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic Srl
The external 230 V cable is connected to terminals N, L and PE.
Depending on the requirements, a working current or under-voltage current release can be
activated.
To activate under-voltage release, please connect the contacts C1 and NO. This mode
enables the charging station to operate when the relay is activated and voltage is applied.
The working current release allows the charging station to operate when the relay is not
activated. When voltage is applied to the N, L and PE contacts, this contact opens and the
charging station is in emergency stop mode. To activate this mode, please connect contacts
C2 and N2.
The relay should be set to "auto". To check the functionality, you can set the relay manually
to "0" or "1", but make sure to set it back to "auto" afterwards.

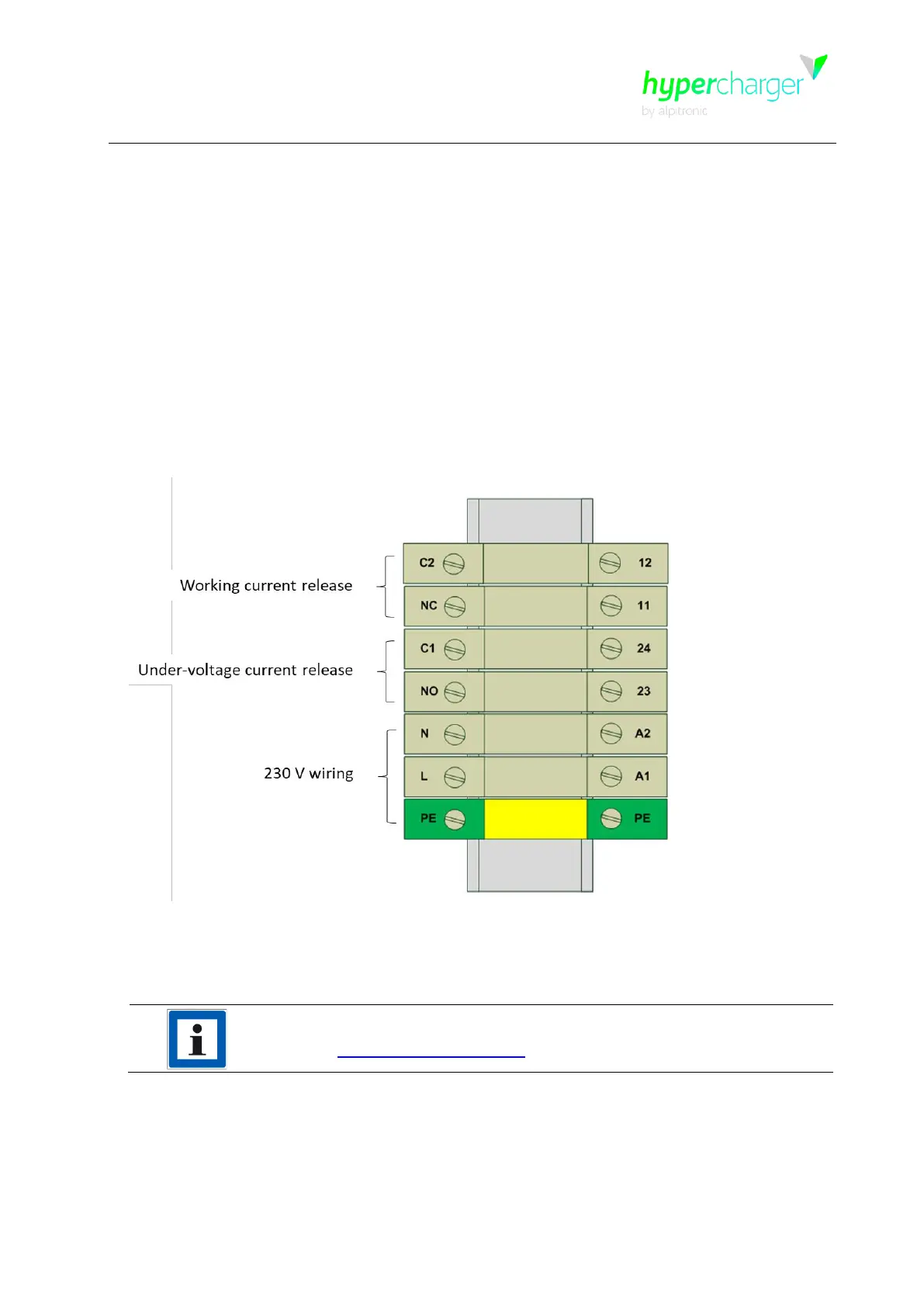

Figure 32: Connection options external emergency stop
Remark
Detailed installation instructions can be requested from hypercharger
support (support@hypercharger.it).
