Layout and function
AMALOG BAH0017.6 08.19
15

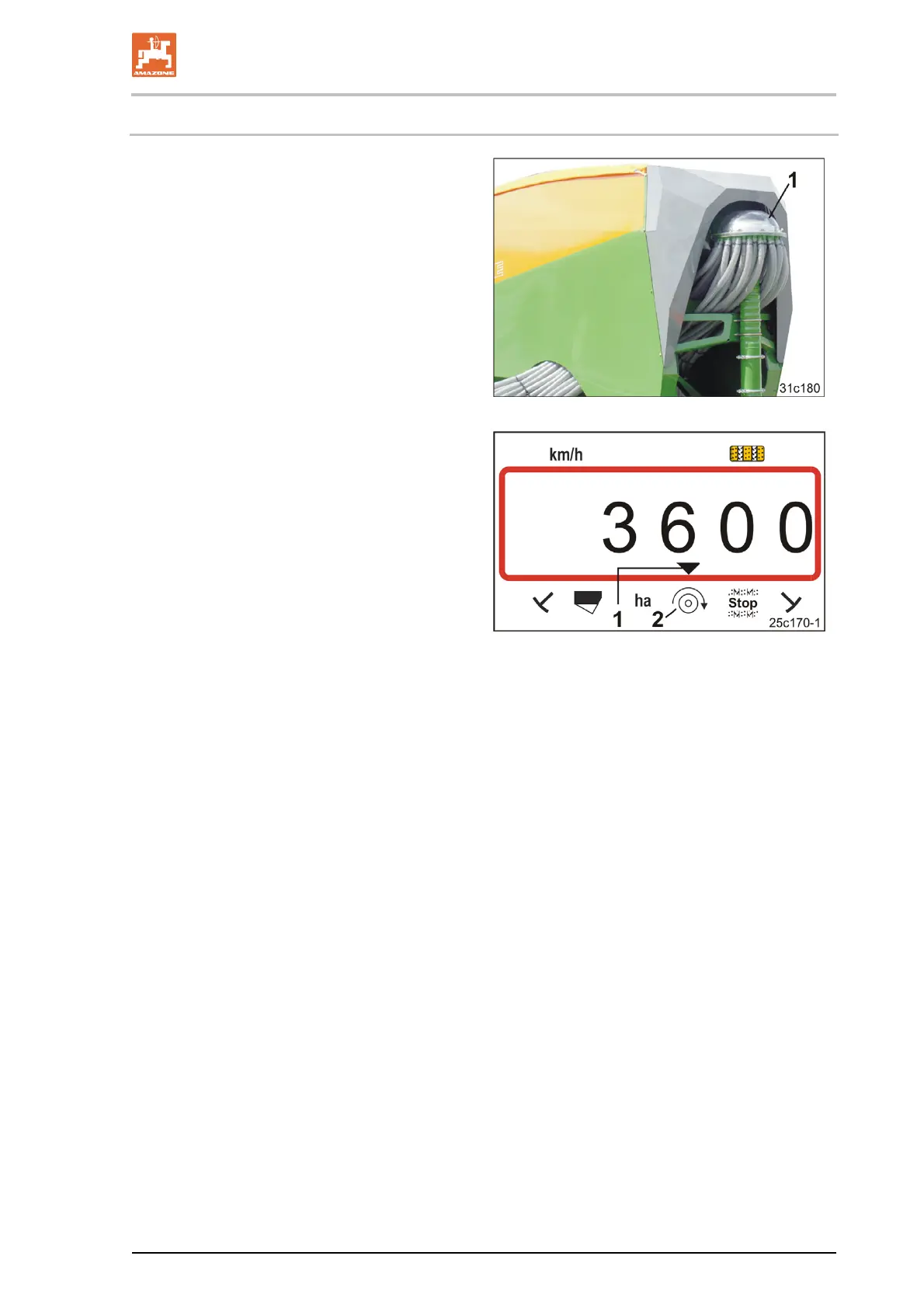

4.3.2 Operation with pneumatic seed drills
AmaLog+ monitors the tramline control in the dis-
tributor head (Fig. 5/1). An acoustic alarm
sounds in the event of incorrect shutter position.
Fig. 5
AmaLog+ monitors the fan speed.
If the actual speed deviates by more than 10 %
from the target speed, an acoustic signal is initi-
ated and in the display the control lamp (Fig. 6/1)
above the speed symbol (Fig. 6/2) flashes.
The speed monitoring is only active when the
seed drill is working.
Fig. 6
