Commissioning
22
AMALOG BAH0017.6 08.19
5 Commissioning

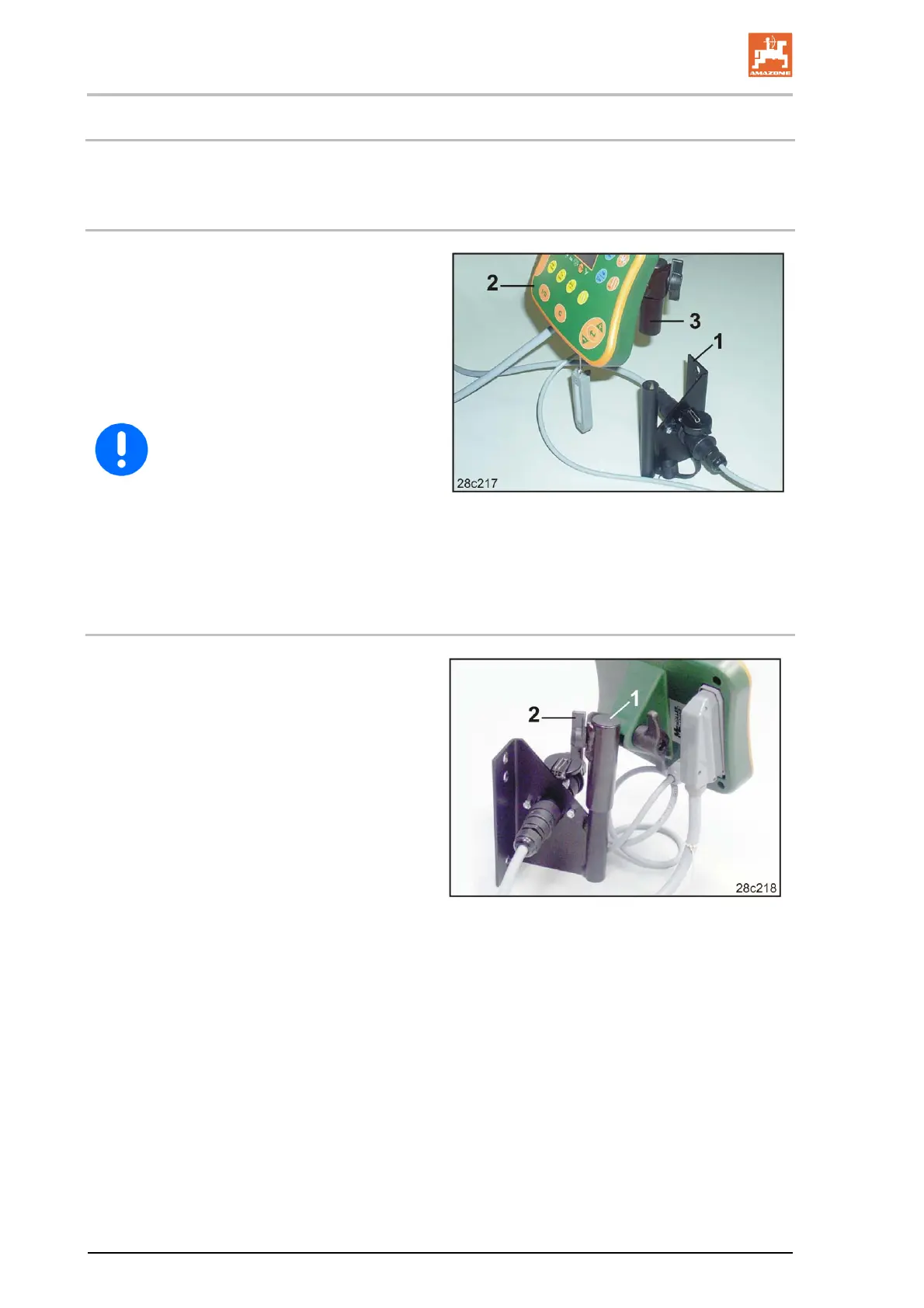

5.1 Installing the control terminal
1. Screw the bracket (Fig. 11/1) so that is free
from vibrations and electrically connected to
the right of the driver's position in the tractor
cab, within visual range and easy to access
(Fig. 11/2).
The distance from the radio unit or aerial
must be at least 1 m.
Fig. 11
The control terminal must have a con-
ductive connection via the bracket to
the tractor chassis!
Remove the paint at the installation
points before installing the bracket!
2. Equip the control terminal with the counter-
part (Fig. 11/3).
5.2 Connecting the control terminal
1. Fit the counterpart (Fig. 12/1) onto the
bracket and clamp it in place with the wing
screw (Fig. 12/2).
Fig. 12
