4.4 Work display

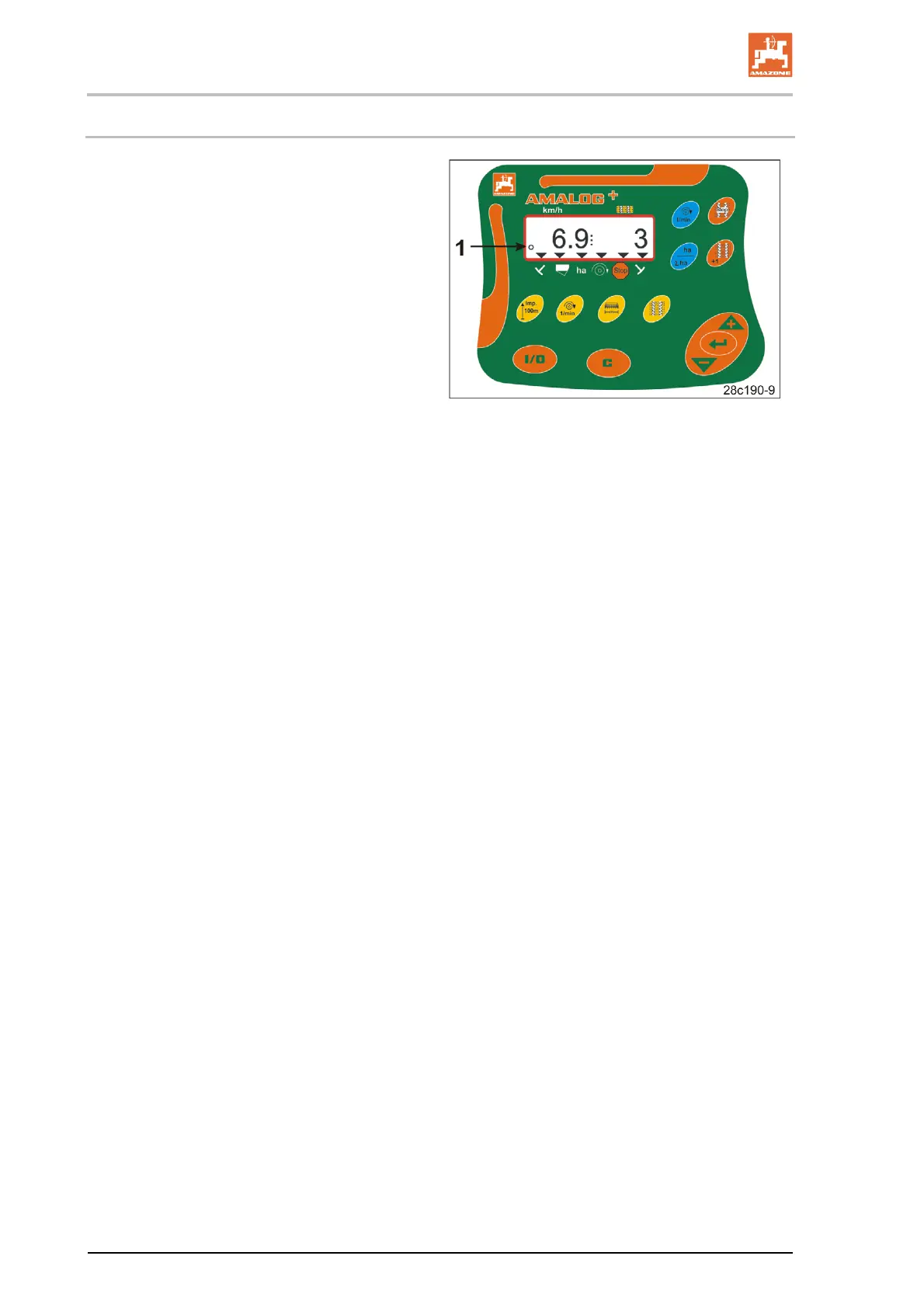

The work display (Fig. 7) appears with the first
pulse from the distance sensor.
The flashing circle symbol (Fig. 7/1) during work
indicates that
The control terminal receives pulses from
the distance sensor
The control terminal is working correctly.
The work display depends on the working situa-
tion [see table (Fig. 8)].
