Version 1.4 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 13

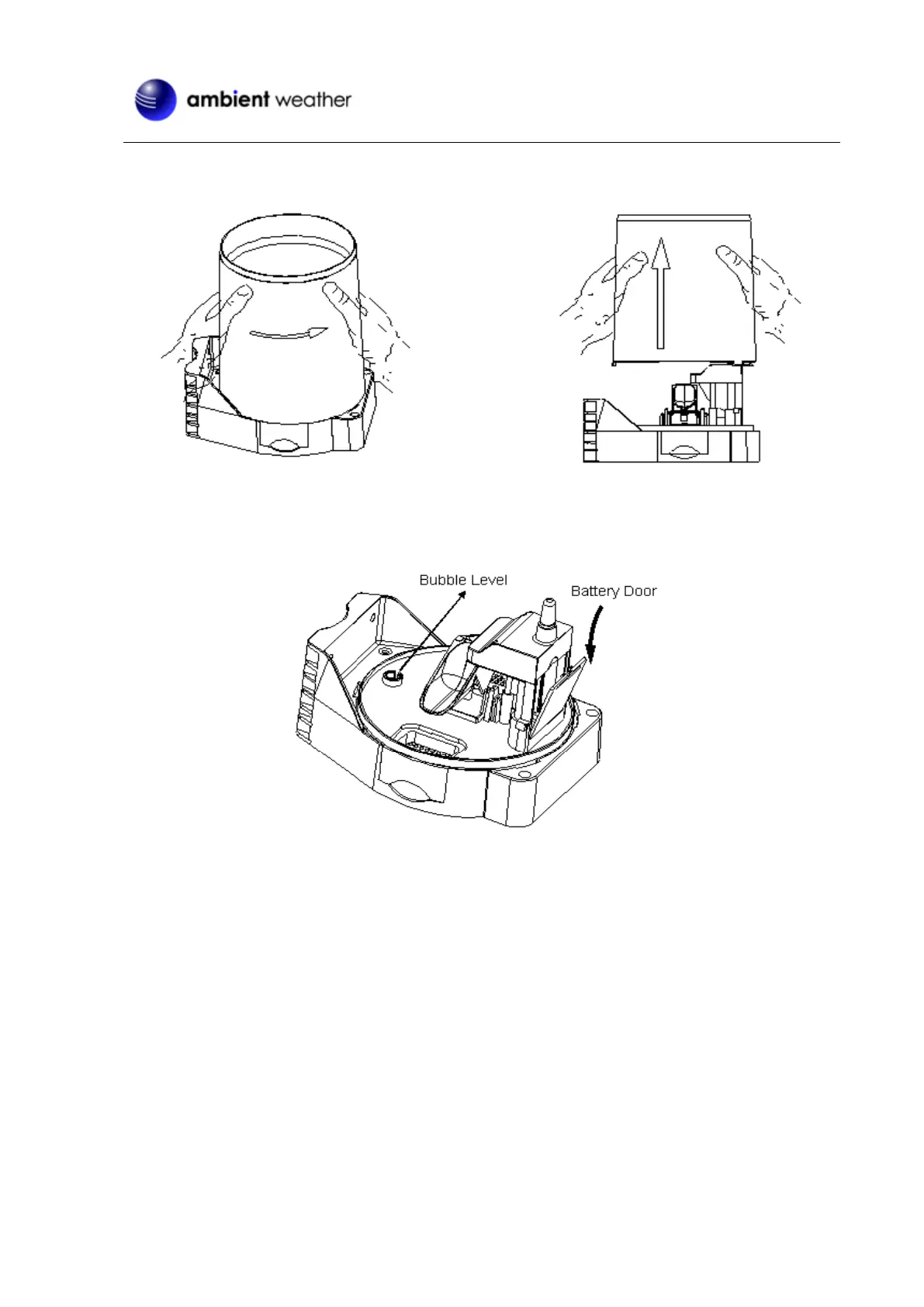

Rotate and detach the rain gauge funnel, as shown in Figure 17.
Figure 17
Locate the battery door on the rain gauge transmitter, pull out the battery compartment, as shown in Figure
18.
Figure 18
Rain Gauge Installation
Remove the rain gauge funnel from the base prior to installation by rotating the counterclockwise until the
tabs on the base and the funnel align, then pulling upwards.
Fasten the rain gauge to the mounting pole. Tighten the rain gauge to your mounting pole or bracket with
two U-bolts and four M5 nuts or fix on a horizontal surface with the four tapping screws.
Reattach the funnel by aligning the tabs on the funnel and base and rotate clockwise.
Figure 19
