Version 1.4 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 19

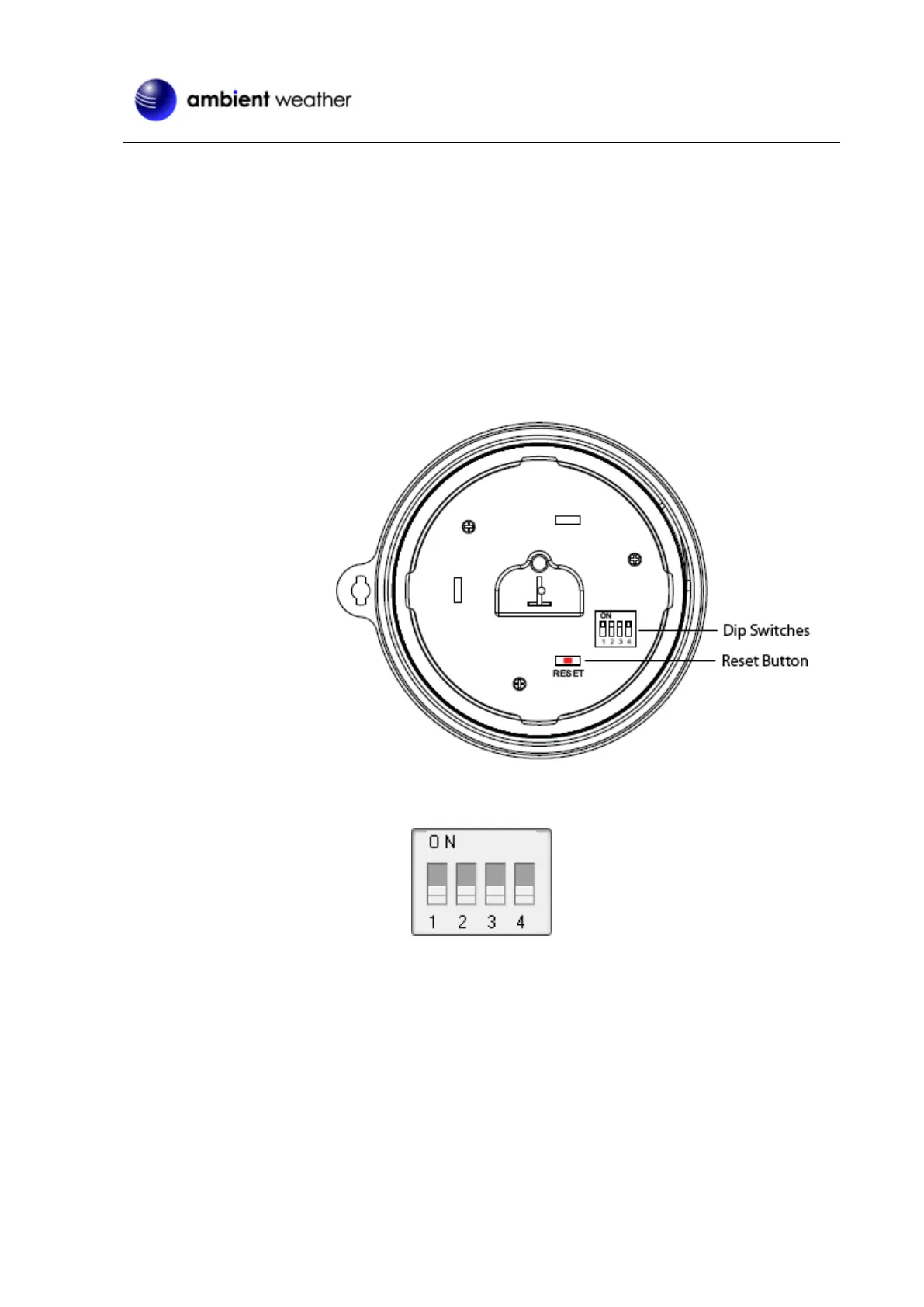

inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter.
Figure 29 displays all four switches in the OFF position (factory default setting).
NOTE: The second-generation pool float includes a reset button.
If the display does not power up after inserting the batteries, press the reset button shown in Figure 29.
If your pool float does not include a reset button, cover the solar panel with one hand, remove the
batteries, wait 60 seconds, reinsert the batteries, and uncover the solar panel.
Figure 29
Figure 30
Channel Number: The F007PF supports up to eight transmitters. To set each channel number (the default is
Channel 1), change Dip Switches 1, 2 and 3, as referenced in Table 1.
Temperature Units of Measure: To change the transmitter display units of measure (°F vs. °C), change
Dip Switch 4, as referenced in Table 1.
