Version 1.4 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 21
After inserting the batteries, the remote sensor LED indicator will light for 4 seconds, and then
flash once per 60 seconds thereafter. Each time it flashes, the sensor is transmitting data.

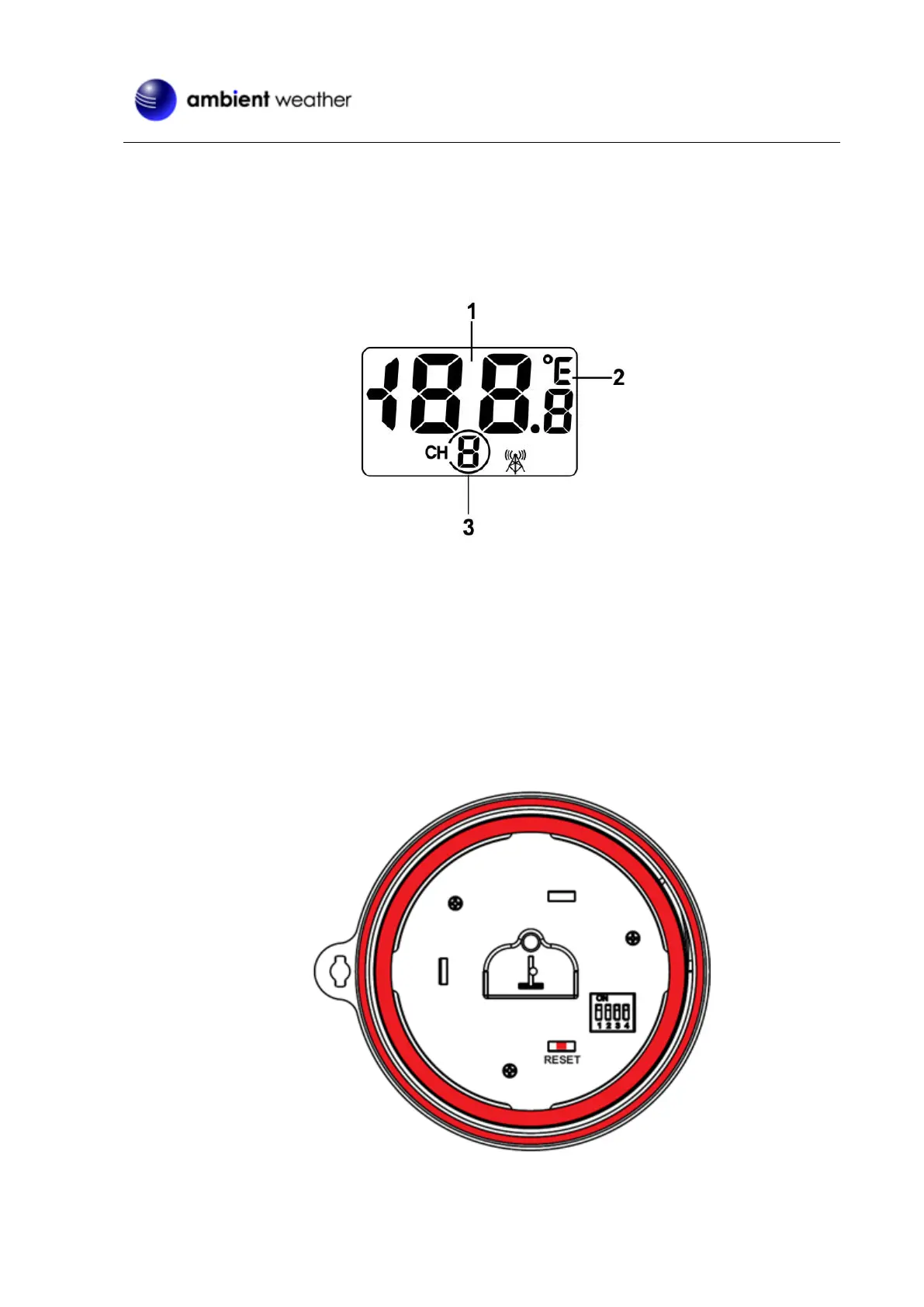

Verify the correct channel number (CH) and temperature units of measure (°F vs. °C) are on the
display, as shown in Figure 23.
Figure 32
(1) temperature
(2) temperature units (°F vs. °C)
(3) channel number
Close the battery door. Make sure both red colored gaskets are properly seated in their traces prior
to closing the battery door, as shown in Figure 33. Failure to properly seal the floating
thermometer will result in water leakage and damage.
Figure 33
