VCU118 Board Power System
[Figure 2-1, callout 31]

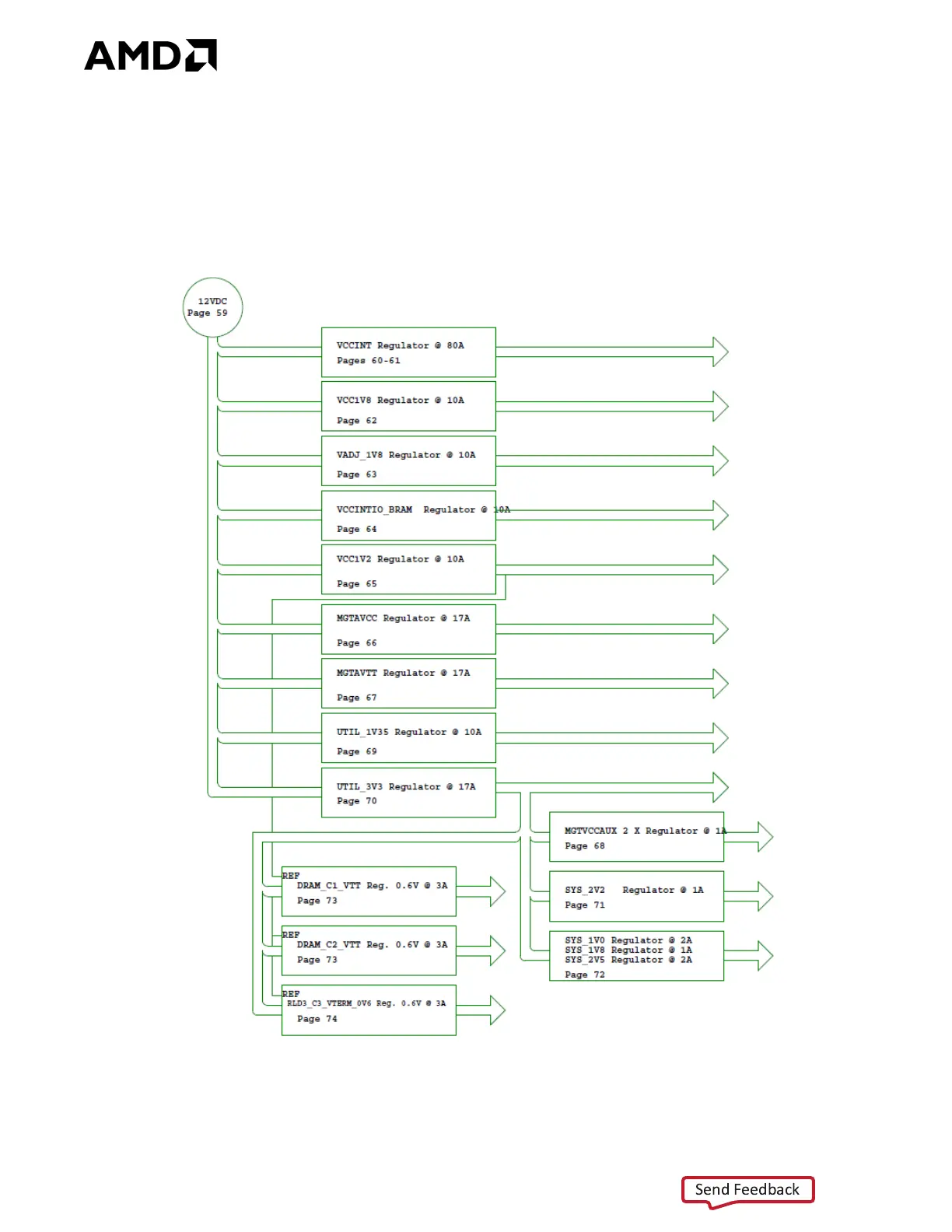

The VCU118 hosts a Maxim PMBus based power system. Figure 3-27 shows the VCU118
power system block diagram.
X-Ref Target - Figure 3-27
Figure3‐27: VCU118 Power System Block Diagram
X17984-100416
