VCU118 Board User Guide 93
UG1224 (v1.5) March 15, 2023
Chapter3: Board Component Descriptions

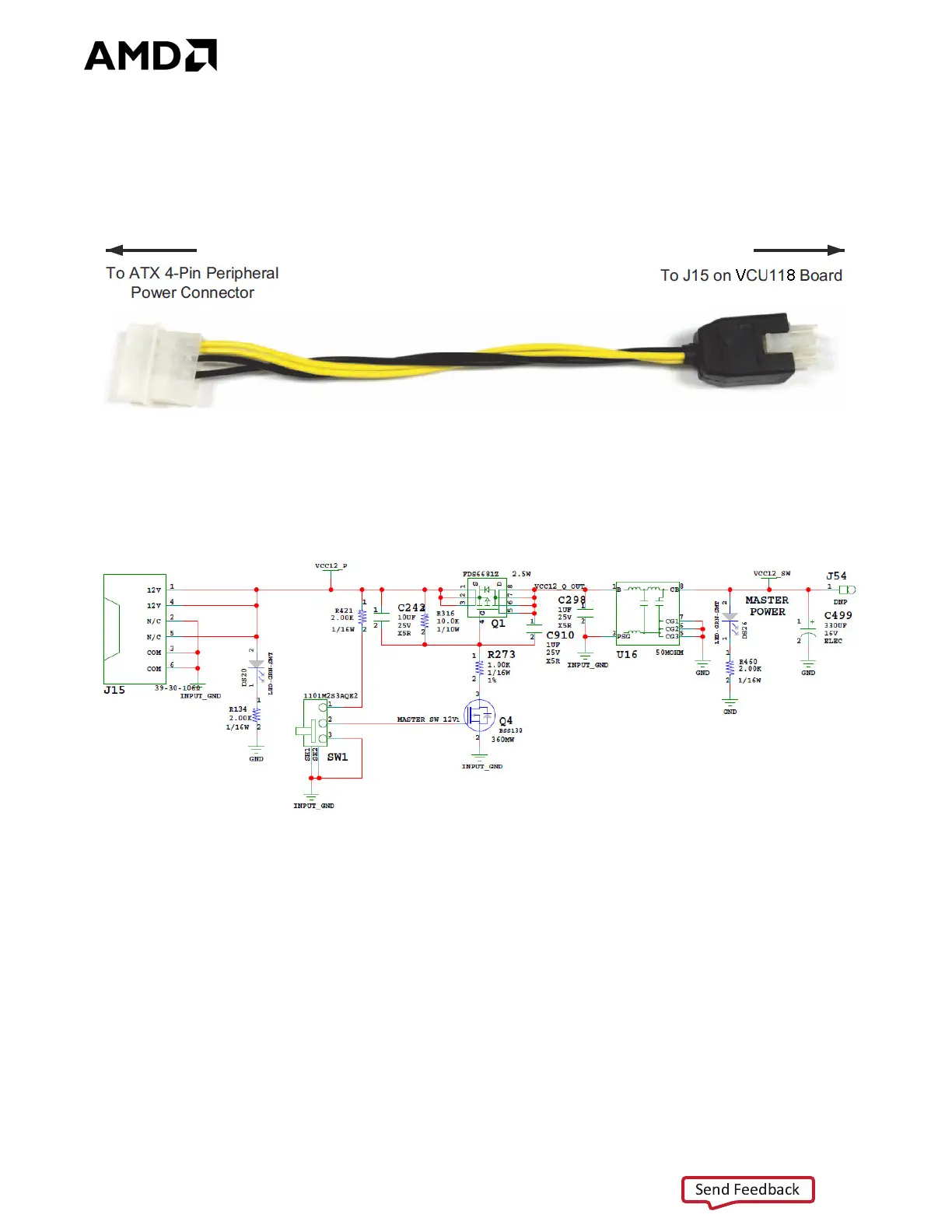

The VCU118 evaluation kit provides the adapter cable shown in Figure 3-24 for powering
the VCU118 board from the ATX power supply 4-pin peripheral connector. The AMD part
number for this cable is 2600304, and is equivalent to the Sourcegate Technologies part
number AZCBL-WH-1109-RA4. See [Ref 29] for ordering information.
Figure 3-25 shows the power connector J15, power switch SW1, and indicator LED DS26.
X-Ref Target - Figure 3-24
Figure3‐24: ATX Power Supply Adapter Cable
X-Ref Target - Figure 3-25
Figure3‐25: Power On/Off Switch SW1
