Maintenance and Troubleshooting | 6-11
NOTE
Figure 6-2 illustrates a 40 cm Measuring Cell. Assembly drawings
and maintenance procedures for other types of Measuring Cells can
be found in Manual Supplements in the “Supplemental Information”
section of this manual. The supplements also list part numbers for the
replaceable parts (o-rings and Cell Window).

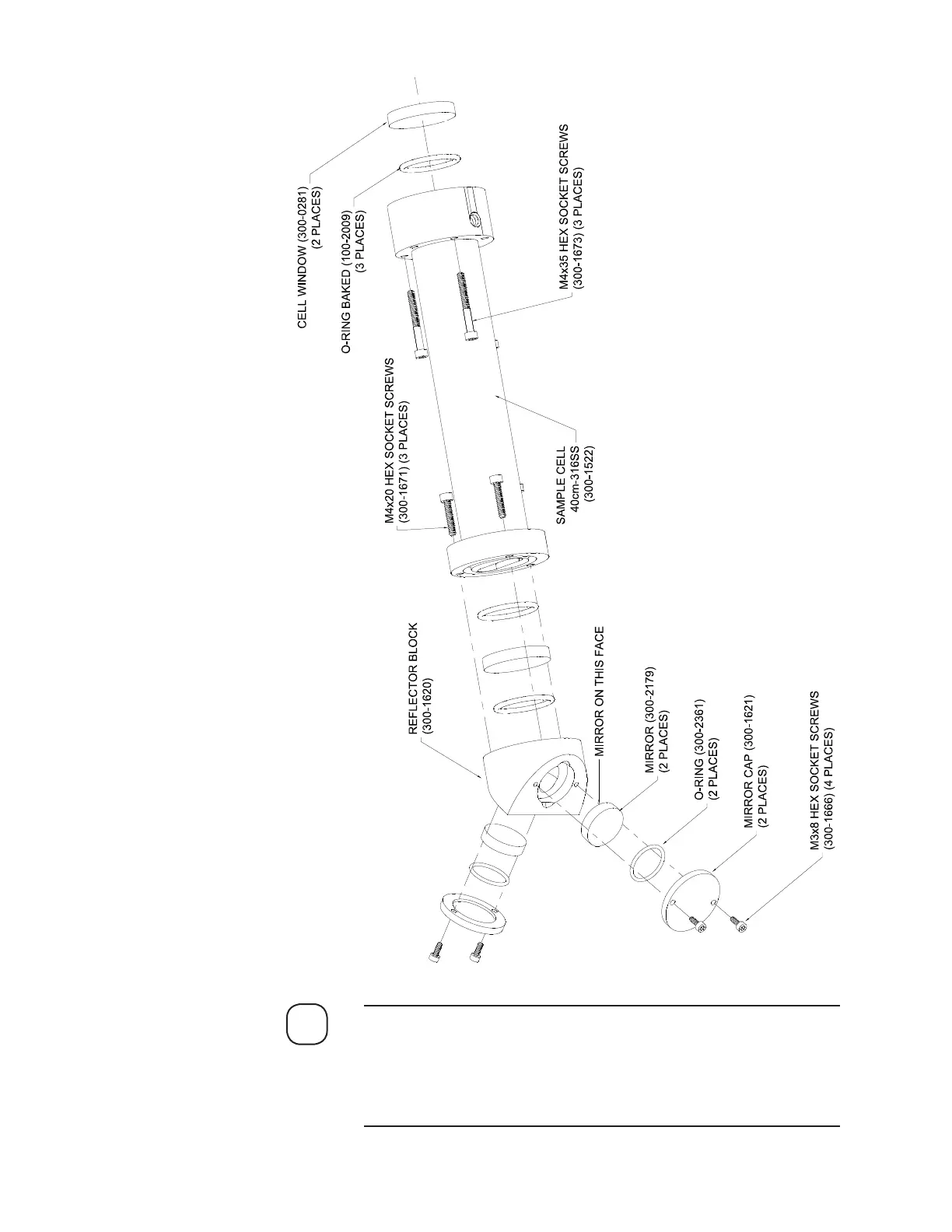

Figure 6-2.
40 cm Measuring Cell.
