22 | IPS-4 Zone1/Analyzer

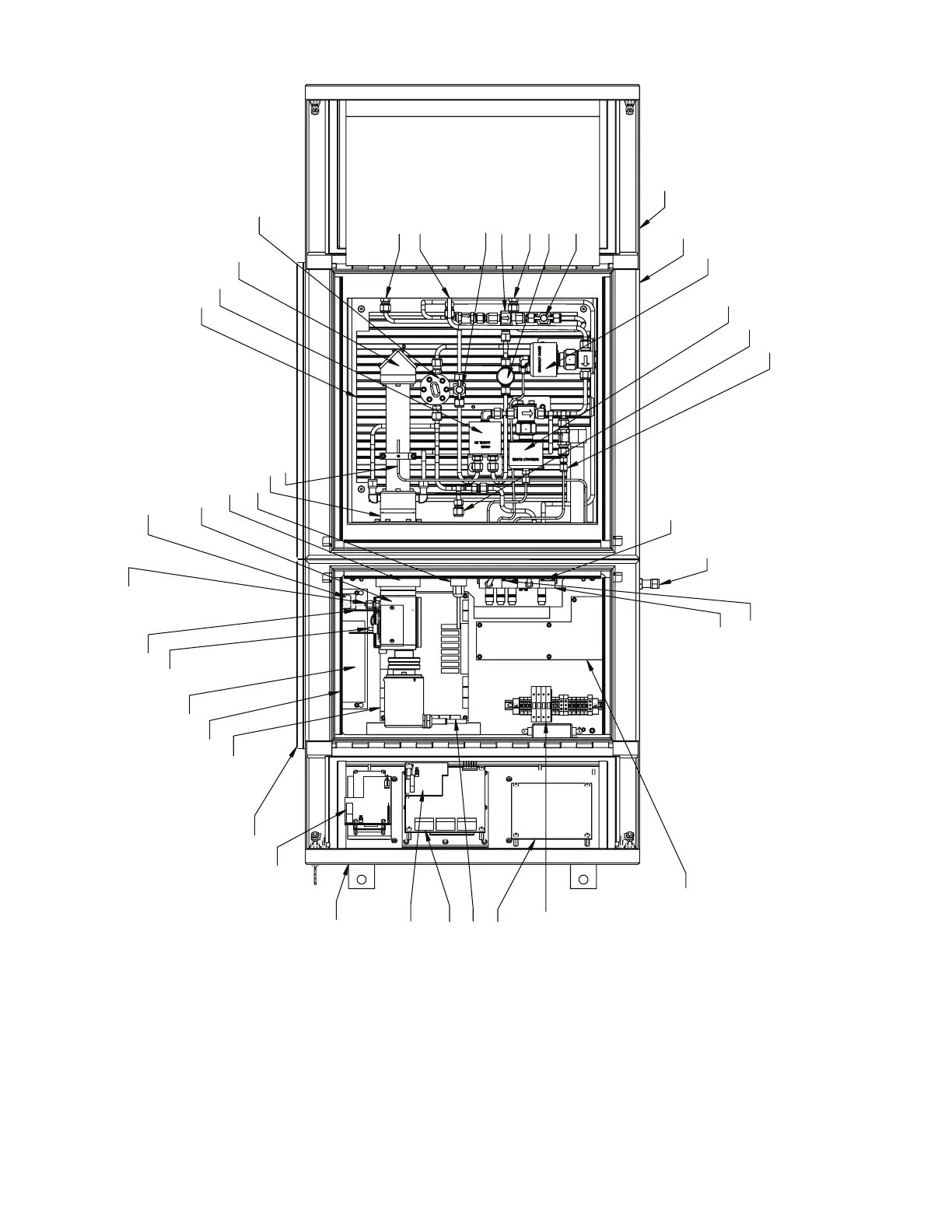

Figure 3.
Analyzer component
layout details,
example only.
INSTRUMENT AIR (or N ) INLET
ACTUATOR/ZERO
PRESSURE REGULATOR
SOLENOID
MANIFOLD
BLOCK
CUSTOMER
CONNECTIONS
PWB
DETECT
OR
INTERF
ACE PWB
DISPLAY
INTERFACE PWB
ELECTRONICS
ENCLOSURE
OT RESET SWITCH, OPTICAL BENCH ASSEMBLY
HEATER, OPTICAL BENCH ASSEMBLY
RTD, OPTICAL BENCH ASSEMBLY
XENON FLASH
LAMP ASSEMBLY
POWER SUPPLY
PRESSURE TRANSDUCER
ASPIRATOR PRESSURE REGULATOR
AC TERMINAL/
MAIN FUSES
ANALOG PWB
RELAY PWB
MCU PWB
ELECTRONICS
ENCLOSURE DOOR
XENON LAMP PWB
DC TERMINAL ASSEMBLY
OPTICAL BENCH ASSEMBLY
M6 x 20mm HEX SET SCREW (LOCKS OPTICAL BENCH ASSEMBLY IN PLACE) (NOT SHOWN)
OVEN HEATER PLATE (OPTIONAL)
FILTER (LIQUID TRAP)
CELL (APPLICATION SPECIFIC)
FLOW INDICATOR (OPTIONAL)
SAMPLE IN CAL (SPAN) FLUID IN
SAMPLE LINE SHUT OFF
SAMPLE OUT SAMPLE FILTER DRAIN VENT LINE SHUT OFF
ANALYZER OVEN DOOR
ANALYTICAL OVEN/ SAMPLE SYSTEM ENCLOSURE
SPAN FLUID VALVE
SAMPLE FLUID VALVE
FROM PRESSURE TRANSDUCER
ZERO FLUID IN / CHECK VALVE
CELL RTD (OPTIONAL)
ASPIRATOR / CHECK VALVE
WINDOW HOUSING
NOTES:
1. THE DRAWING REPRESENTS A CONCEPTUAL VIEW OF THE ZONE 1 IPS-4. ACTUAL LAYOUT AND
INCLUDED COMPONENTS WILL VARY BASED ON CUSTOMER REQUIREMENTS AT TIME OF ORDER.
2. PURGE AND DISCONNECT BOXES ARE REMOVED FOR CLARITY.
