User Manual
_________________________________________________________________
© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / surgex.com 13

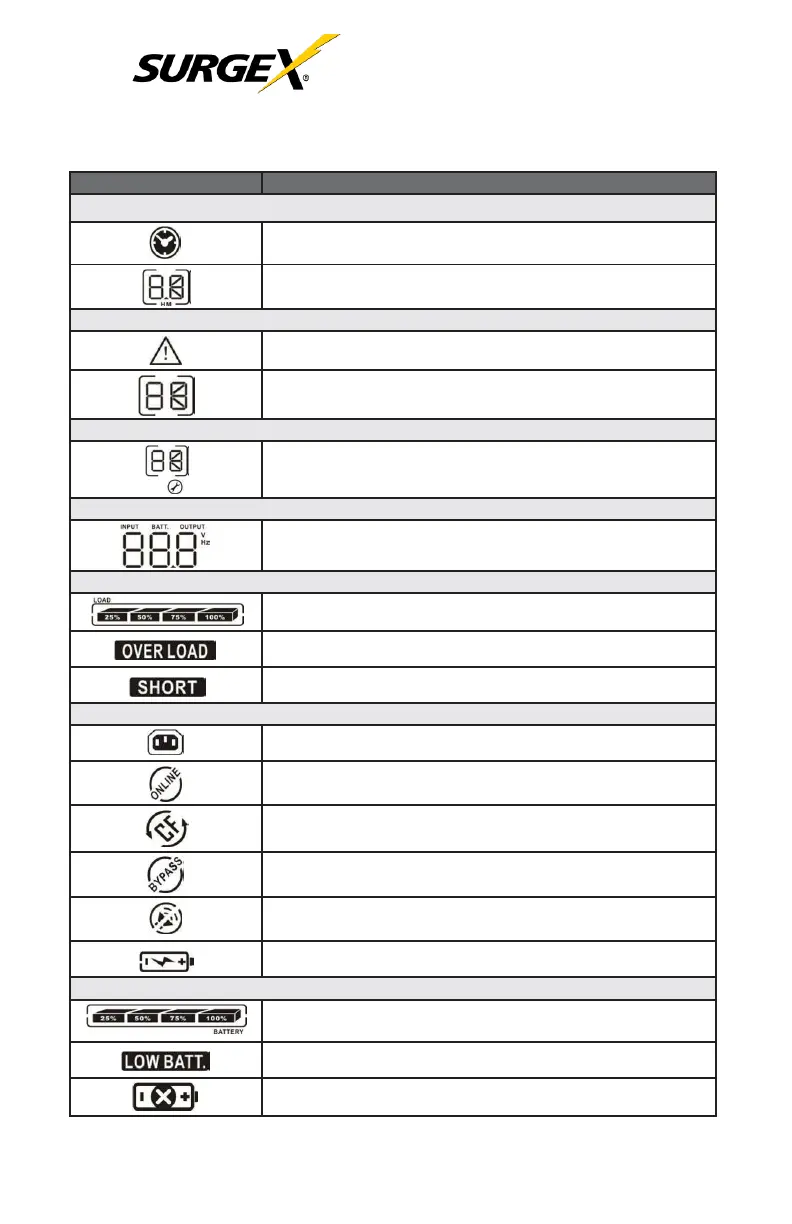

2.10 LCD: Display and Functional Description
Indicates the backup time.
Indicates the backup time. H: hours, M: minutes.
Warning & Fault information
Indicates that a warning and/or fault has occurred.
Indicates that warning and fault codes. The codes are listed in
sections 9.4 and 9.5.
Indicates that a warning and/or fault has occurred.
Input/Output & Battery information
Indicates the input/output voltage, input/output frequency, and
battery voltage. V: voltage, Hz: frequency.
Indicates load level by 0-25%, 26-50%, 51-75% and 76-100%.
Indicates that the load or the UPS output is short circuited.
Indicates that the programmable outlets are working.
Indicates that the UPS is in on-line mode.
Indicates that the UPS is in converter mode.
Indicates that the UPS is in bypass mode.
Indicates that the UPS alarm is disabled.
Indicates that the battery charger is working.
Indicates the battery level by 0-25%, 26-50%, 51-75%, and
76-100%.
Indicates that there is something wrong with the battery.
