User Manual
_________________________________________________________________
© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / surgex.com 14
3. INSTALLATION
The UPS and external battery cabinet are designed to be rack mounted
in four post
frames
or to be floor
standing
in a tower
configuration.

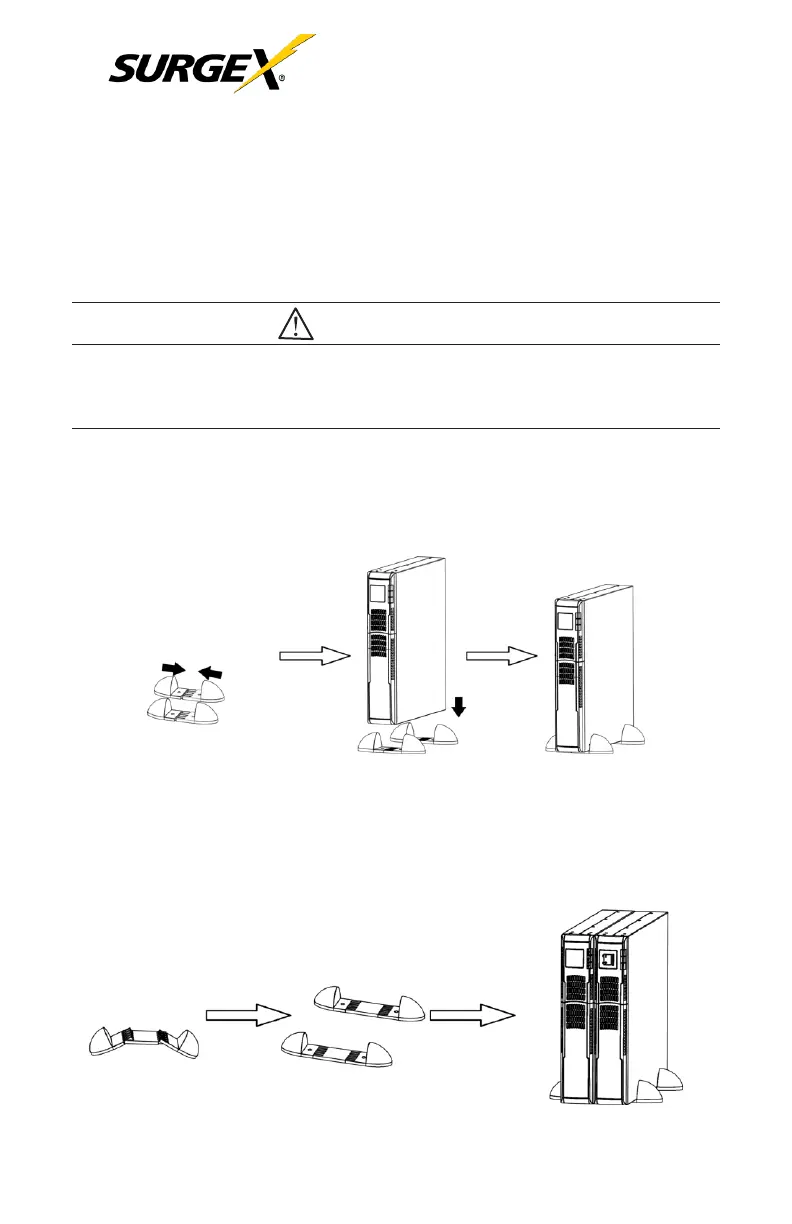

3.1 Tower Installation
Atte
n
t
ion
Use all supplied mounting hardware on each UPS and extended battery
cabinet.
A. To install
standalone,
refer to the figure directly below :
• Assemble two feet as one tower stand.
• Align the two stands.
• Put the UPS module in the stands.
B. To install a UPS module and one extended battery cabinet, refer to
the figure directly below :
• Assemble two feet each with an extension as one tower stand.
• Align the two stands.
• Put the UPS module and external battery cabinet in the stands.
