first and
as
low
as possible.
Start with the lowest
available
position
and
work up. Your UPS should be installed last and end up on the top of
all the battery cabinets for proper cable routing.
Atte
n
t
ion
Use all supplied mounting hardware on each UPS and external battery
cabinet. NEVER depend on lower devices to support other devices.

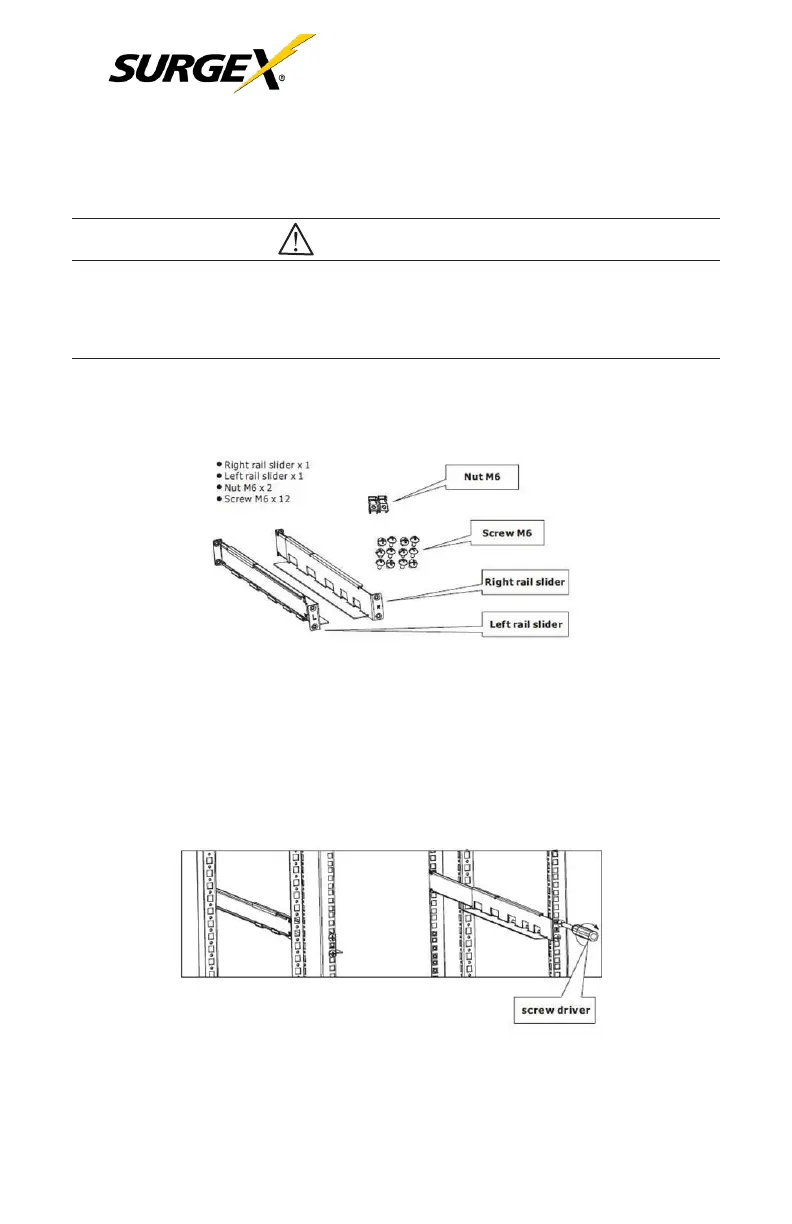

Included in each rack mount carton is a rail kit. The rail kit consists of
the following components :
3.2.1 Assembly Steps
Step 1: Use four M6 screws to mount the right and left rail sliders to
the two front posts of the four-post rack. Refer to the following
figure:
Step 2. Use four M6 screws to mount the right and left rail sliders to
the two back posts of the four-post rack. Refer to the following
figure:
