User Manual
_________________________________________________________________
© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / surgex.com 17

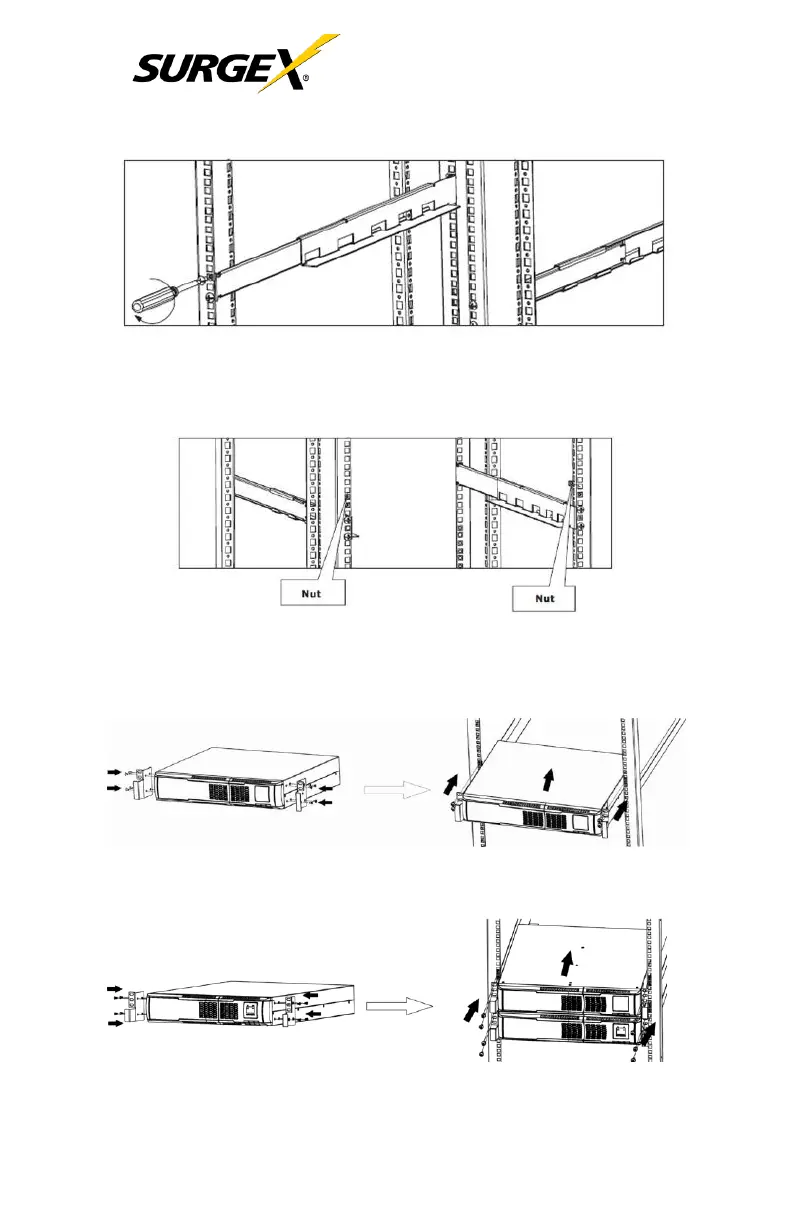

Step 3. Insert one M6 nut into the right and left front posts of the
four-post rack for a 2U installation. Refer to the following
figure:
Step 4. Install UPS alone.
Add mounting ears to both sides of the unit. Refer to the following
figure:
Step 5. Install UPS and external battery cabinet. Refer to the follow-
ing
figure
.
