6. To exit the UPS setting mode press the “UP” or “DOWN” button
and scroll to the ESCAPE function (item 00).
7. Press the “LEFT ARROW” button.

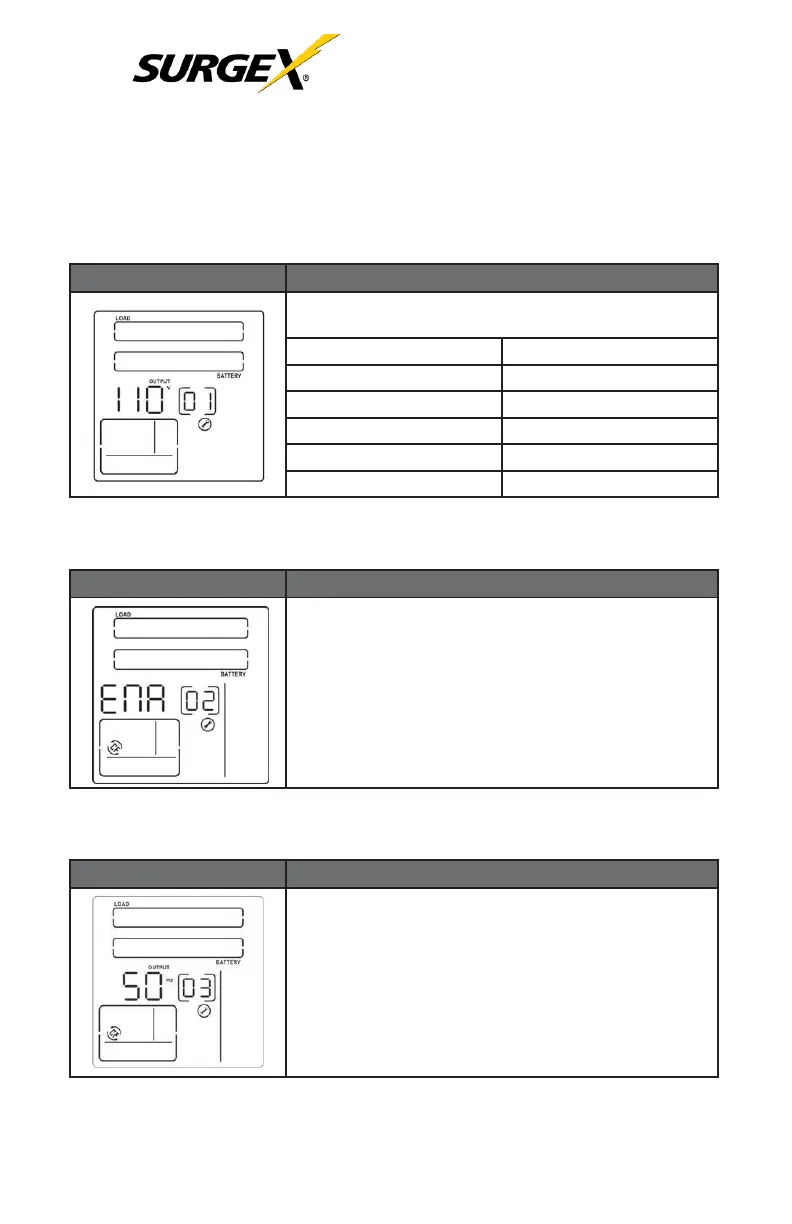

4.2.1 Output Voltage Setting (Item 01)
The following output voltage can be chosen for on-line mode
operation:
200: Output Voltage is 200VAC
100: Output Voltage is 100VAC
208: Output Voltage is 208VAC
110: Output Voltage is 110VAC
220: Output Voltage is 220VAC
115: Output Voltage is 115VAC
230: Output Voltage is 230VAC
120: Output Voltage is 120VAC
240: Output Voltage is 240VAC
4.2.2 Frequency Converter Enable/Disable (Item 02)
ENA: Frequency converter mode is enabled. When the
input frequency is at or between 40Hz to 70Hz the output
frequency will be constant and equal to the value (50 Hz
or 60Hz) chosen in section 1 and the output voltage will be
constant and equal to the value chosen in section 1. The
bypass will be disabled in this mode.
DIS: converter mode is disabled. The output frequency is
equal to the input frequency and the output voltage will be
equal to the value chosen in section 1.
4.2.3 Output Frequency Setting (Item 03)
You may set the initial frequency on battery mode:
50: output frequency is 50Hz
60: output frequency is 60Hz
If converter mode is enabled, the following output
frequency can be chosen:
50: output frequency is 50Hz
60: output frequency is 60Hz
