User Manual
_________________________________________________________________
© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / surgex.com 22

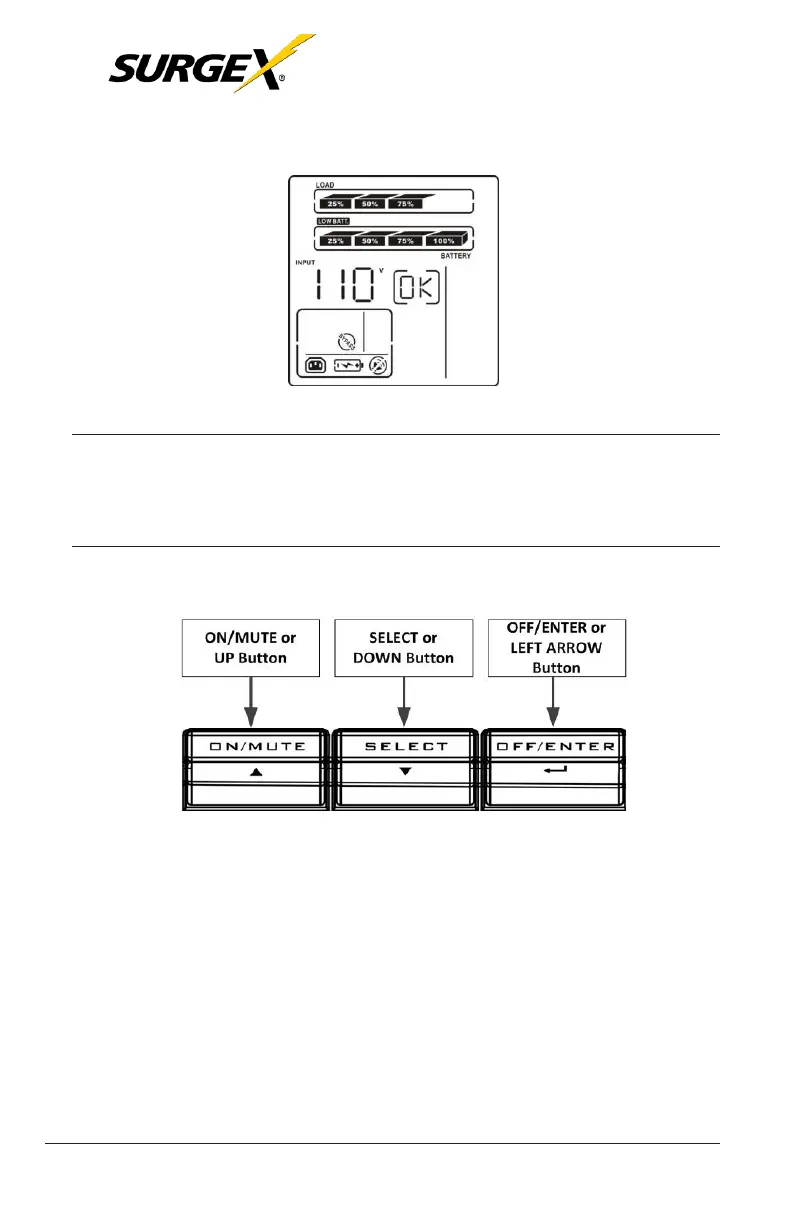

LCD Display in Bypass Mode
Rack Display
NOTE:
The LCD will display the actual input voltage in the input/output and
battery window.
1.
Press
and hold the “SELECT” button for at least five
seconds
to
enter the UPS setting mode.
2. Press the “UP” or the “DOWN” button to scroll thru all of the pa-
rameters itemized as (01, 02, 03, 06, 07, 08, 09, 10 and 11).
3. When you see the item of the parameter that you want changed
press the “LEFT ARROW” button. In the “Setting Operation”
window on the LCD display the item will blink depending on the
selected parameter.
4. Press the “UP” or the “DOWN” button to scroll thru all of the avail-
able settings for that parameter.
5. When you see the setting that you want for that parameter press
the “LEFT ARROW” button to choose that setting.
To Next Page
