User Manual
_________________________________________________________________
© 2019 AMETEK Electronic Systems Protection / Technical Support: 1-800-645-9721 / surgex.com 36

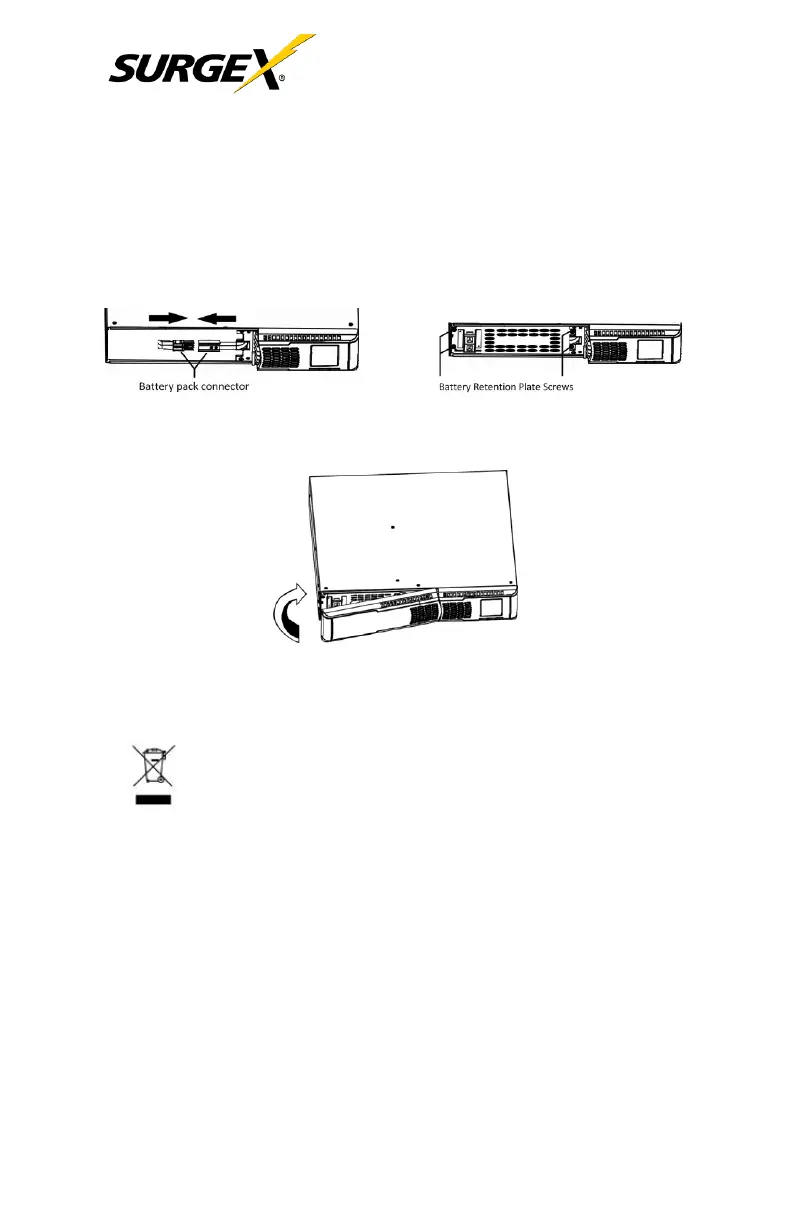

6. Reconnect the battery connectors. Use the tie wrap supplied with
the replacement battery kit to secure the two halves of the battery
connector together. Re-install the battery retention plate using the
screws removed
in step 3. Refer to the figures directly below
:
7. Align left plastic front cover and
snap
into
place.
Refer to the
figure
directly below :
8. Carefully pack used battery pack and send to authorized recycle
center.
Do not discard electrical waste or electronic equipment
(WEEE) in the trash. For proper disposal, contact your
local recycling/reuse or hazardous waste center.
