Front Panel Controls
1. ON / MUTE - UP KEY (Previous Selection)
2. SELECT - DOWN KEY (Next Selection)
3. OFF / ENTER - CONFIRM KEY

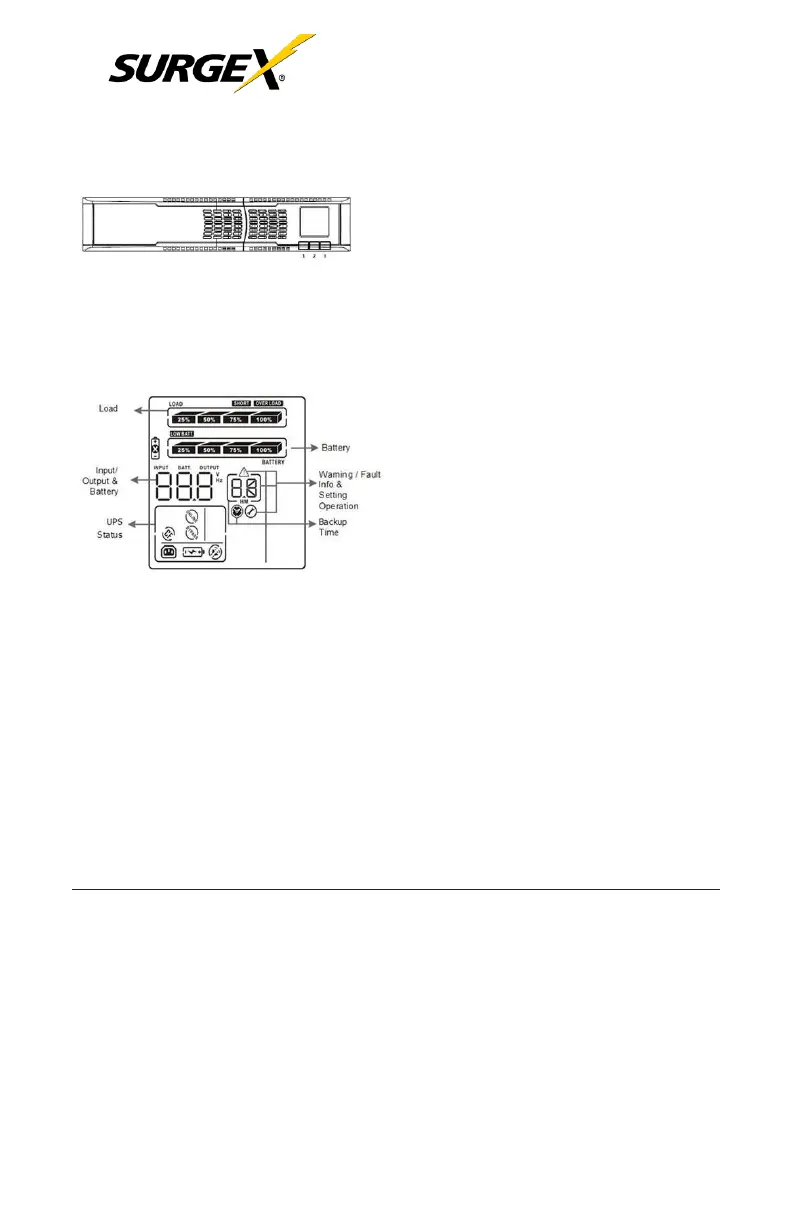

Front Panel Display
Rear Panel Information and Controls
• 6 Foot Detachable Line Cord with NEMA
L6-20P
• (2) IEC320-C13
• (2) IEC320-C13 Programmable
• (1) IEC320-C19 Direct
• USB & RS-232 Communication
• SNMP Adapter (Optionna)
• Internal Relay Contact Card (Optional)
• Circuit Breaker
Internal Batteries
• User Hot-Swappable (See Instruction Manual)
• Type - 12 V, 8.5 AH
• Quantity - 6 Batteries
• Recharge time - 12 Hours to 100%
Environmental
• Temperature:
0 to 40℃ (32 to 104℉)
Operating
-20 to 50℃R (-40 to 122℉)
Shipment,
Storage
• Humidity:
< 90% Non-Condensing (Operating,
Shipment, Storage)
• Altitude:
< 1000m Operating, No De-Rating
> 1000m De-Rate Output 1% per 100m
Safety Agency and EMC Compliance
All units are listed by UL, and marked with the
UL/cUL marking.
Product Listings
• UL1778
• cUL to CSA22.2 No.107.1
Product Compliances
• FCC Part 15J Class A
• IEC61000-4-2, Electrostatic Discharge
• IEC61000-4-3, Radiated Electromagnetic
Field Immunity
• IEC61000-4-4, Electrical Fast Transient/Burst
Immunity
• IEC61000-4-5, Surge Immunity
• IEC61000-4-6, CS
• IEC61000-4-8, Power Frequency Magnetic
Field
• IEC61000-2-2, Low Frequency Signal
• RoHS
