ADVANCED OPERATION
REVIEWING IMAGES
The Image Review tool allows you to review still images or play
video files from the USB drive or network connection. You may
also use this tool to rename or delete saved files.
1. Open the Toolbar and expand the Image Review tool .
2. The preview list displays thumbnail images for all
viewable files in the selected directory. (The top-level
USB directory is selected by default.) If there are no
viewable files in the directory, the preview area will be
empty.
Note: The File Type drop-down menu filters files by
type. By default, it is set to display all files with
.png, .tif, .jpg, .bmp, or .avi extensions.
3. If the image or video file you wish to review is not in the
directory displayed, click the Browse button to find
and open the desired directory.
4. Use the scroll bar as needed to search the preview
list for the desired file. Click the image to select it. The
selected file name appears orange .
5. Click the View File button to display the image in
the image review port . This button toggles between
View File and Hide File. Hiding the file closes the image
review port.
Note: Double-clicking the thumbnail image will also
toggle between displaying and hiding the file.
6. To zoom the image in the review port, double-click
the area of interest; right-click to restore normal
magnification. Refer to Using Digital Zoom (p.20) for
more detailed instructions.
7. To rename a file, select it and click the Rename button
10
.
The Virtual Keyboard will pop up. Enter the new file
name and click the Accept button
11
.
8. To delete a file, select it and click the Delete button
12
.
A confirmation dialog box will pop up. It is not possible
to recover a deleted file.

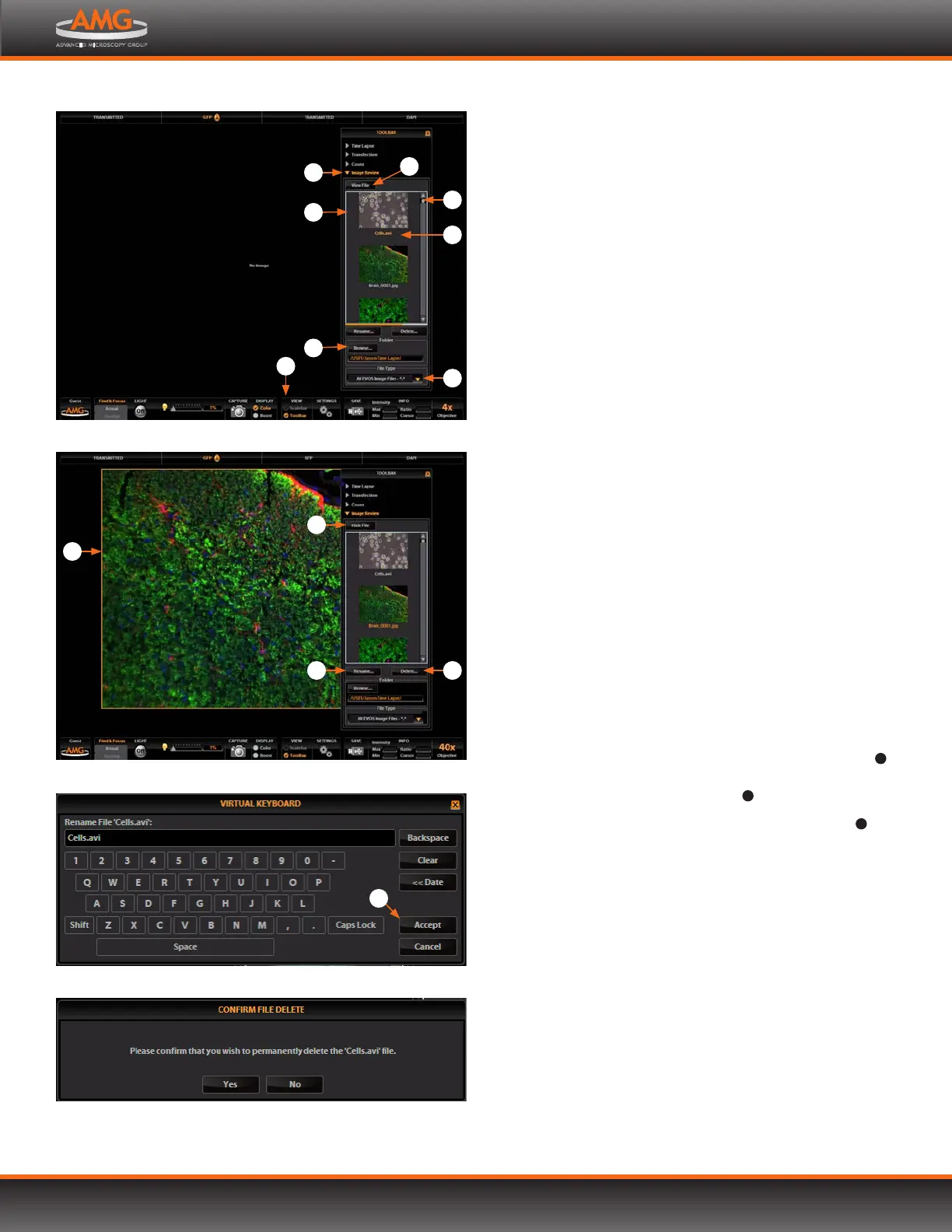

Image Review Tool: Find and select a file
1
2
3
6
4
5
7
8
Confirmation popup
Image Review Tool: View, rename or delete a file
8
9
10 12
Virtual keyboard
11
