ADVANCED OPERATION
USING DIGITAL ZOOM
EVOS can zoom the image onscreen, quickly allowing a closer
look. Simply double-click live or captured images to zoom
them. In the images below, the numbered arrows indicate click
points. Also note that the zoom factor display appears over the
selected objective display.
ZOOM AND RECENTER LIVE IMAGES
Note: Live images can only zoom to 2x. To zoom an image
at higher levels, you must first capture it.
1. Double-click the area of interest in the image
onscreen. EVOS will display a view zoomed 2x,
centered on the point clicked.
2. In the enlarged image, double-click on any point in
the middle area of the screen to recenter the image .
(EVOS will place points from the outer edges of the
screen as close to the center as possible.) You may
recenter repeatedly.
3. Right-click anywhere on the image to restore the view
to unzoomed magnification.
ZOOM CAPTURED IMAGES
1. Double-click the area of interest in the image
onscreen. A view zoomed 2x, centered on the point
clicked, will appear.
2. In the enlarged image, double-click again on any point
to double the digital zoom level. The enlarged image will
center around the point clicked.
3. Continue double-clicking to double the digital zoom
value as desired. It is possible to zoom in to the pixel
level of the digital image.
4. Right-click to restore the view to unzoomed
magnification.
Note: Capturing and saving a zoomed image will result
in a file showing the actual magnification, not the
zoomed magnification. If the scalebar is active, it will
appear in the file.

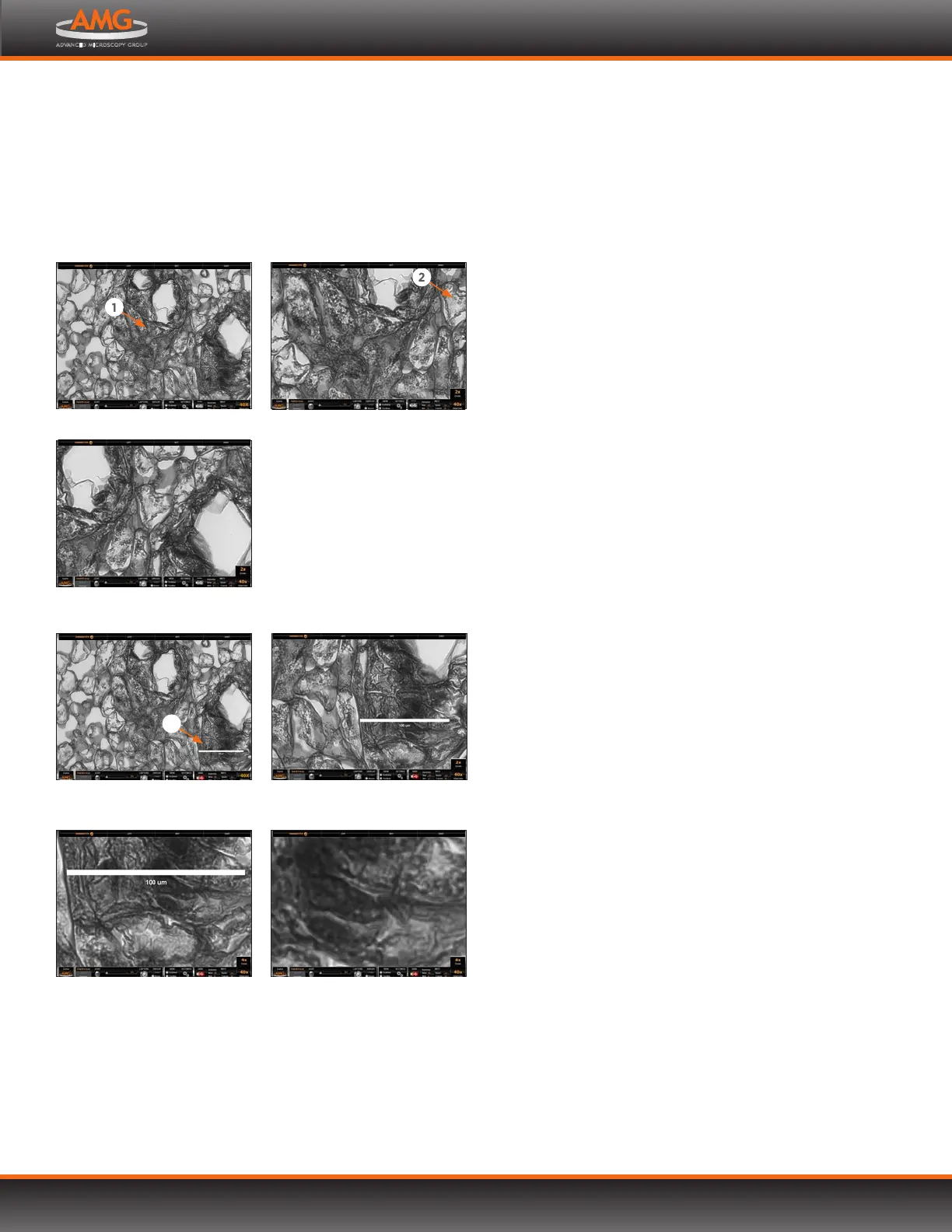

Captured 40x image zoomed 2xCaptured image at 40x
magnification, with scalebar
3
Image recentered
Live 40x image zoomed 2xLive image at 40x magnification
Captured 40x image zoomed 4x Captured 40x image zoomed 8x
1
2
