User Guide
REV B Published 20 SEP 2010

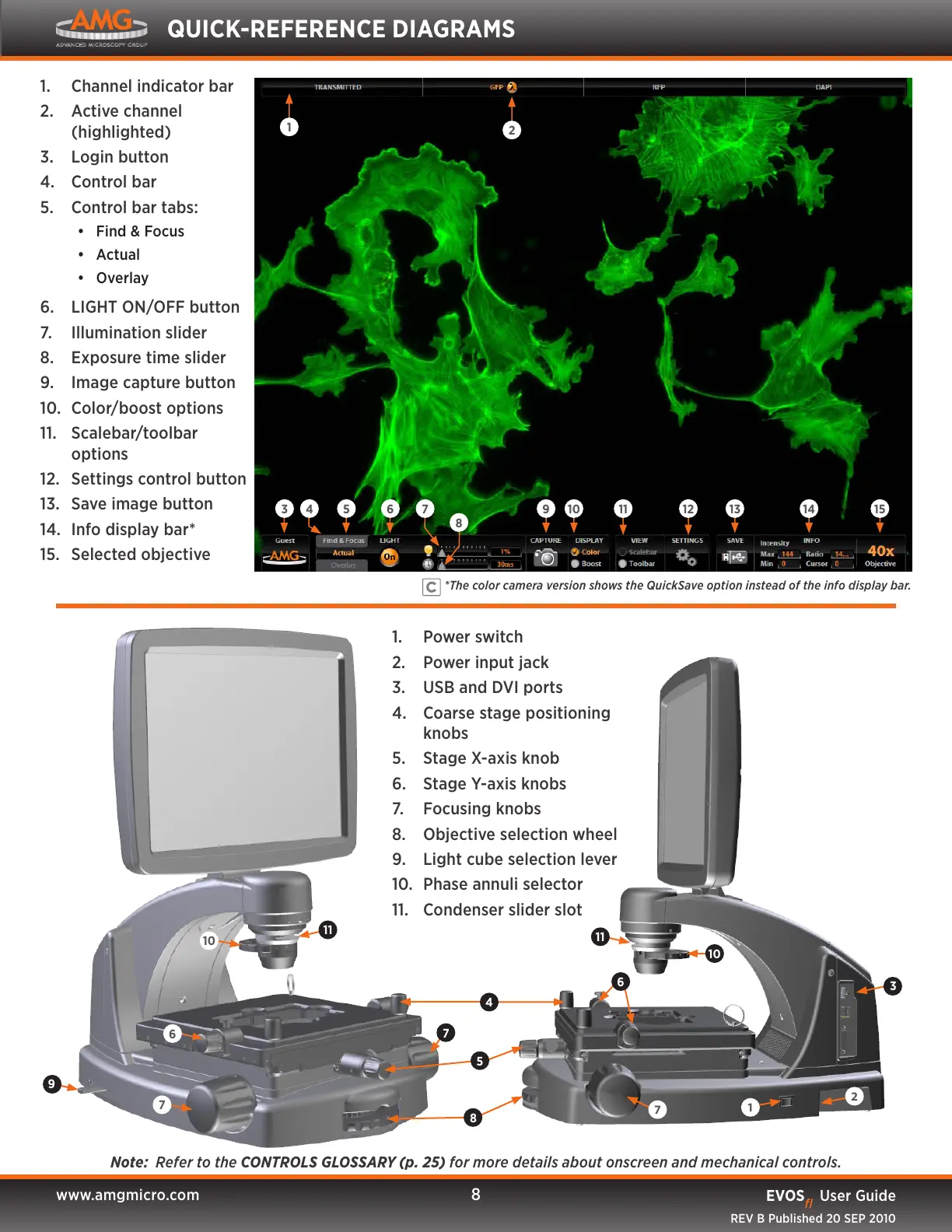

QUICK-REFERENCE DIAGRAMS
Note: Refer to the CONTROLS GLOSSARY (p.25) for more details about onscreen and mechanical controls.
1. Channel indicator bar
2. Active channel
(highlighted)
3. Login button
4. Control bar
5. Control bar tabs:
đƫ Find & Focus
đƫ Actual
đƫ Overlay
6. LIGHT ON/OFF button
7. Illumination slider
8. Exposure time slider
9. Image capture button
10. Color/boost options
11. Scalebar/toolbar
options
12. Settings control button
13. Save image button
14. Info display bar*
15. Selected objective
1
8
54 6 9 10 1311 14127 15
2
6
7
9
1. Power switch
2. Power input jack
3. USB and DVI ports
4. Coarse stage positioning
knobs
5. Stage X-axis knob
6. Stage Y-axis knobs
7. Focusing knobs
8. Objective selection wheel
9. Light cube selection lever
10. Phase annuli selector
11. Condenser slider slot
3
6
7
8
5
7
1
4
10
10
11
11
3
*The color camera version shows the QuickSave option instead of the info display bar.
