www.amgmicro.com 4
EVOS
fl
User Guide
REV B Published 20 SEP 2010
SETUP

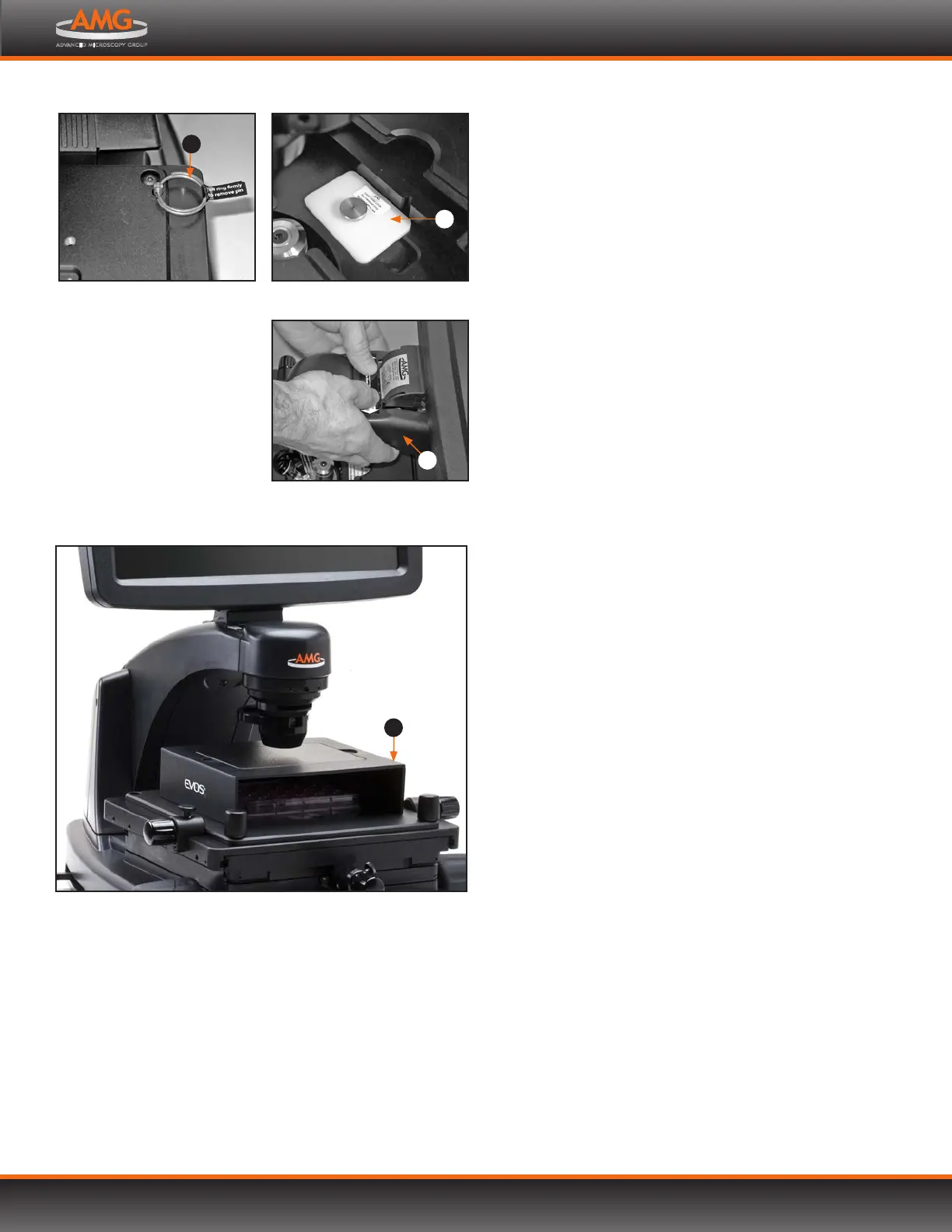

MOVING/TRANSPORTING EVOS
ALWAYS lock stage with the stage lock pin before
moving microscope.
When transporting or shipping EVOS
fl
, secure the LED
light cubes in place with the light cube lock .
Lift the microscope by grasping it firmly with both
hands under the support arm , balancing the weight
as shown at left.
To transport EVOS to a dierent facility, use the original
packaging materials if possible. Always be sure the
microscope is properly cushioned and braced to prevent
damage.
IMPORTANT! Never allow EVOS to be subjected to
sudden impact or excessive vibration. Handle the
microscope with care to prevent damage.
OPERATING ENVIRONMENT
Place the microscope on a level surface away from
vibrations from other pieces of equipment.
Allow at least 5 cm (2 in) free space at the back of the
microscope to allow for proper ventilation and prevent
overheating of electronic components.
Set up EVOS away from direct light sources, such as
windows. Ambient room lighting can enter the imaging
path and aect the image.
Note: Place the light shield box on the stage over
the sample to reduce the eects of ambient
light and improve image quality.
Operating temperature range: 4°–32°C (40°–90°F).
Relative humidity range: 30–90%.
IMPORTANT! Never subject EVOS to UV sterilization.
UV degrades many materials, including plastic.
Damage from UV exposure is not covered under the
manufacturer’s warranty.
MECHANICAL STAGE
STAGE LOCK PIN
Before moving the mechanical stage for the first time,
remove the stage lock pin from the back right-hand
corner of the stage plate. Pull firmly to remove this pin.
You may store the stage lock pin in your accessories box
for future use.
Note: Always secure the mechanical stage with the stage
lock pin before moving the microscope.
Grasp under support arm
with both hands to lift EVOS
3
Light shield box on stage
4
Stage lock pin engaged
1
Light cube lock engaged
2
