Symbol Parameter (Clock
41.7MHz)
Min Max Unit
tCLCH Clock Rise Time (-
peak to peak)
0.1 V/ns
tCHCL Clock Fall Time (-
peak to peak)
0.1 V/ns
tSLCH CS# Active Setup
Time (relative to
SCLK)
4 - ns
tCHSH CS# Active Hold
Time (relative to
SCLK)
4 - ns
tDVCH Data In Setup Time 2 - ns
tCHDX Data In Hold Time 3 - ns
tSHQZ Output Disable Time
(relative to CS#)
8 ns
tCLQV Clock Low to Output
Valid
6 ns
tCLQX Output Hold Time 1 ns
5.7.6 Ethernet Timing Specification

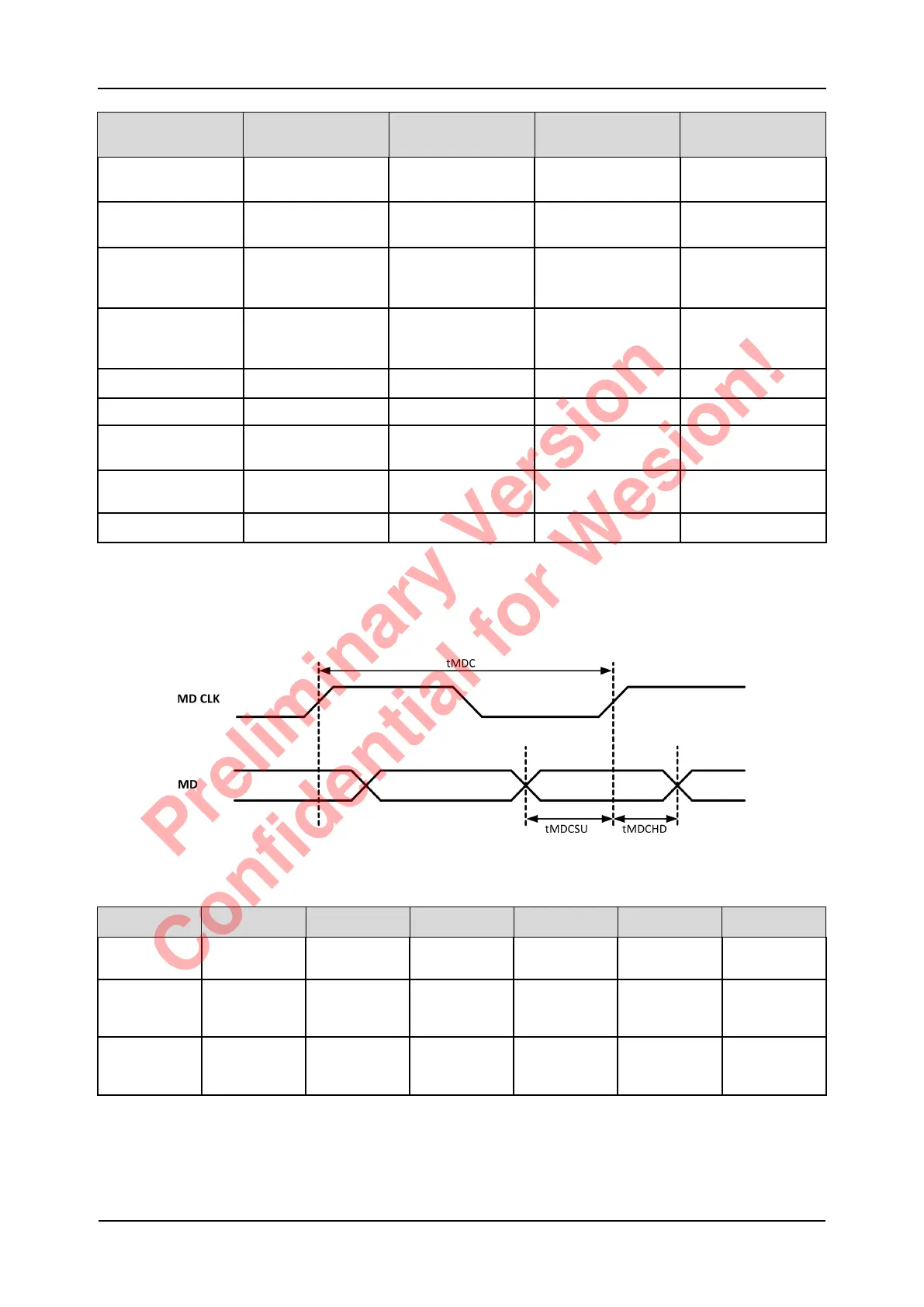

Figure 5-14 Management Data Timing Diagram
Table 5-11 Management Data Timing Specification
Symbol Description Min. Typ. Max. Unit Notes
tMDC MDC clock
Period
400 500 ns From MAC
tMDCSU Setup time to
rising edge of
MDC
10 ns
tMDCHD Hold time to
rising edge of
MDC
10 ns
