Symbol Description Min. Typ. Max Unit Notes
TXD & TX_
EN setup time
to rising edge
of RGMII
clock (clock
delay added)
-0.9 ns From PHY
tOHD RXD & DV
hold time to
rising edge of
RGMII clock
(no clock de-
lay added)
0.8 ns From PHY
RXD & DV
hold time to
rising edge of
RGMII clock
(clock delay
added)
2.7 ns From PHY
5.7.7 Audio Timing Specification
There are two modes for the audio I2S/TDM interface: Master mode and Slave mode, as shown
below.

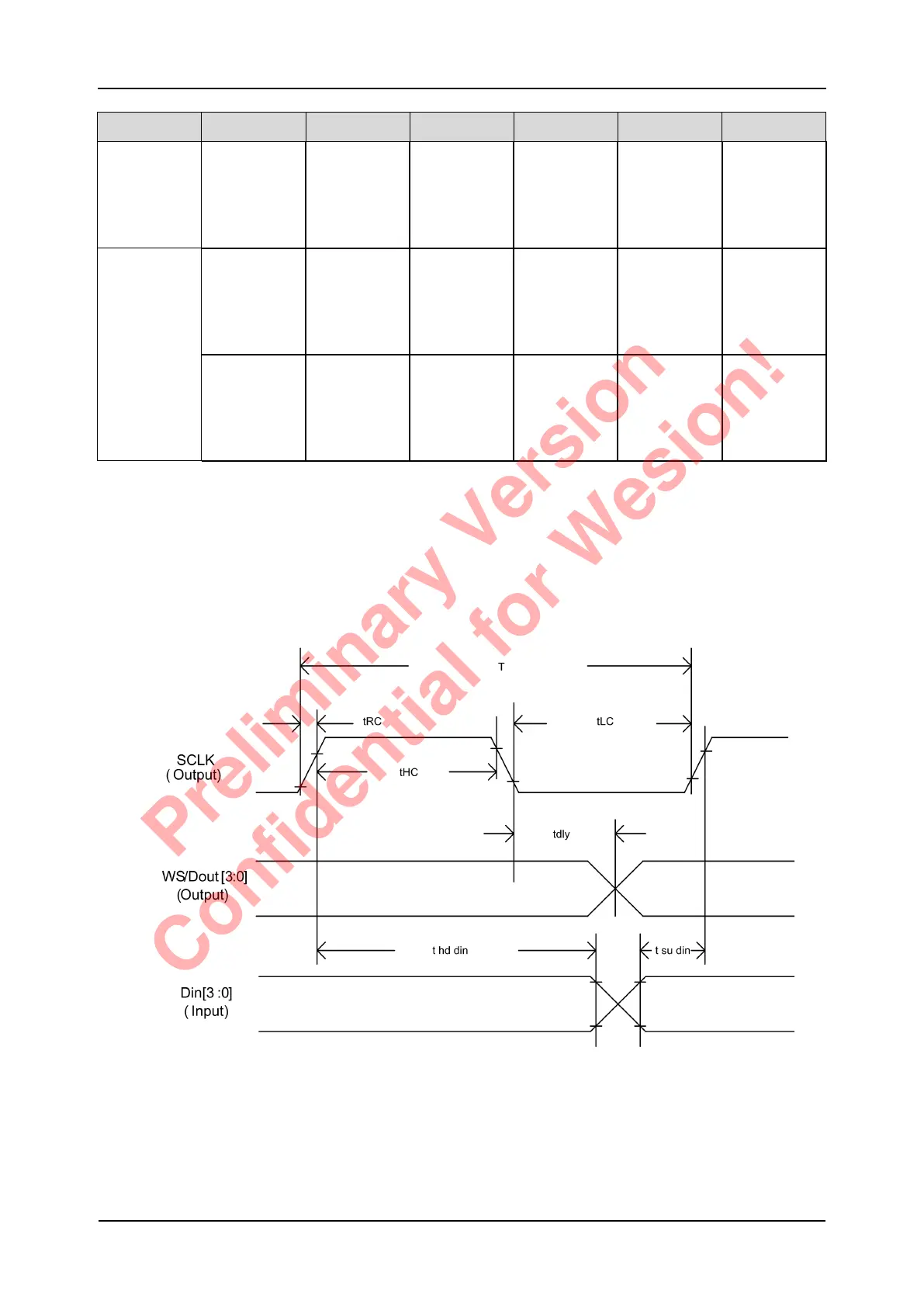

Figure 5-18 I2S/TDM Timing Diagram, Master Mode
S905D3 Quick Reference Manual 5 Operating Conditions
