The fourth screen: Display algebraic sum of
imp and exp energy Ep_net.
As in fig 3.20, Ep_net=8.8Kwh.
Press E key, go to the fifth screen.
The fifth screen: Display inductive reactive
energy Eq_imp.
As in fig 3.21, Eq_imp=15.2Kvarh
Press E key, go to the sixth screen.
The sixth screen: Display the capacitive
reactive energy Eq_exp.
As in fig 3.22, Eq_exp=0.0Kvarh.
Press E key, go to the seventh screen.
39

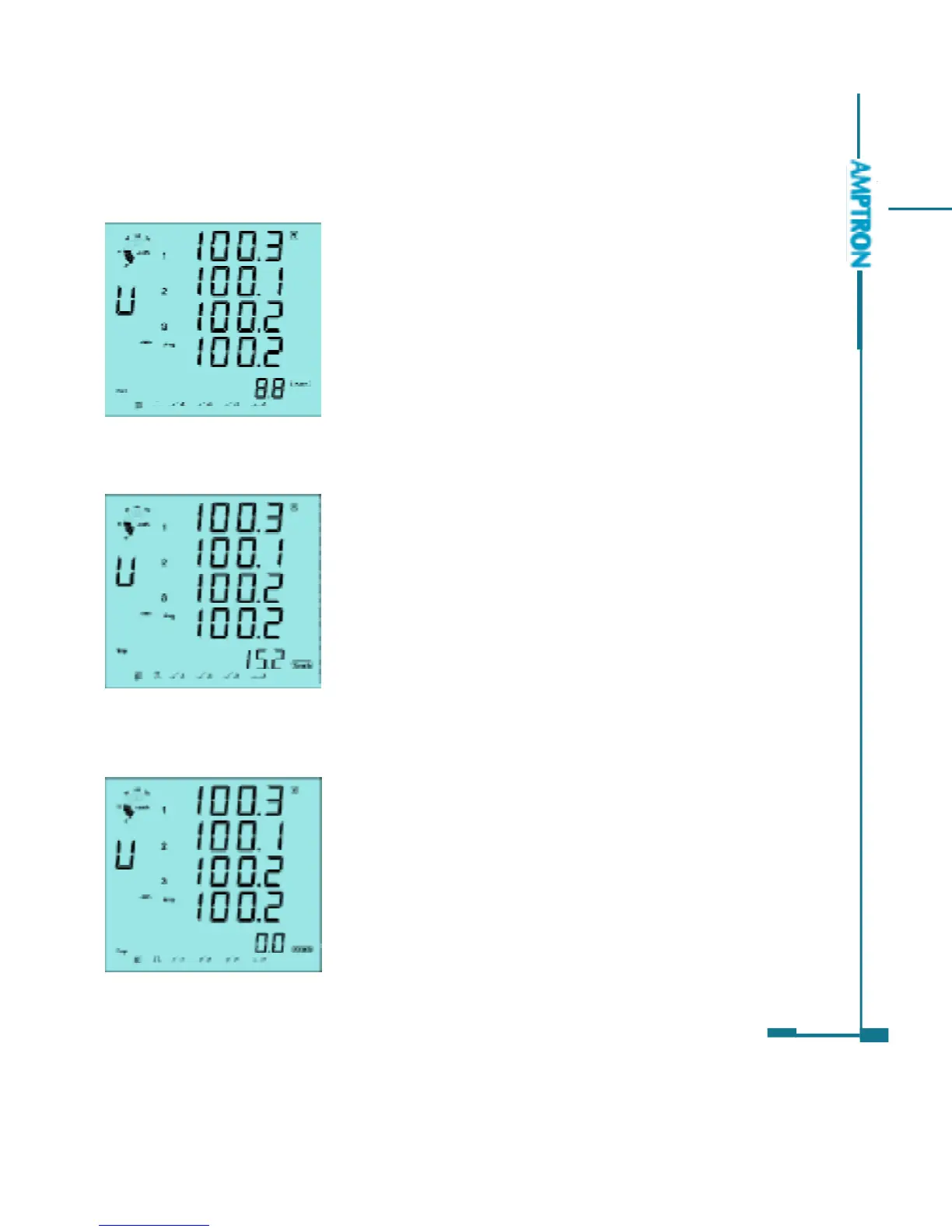

Fig 3.20 Net energy
Fig 3.21 Inducfive reactive energy
Fig 3.22 Capacitive reactive energy
