The seventh screen: display absolute sum of
the reactive energy Eq_total.
As in fig 3.22, Eq_total=15.2Kvarh.
Press E key, go to the eighth screen.
The eighth screen: Display algebraic sum of
reactive energy.
As in fig 3.24, Eq_net=15.2Kvarh.
Press E key, go to the ninth screen.
The ninth screen: Display date. Format: mm:
dd:yyyy
As in fig 3.25, the date is Jan. 18, 2002.
Press E key, go to the tenth screen.
40

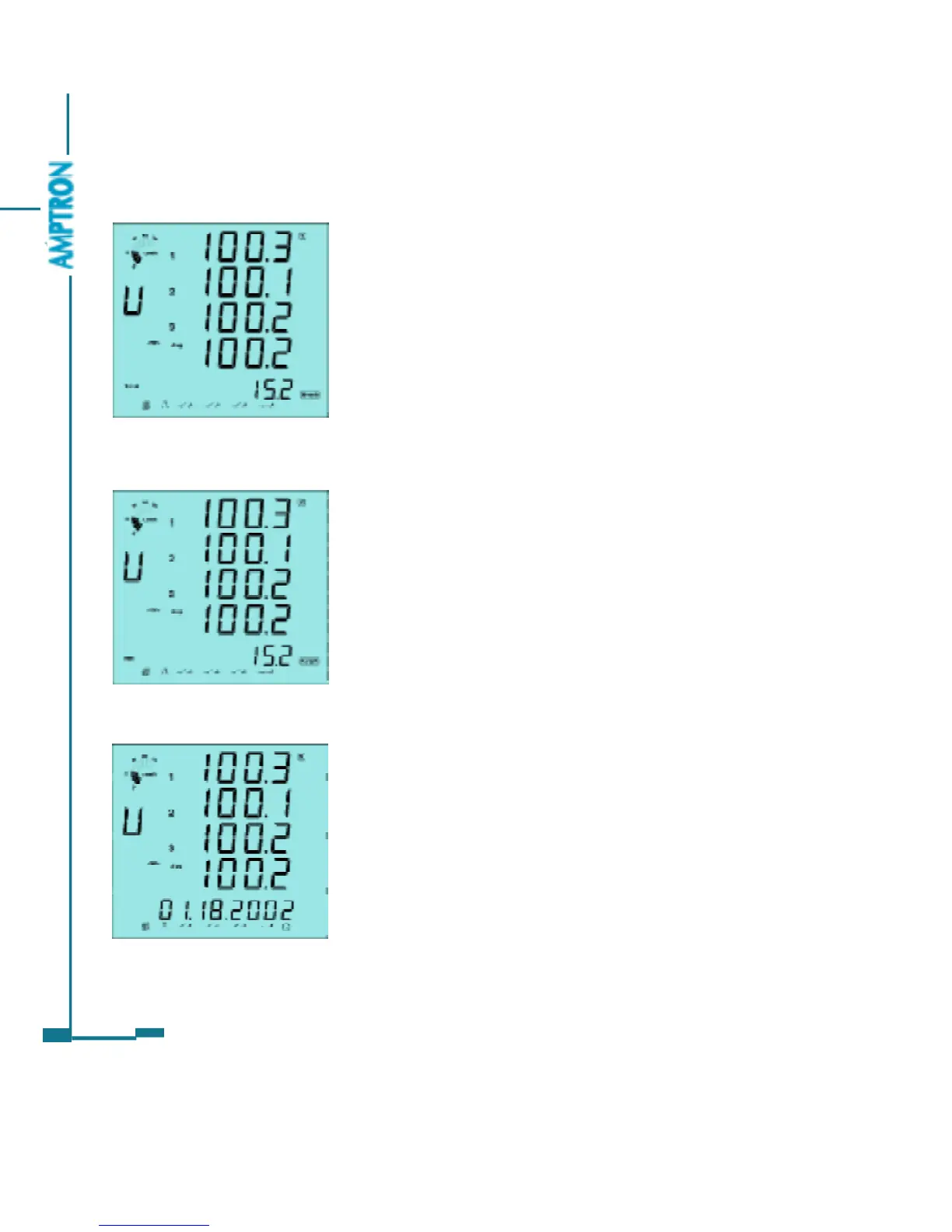

Fig 3.23 Total reactive energy
Fig 3.24 Net reactive energy
Fig 3.25 Date
