AMX DAS-T0804-SIG User Manual

Installation
12
Tango Series Audio Controllers
Connecting Zone Outputs
Tango Controllers can be accessed by SWT Metreau keypads (DAS-MET6SRC and DAS-MET-NUM)
to provide basic transport control, source selection and volume up and down, as well as enhanced
controls including direct access capability, favorite’s source selection, zone grouping, alarm clock
setting, and Keypad lockout.
SWT Connectors
SWT cabling follows a specific pinout configuration that is labelled on the Tango Controller, Metreau
keypads, and other Matrix devices, as shown in FIG. 5.

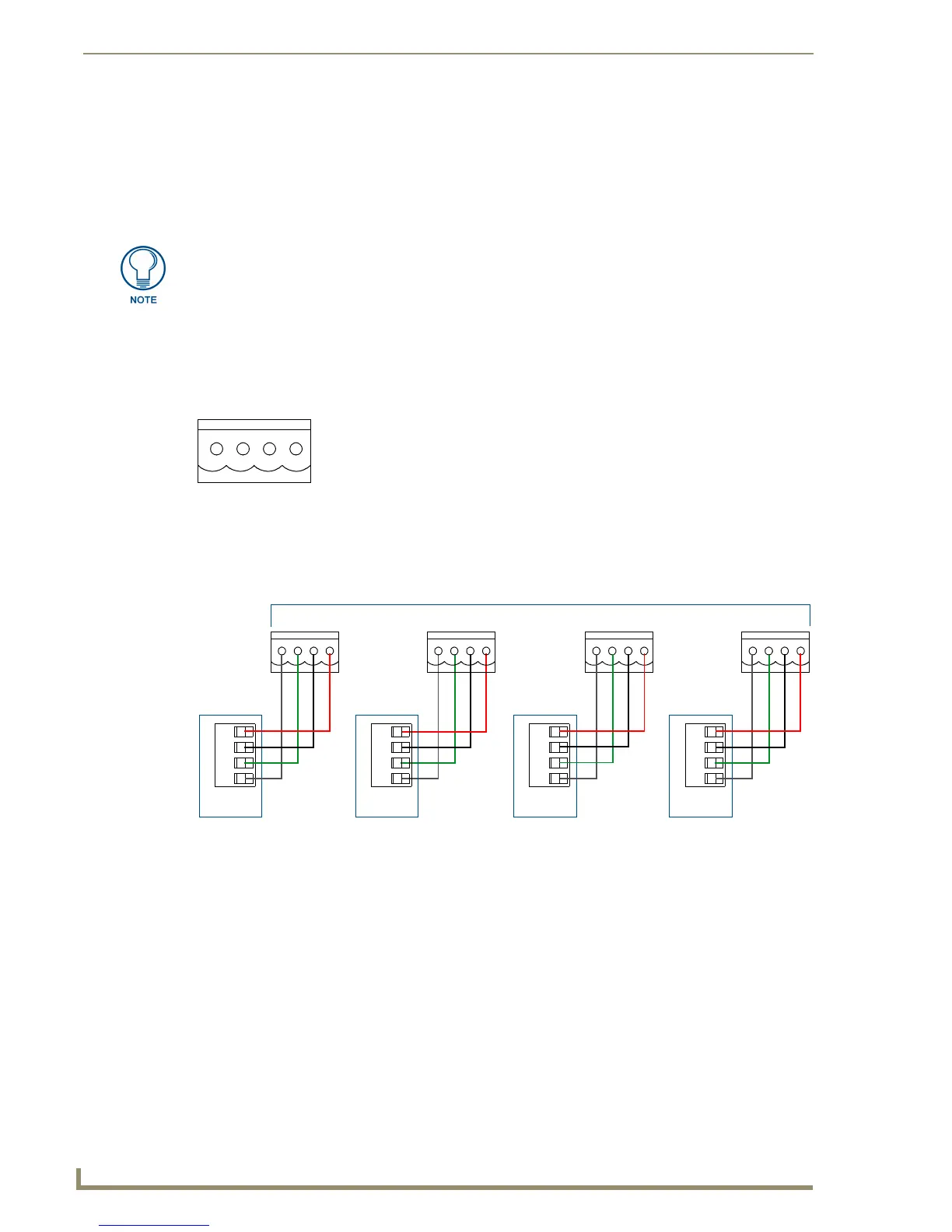

Connecting SWT Keypads to the Tango Controller
Metreau keypads connect to the 4-pin connectors labelled Zone 1, 2, 3 etc. on the rear panel (FIG. 6):
The Matrix Numeric (DAS-KP series) and LCD Keypads (DAS-KP-LCD series) are
also supported by Tango Controllers.
FIG. 5 SWT pinout configuration
FIG. 6 Connecting Zone Outputs
LDGR
L = Left audio channel (+)
D = Data / Power (+)
G = Ground (-) - also provides return for L/R Audio
R = Right audio channel (+)
LDGR
R
G
D
L
TO CONTROLLER
Zone 1
SWT Keypad
LDGR
R
G
D
L
TO CONTROLLER
Zone 2
SWT Keypad
LDGR
R
G
D
L
TO CONTROLLER
Zone 3
SWT Keypad
LDG
R
R
G
D
L
TO CONTROLLER
Zone 4
SWT Keypad
Zone Outputs on Tango Audio Controller
