AMX DAS-T0804-SIG User Manual

System Integration Drawings
32
Tango Series Audio Controllers
Split Zone / Analog Volume Control (Option 2) Two Keypads
In this case, two keypads are shown (FIG. 21). Please note this does not truly split the zone, but provides
controls in two areas of the same zone. If one Keypad selects a different source or changes the volume,
the change in source and volume will in both of the common zone changes.
Multiple Keypads in Zone
Certain situations such as large rooms or rooms with more than one common entrance may require more
than one keypad control to conveniently manage the zone. This configuration allows for 2 Keypads to be
placed on the control circuit (FIG. 22).

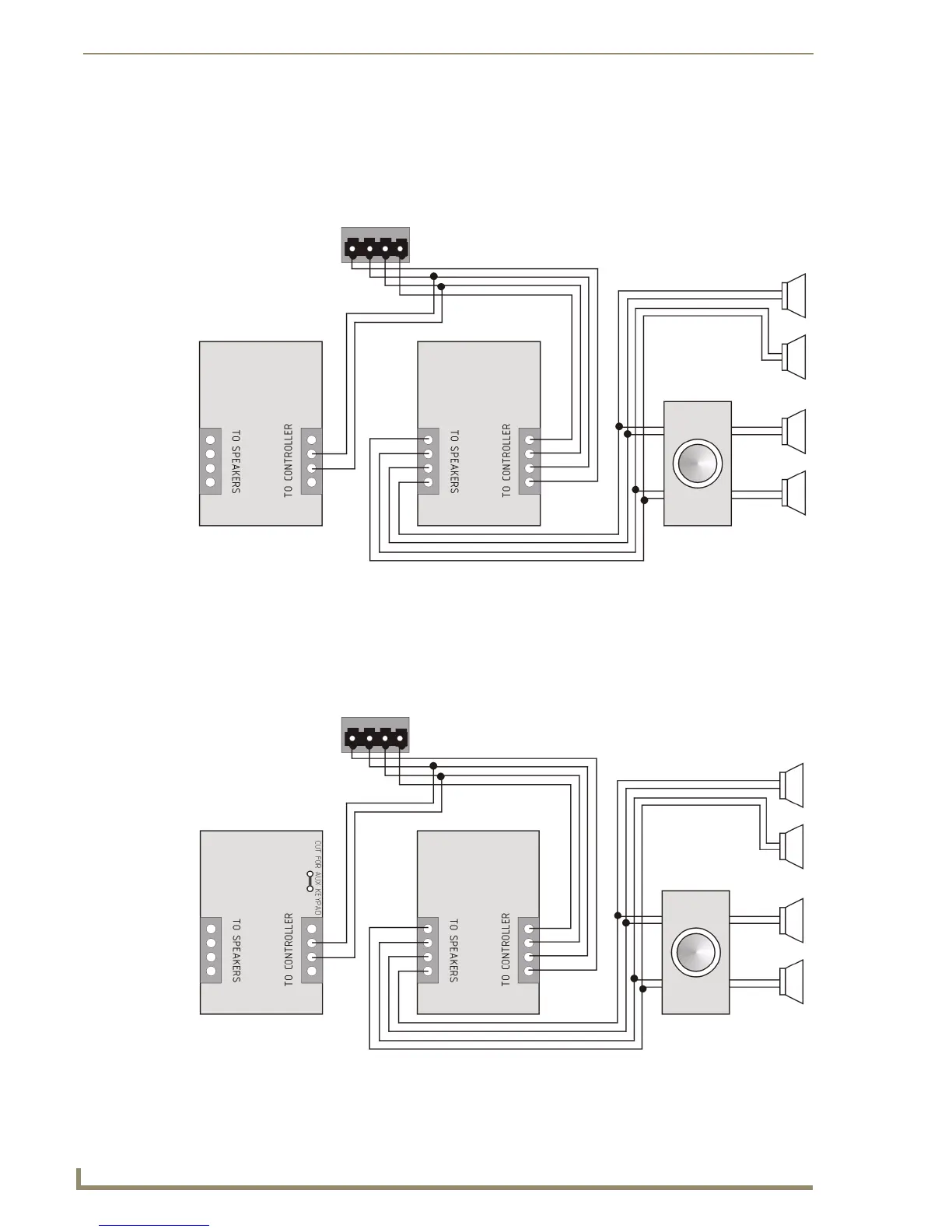

FIG. 21 Split Zone / Analog Volume control (Option 3) Two Keypads
FIG. 22 Multiple Keypads in Zone
Right
Left
Volume Control
KP Series
LDGR
Zone Output Connector
(on Tango Controller)
Right
Left
PRIMARY
KP Series
SECONDARY
Right
Left
Volume Control
KP Series
LDGR
Zone Output Connector
(on Tango Controller)
Right
Left
PRIMARY
KP Series
SECONDARY
