Tango Series Audio Controllers

Connecting a Tango Amplifier

Tango Amplifiers provide extra output power for up to 4 additional speaker pairs driven from one zone.

 The DAS-TAMP4-SIG Tango 4-Channel Amplifier (FG1103-21) is a 4-channel amp that

supports an additional 2 speaker pairs per unit.

 The DAS-TAMP8-SIG Tango 8-Channel Amplifier (FG1103-22) is an 8-channel amp that

supports an additional 4 speakers pairs per unit.

Connect the Tango Amplifier to the Audio Controller via the 4-pin connector labelled “From

Controller” on the rear panel of the Controller. FIG. 12 illustrates the connections between the Tango

Audio Controller and Amplifier:

Refer to the Tango 4/8 Channel Amplifiers Installation Guide for details.

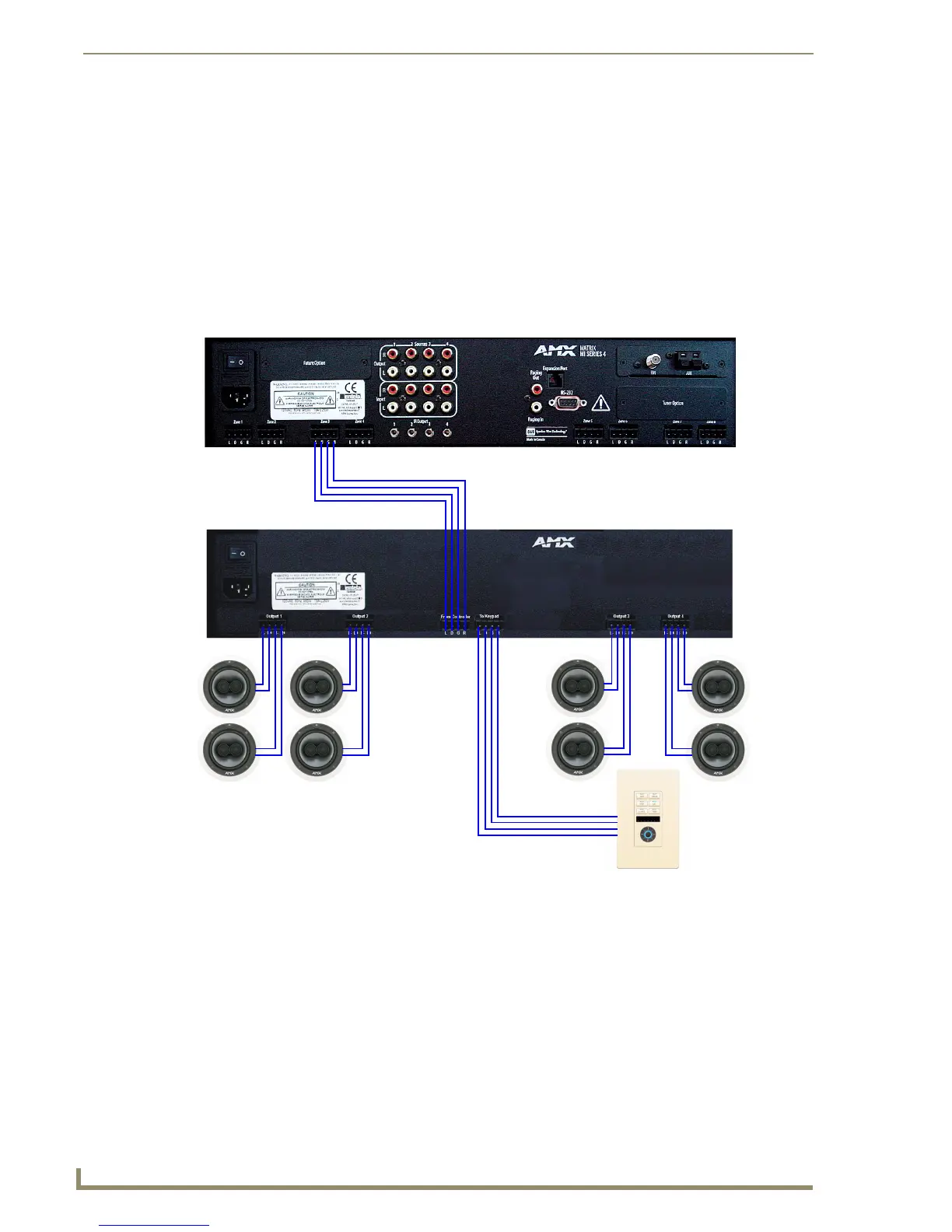

FIG. 12 Wiring Diagram

Tango Audio Controller

Tango Amplifier

DAS-MET-6SRC
