3. Click the Communications Settings button to open the Communications Settings dialog box.
4. Click the NetLinx Master radio button (from the Platform Selection section).
5. Click the Virtual Master radio button (from the Transport Connection Option section).
6. Click the Edit Settings button to open the Virtual NetLinx Master Settings dialog (FIG. 23).
7. Enter the System number (default is 1).
8. Click OK to close all open dialogs and save your settings.
9. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System.
10. Right-click on Empty Device Tree/System and select Refresh System to re-populate the list.
The Mio R-4 will not appear as a device below the virtual system number (in the Online Tree tab) until both the
system number (default = 1) is entered into the Master Connection section of the System Settings page and the Mio
R-4 is restarted.
The Connection status turns green after a few seconds to indicate an active USB connection to the PC (Virtual
Master).
If the System Connection icon does not turn green, check the USB connection and communication settings
and refresh the system.

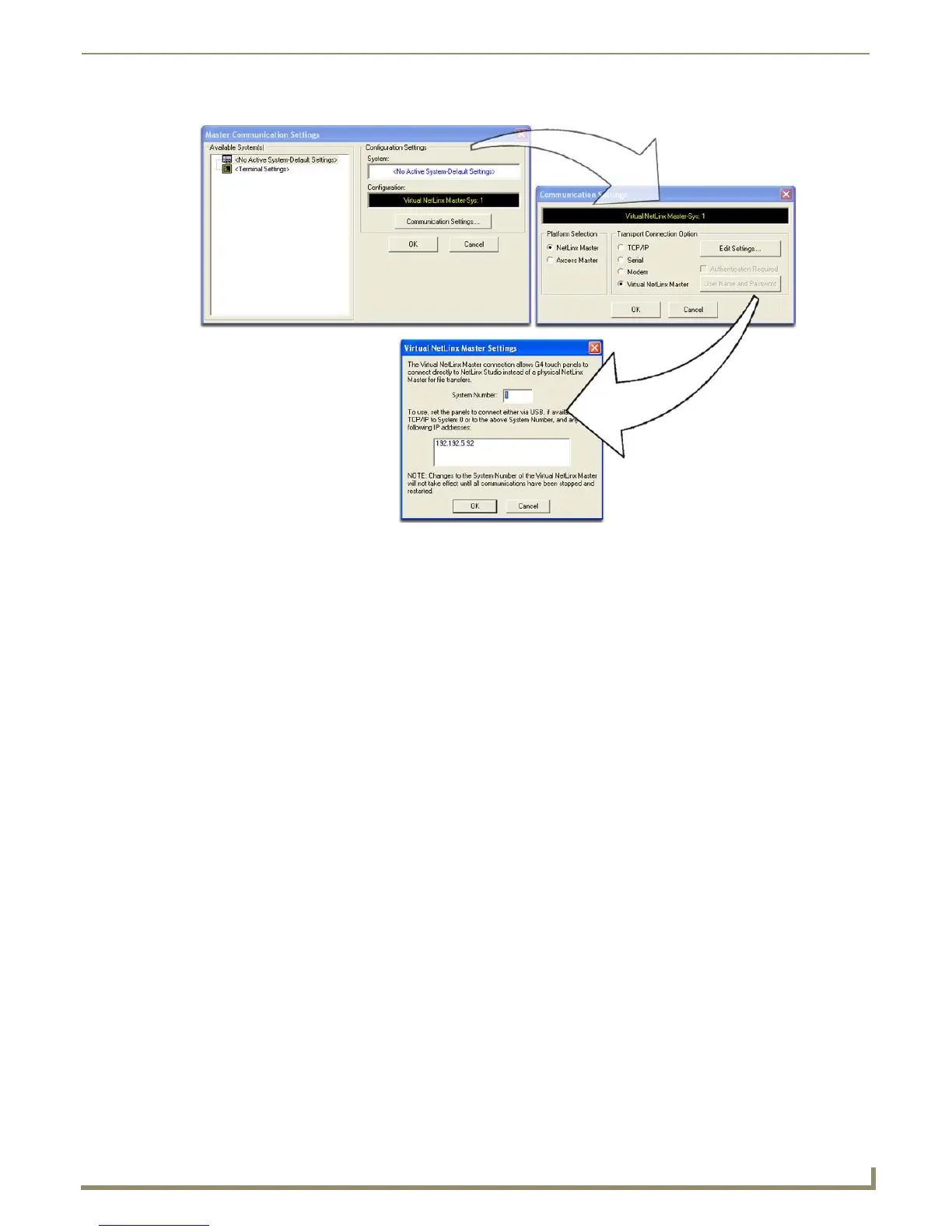

FIG. 23 Assigning Communication Settings for a Virtual Master
(not needed as this is a direct
USB connection)
IP Address of computer

AMX MIO-R4 Specifications

General

Flash memory	32 MB
RAM capacity	64 MB
Certification	FCC, IC, CE, IEC 60950, Japan Approval
Maximum range	30 m
Frequency band	2.4 GHz
Languages support	ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, GRE, HUN, ITA, JPN, KOR, POR, RUS, THA
Number of devices supported	2
Interface	IR Wireless
Input type	Press buttons
Hard buttons	Yes
Product color	Black
Buttons quantity	29
Remote control proper use	-
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Package weight	25 g

Weight and Dimensions

Depth	19 mm
Width	51 mm
Height	240 mm
Weight	20 g
