NI-3101-SIG Signature Series NetLinx Integrated Controller

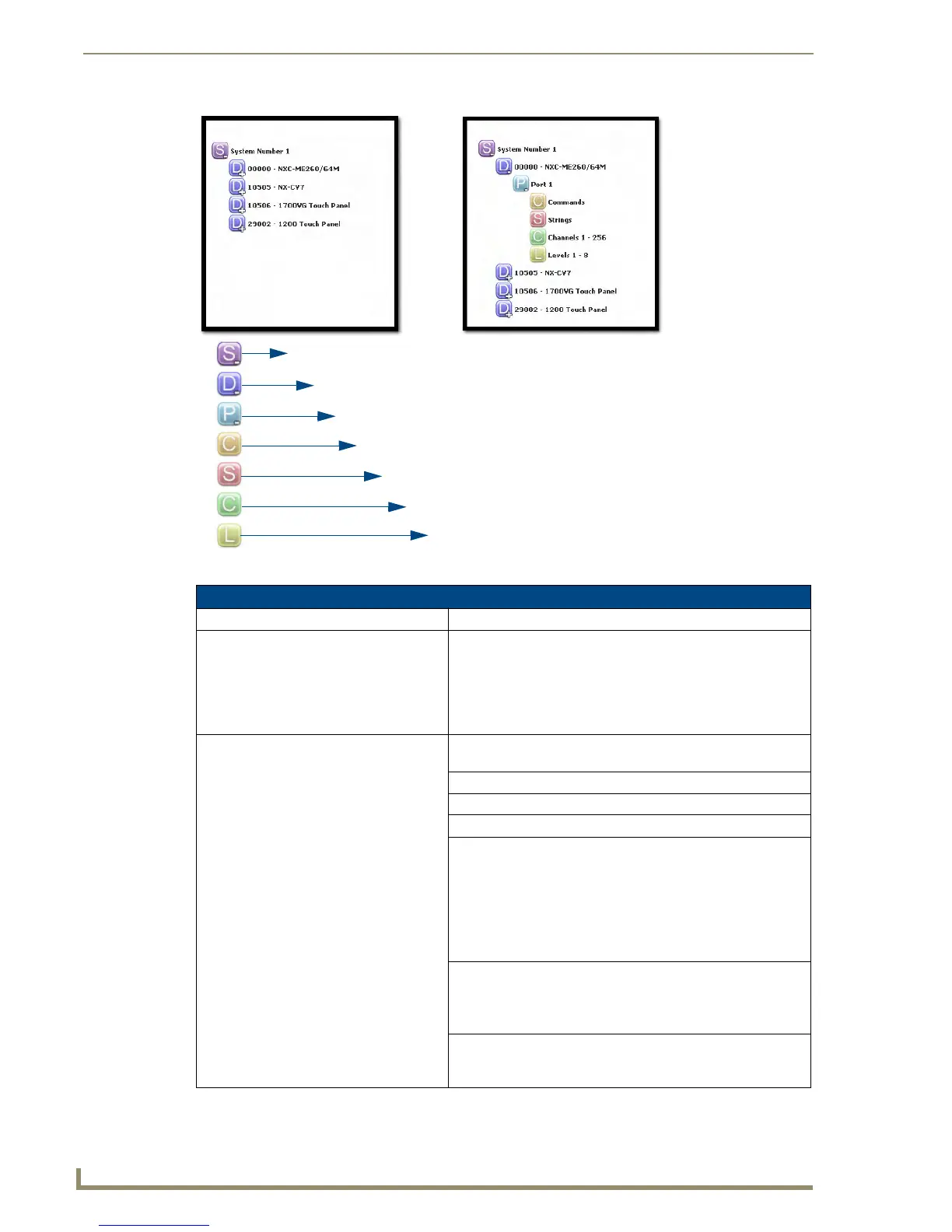

FIG. 42 System - Online Tree frame
Manage System Page Components (Cont.)
Feature Description
Management menu options: These management buttons change depending on the source
chosen from the Online Tree.
• There are three menu groupings available:
- System Menu (to configure Master properties).
- Device Menu (to configure device specific properties).
- Port Menu (to configure specific Port settings).
System menu buttons: The selected system number is displayed below these menu
buttons.
Modify Date/Time • Allows a user to set the date and time on the target Master.
System Number • Allows a user to change the current system number (value).
Reboot • Allows a user to reboot the target Master.
Control/Emulate • Allows a user to both control and emulate devices on a target
Master.
• This is done by allowing the user to control a device’s channels,
levels, and send both send commands and strings to the target
device.
• This button is available from within all Management
menus.
Diagnostics • Allows a user to watch the system activity to/from a selected
device.
• This button is available from within all Management
menus.
Server • Allows a user to both change the port numbers (used for
various Web services) and configure the SSL settings used on
the Master.
System Number (purple)
Devices (violet)
Ports (blue)
Commands (orange)
Strings (red)
Channels (green)
Levels (yellow)
