©2023 Analog Devices, Inc. All rights reserved.
18
MAXREFDES106# Health Sensor Platform 4.0
Orientation of the USB-C 7-Lead Electrode Cable to the
MAXREFDES106#
After the MAXREFDES106# battery is charged, disconnect the USB-C cable.
The orientation of the USB-C 7-electrode ECG, BioZ snap cable to the MAXREFDES106# IS VERY
IMPORTANT. The USB symbol on the USB-C 7-lead electrode cable must be visible when viewing the
MAXREFDES106# from the top. Plug the USB-C 7-lead electrode cable into the MAXREFDES106#, as
shown in Figure 21.

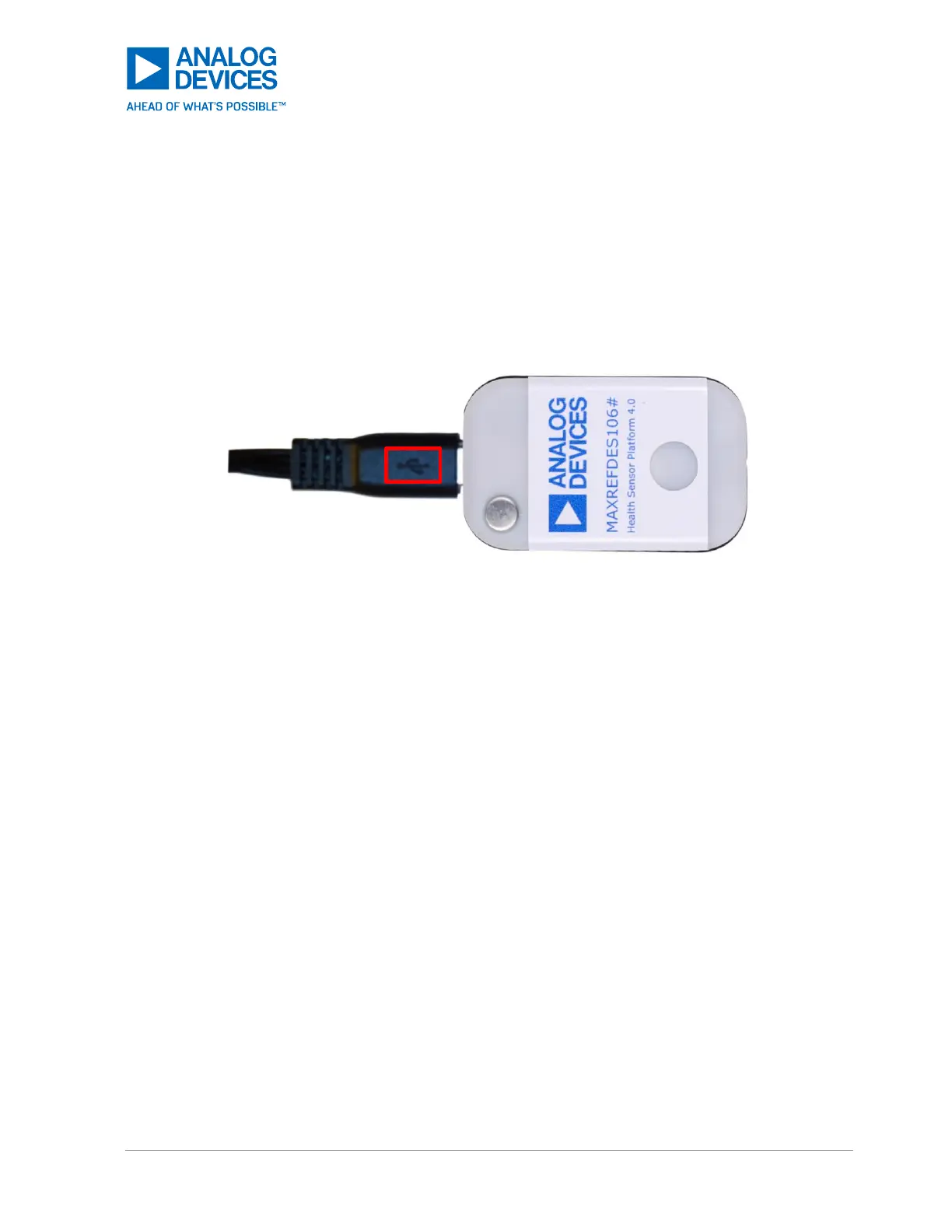

Figure 21. Orientation of the USB-C 7-Lead Electrode to the MAXREFDES106#
