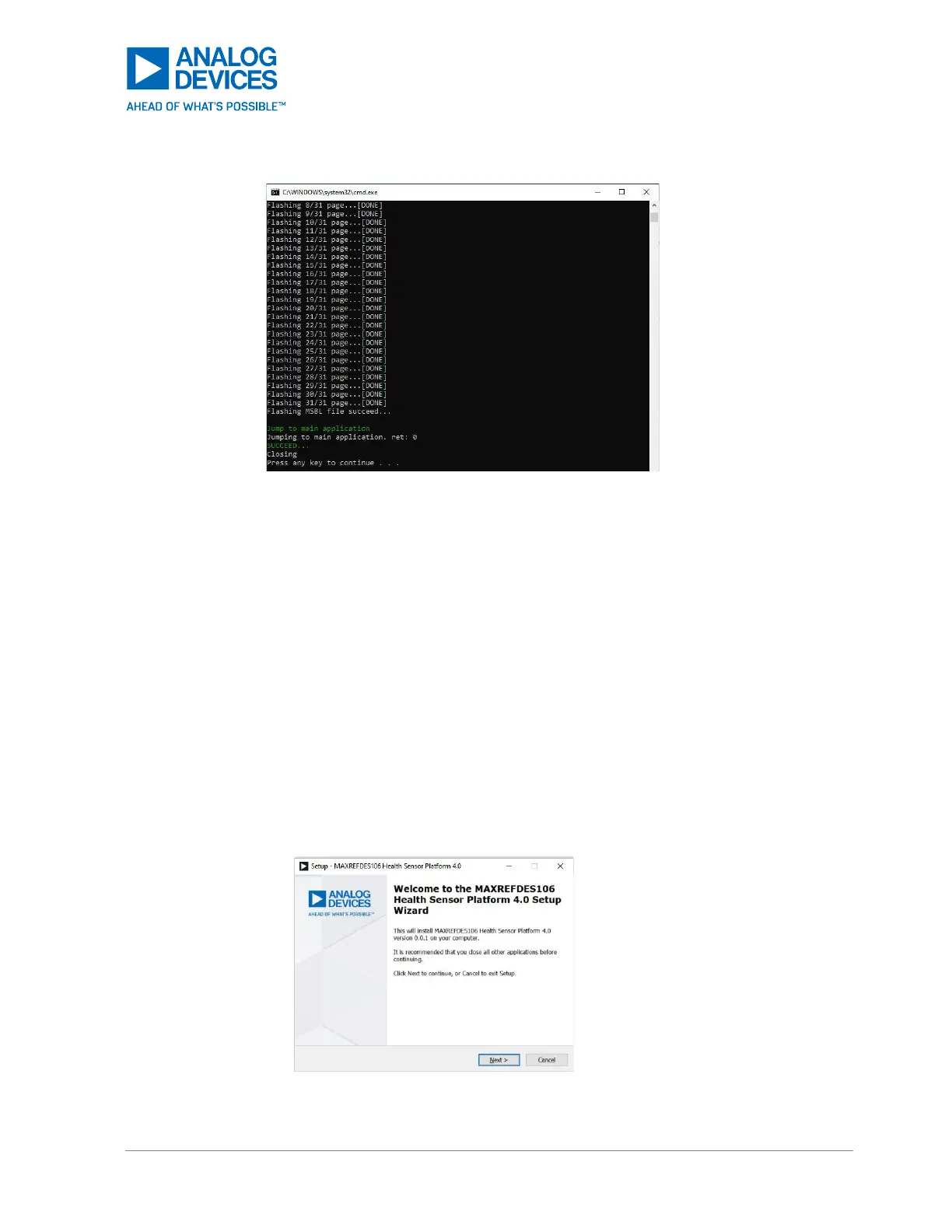

Figure 10. Flashing the .msbl to the MAX32674C
Optional: If the .msbl flashing has FAILED, then disconnect the USB-C cable and power down the device
by holding the push button on the MAXREFDES106# for at least 13 seconds. Then, repeat the
procedures, starting with step 1.
The MAX32674C Algo Hub Microcontroller Coprocessor is now updated to the latest firmware!
Installing the MAXREFDES106# Health Sensor Platform PC GUI
1. Uninstall any previously installed versions of the MAXREFDES106# Health Sensor Platform
PC GUI.
2. Download and extract the ‘Evaluation Package’ from the Analog Devices website for the
MAXREFDES106#.
Note: The software package includes the latest firmware .bin, algorithm .msbl, and the
corresponding PC GUI Microsoft Windows application .exe. All three must be updated to
ensure compatibility.
3. Double click the MAXREFDES106Setup_x.y.z.exe file. Click Next > to go to the first four
pop-ups.
Figure 11. PC GUI Welcome
