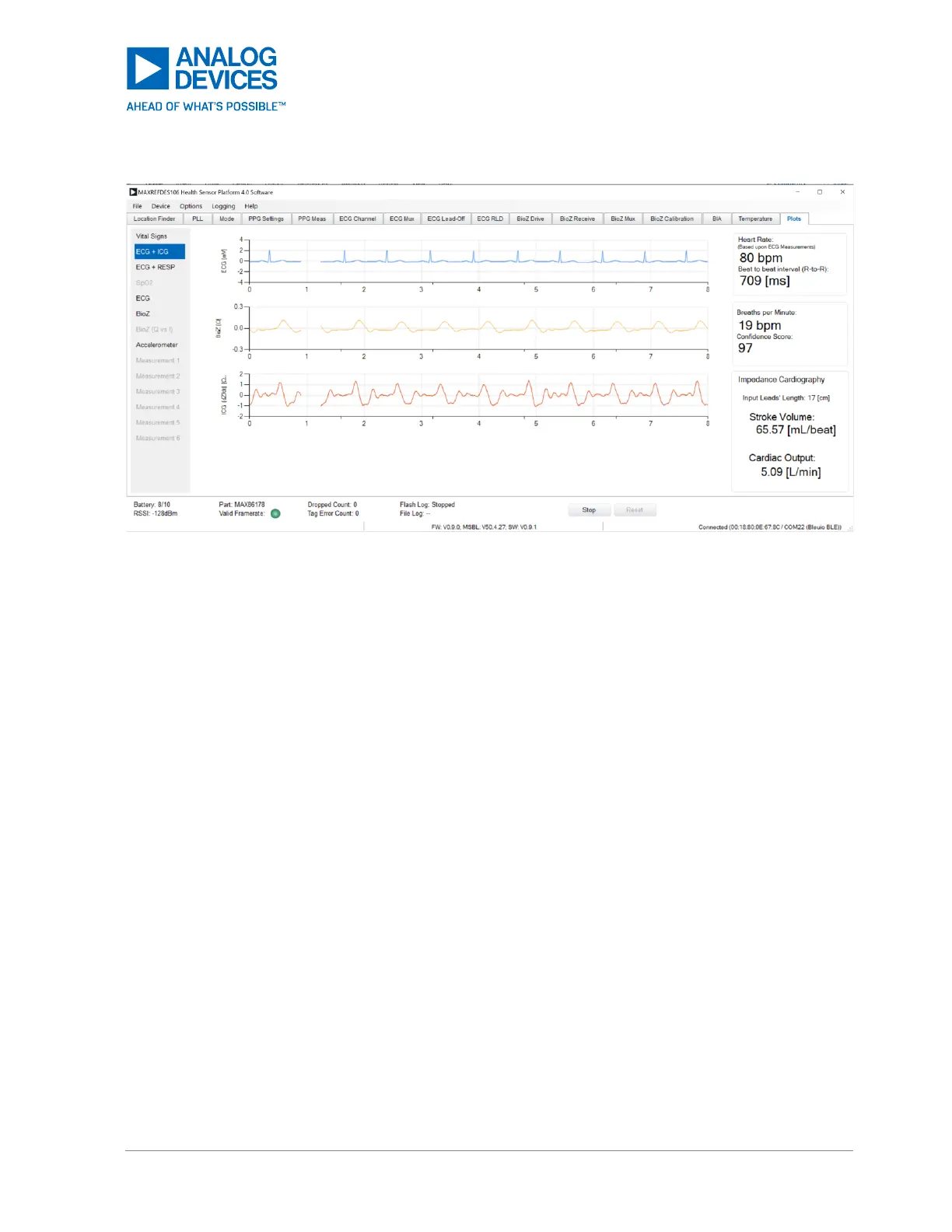

Figure 39. Example ICG Plot Tab
Bio-impedance Analysis (BIA)
The following section discusses how to enable the BIA algorithm output as well as fundamentals of the
algorithm setup.
Associated Tab
The tab for configuring the BIA algorithm is the BIA tab.
Minimum Settings
• BIA: Go to the BIA tab and first select the type of units of measurement (metric or imperial).
o Then, input personal information (height, weight, age, and gender) into the ‘Bioelectrical
Impedance Analysis Inputs’ window.
o Click ‘Calibrate’, and when it has finished calibrating, press ‘Start Measurement’ and hold
still until the measurement is done.
o BIA outputs display in the ‘Bioelectrical Impedance Analysis Outputs’ window.
• All other settings should be left as their power-on default settings.
