Heart Rate (HR)
The following section discusses how to enable the HR algorithm output as well as fundamentals of the
algorithm setup.
Associated Tabs
The tabs for configuring the HR algorithm are the Mode, ECG Mux, ECG Lead-Off, and ECG RLD tabs.
The HR algorithm operates on ECG input data, but only supports 512Hz sampling rate.
Minimum Settings
The following settings satisfy the minimum requirements for collecting HR algorithm data. The rest of the
settings can be configured further but can also be left at their power-on defaults. The HR algorithm uses
the default ECG settings.
Mode: Select ECG in ‘Quick Configuration’ window.
Once ECG in ‘Quick Configuration’ is selected, the rest of the settings can be configured at their power-
on defaults.
ECG Channel: Keep power-on default settings.

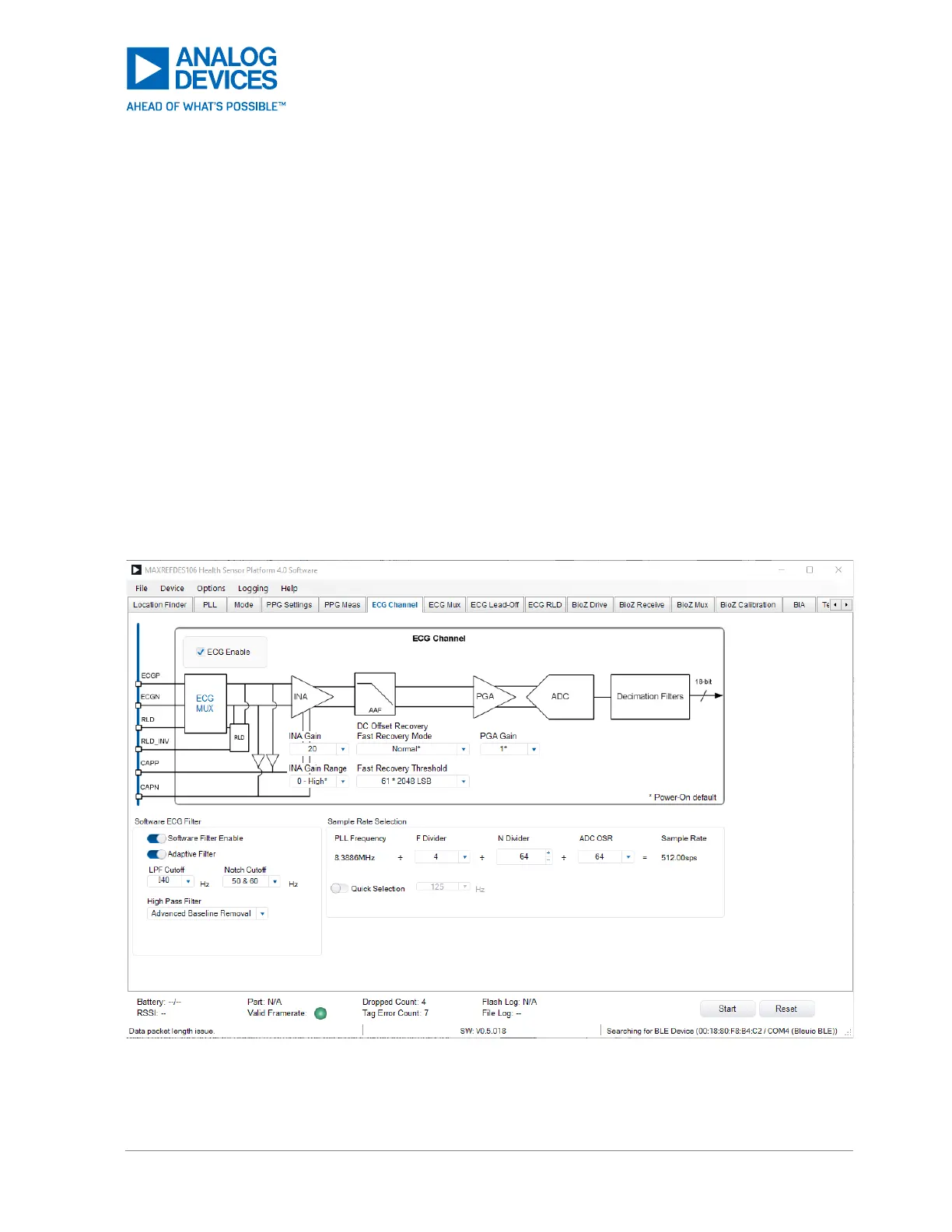

Figure 42. ECG Channel Tab: Use Power-On Default Settings
