Starting and Stopping a Measurement

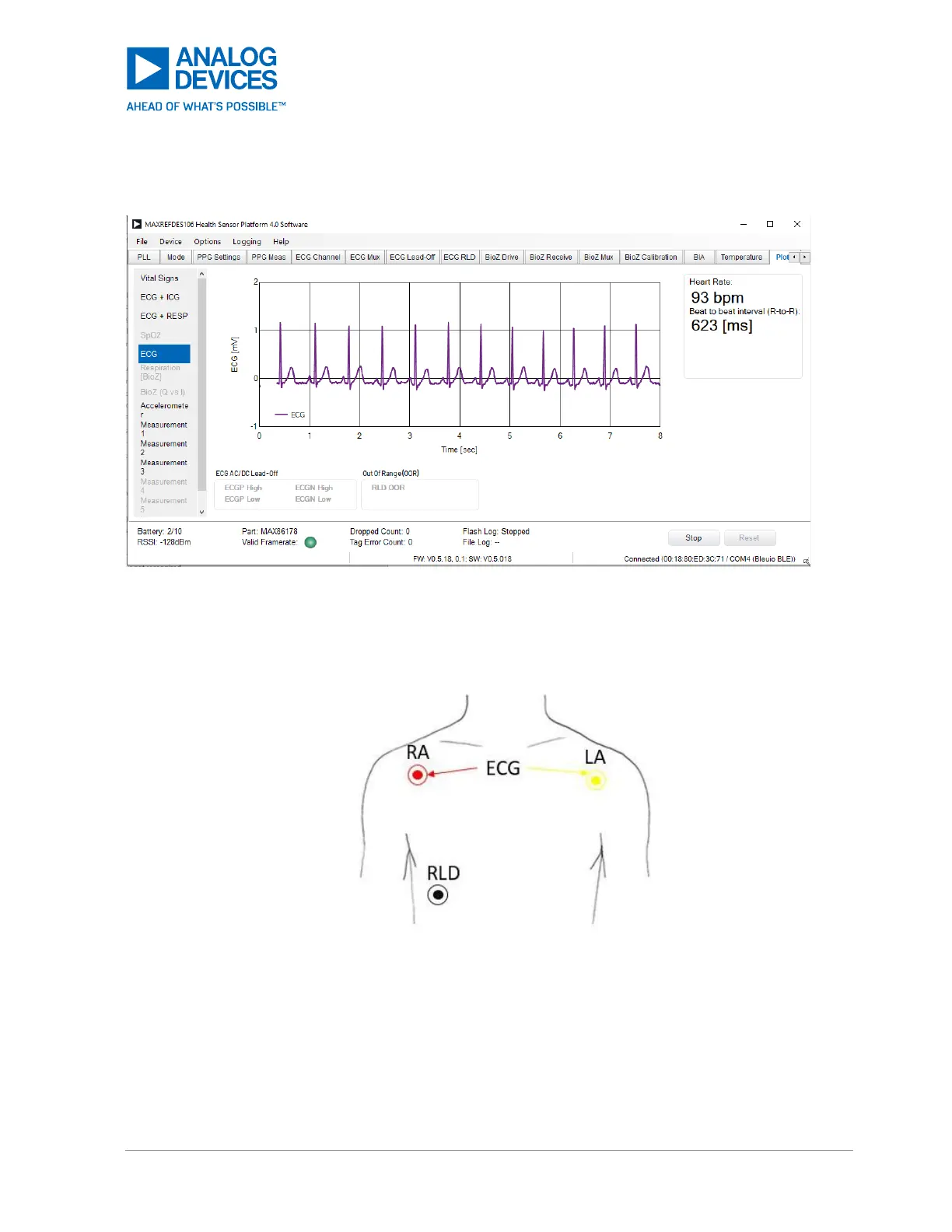

Figure 26. Example ECG Measurement Output
Ensure the patch is placed securely on the chest, powered on, and connected to the GUI.
Ensure the RA, LA, and RLD electrodes are placed securely, as shown in Figure 27.
Figure 27. ECG Electrodes: RA (Red), LA (Yellow), RLD (Black)
Ensure the minimum settings requirements, listed above, are met.
Start a measurement by clicking Start. ECG data is drawn to the Plots tab. Stop an active
ECG measurement by clicking Stop.
ECG measurement can be simultaneously enabled alongside the PPG and Bio-Z measurements.
