Analog Devices MAXREFDES106# User Manual

©2023 Analog Devices, Inc. All rights reserved.
25
MAXREFDES106# Health Sensor Platform 4.0
Starting and Stopping a Measurement

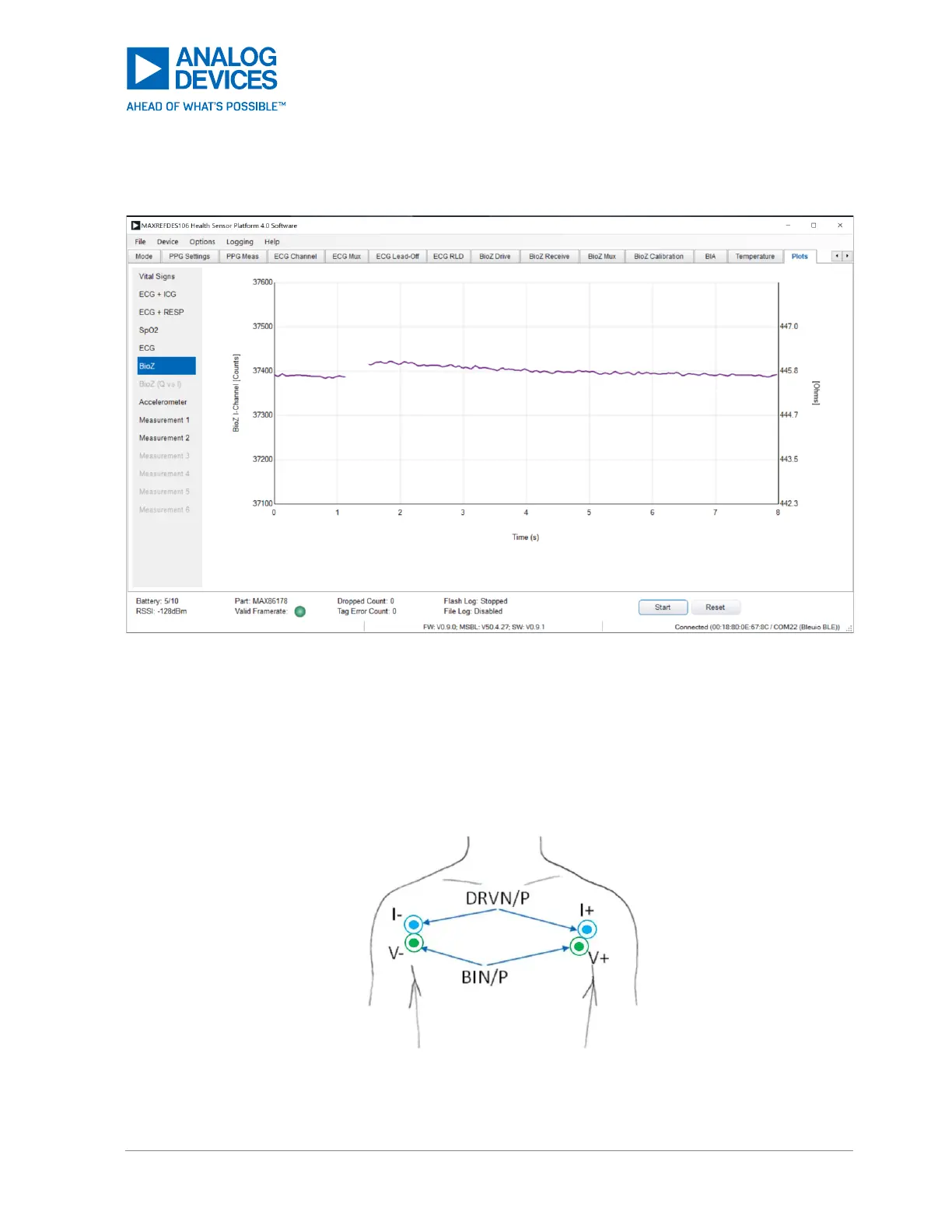

Figure 28. Example BioZ Measurement Output
 Ensure the patch is placed securely on the chest, powered on, and connected to GUI.
 Ensure the minimum settings requirements, listed above, are met.
 Start a measurement by clicking Start. BioZ data is drawn to the Plots tab. Stop an active
BioZ measurement by clicking Stop.
 Ensure electrodes I+, V+, I-, V- are placed as in Figure 29.
Figure 29. BioZ Electrodes: I- (Blue), I+ (Blue), V- (Green), V+ (Green)
 BioZ measurement can be simultaneously enabled alongside the PPG and ECG measurements.
