Analog Devices MAXREFDES106# User Manual

©2023 Analog Devices, Inc. All rights reserved.
42
MAXREFDES106# Health Sensor Platform 4.0

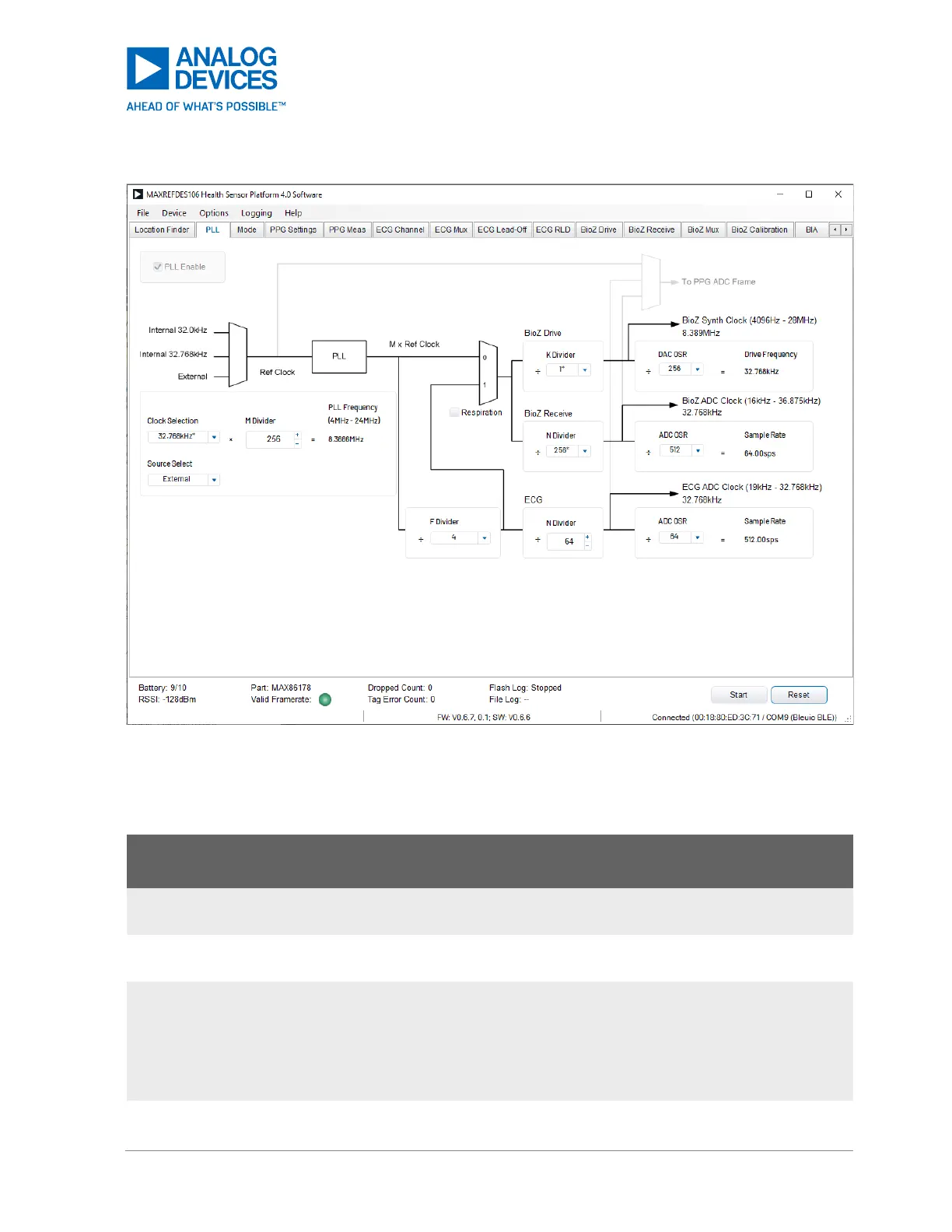

Figure 51. PLL Tab
Available Option
Table 3. PLL Configuration Options
Sub-Section
Option
Description
Clock Selection
Selects internal oscillator between 32KHz and 32.768KHz to
supply the reference clock.
Source Select
Selects between the internal oscillator and external oscillator
to supply the reference clock
Respiration
Enabling Respiration causes the output of the mux to equal
the PLL frequency divided by the F Divider. If disabled, the
output of the mux is simply the PLL frequency. This
functionality allows lower drive and sampling frequencies to
be generated, as measuring respiration does not require high
frequencies.
