MAXREFDES106# Health Sensor Platform 4.0

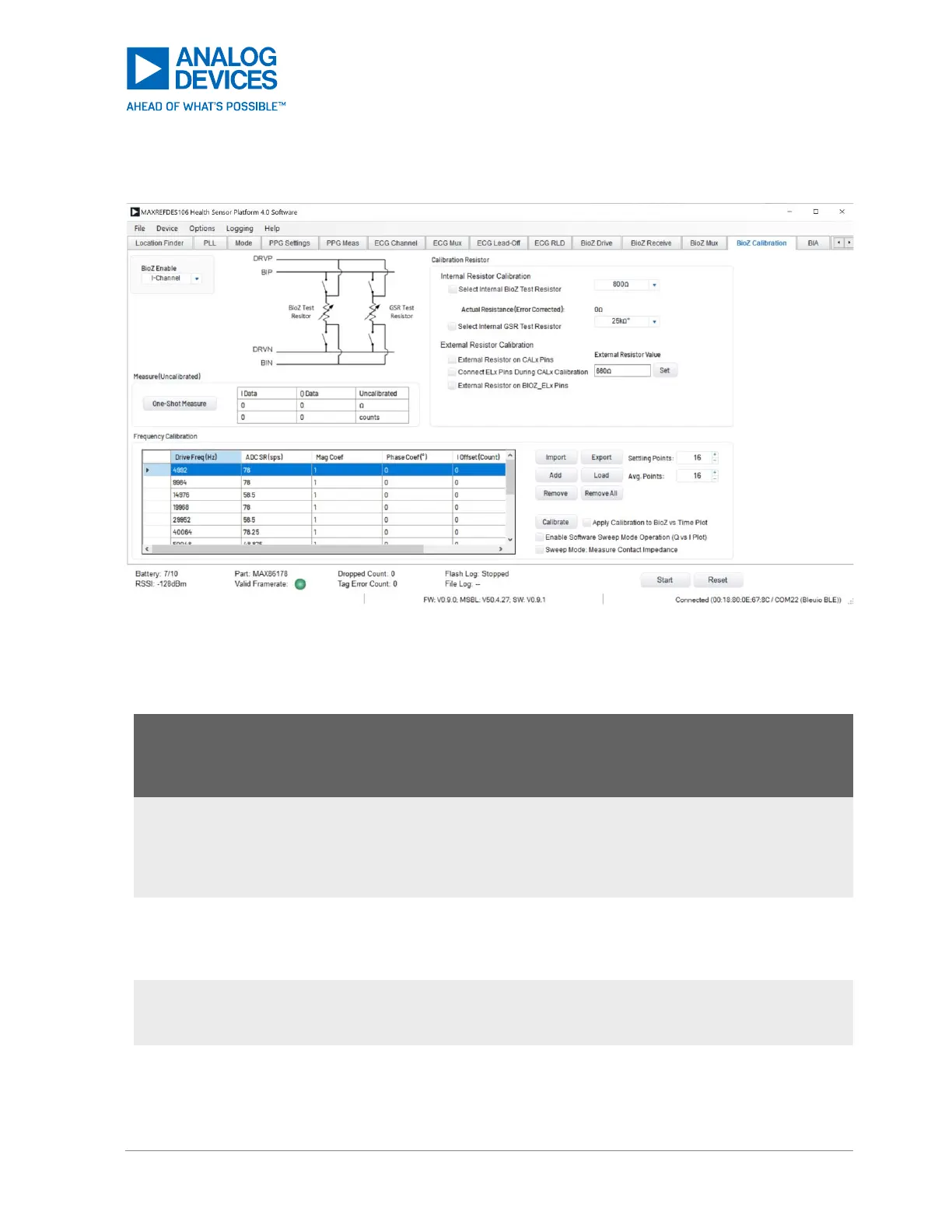

Figure 63. BioZ Calibration Tab
Available Options
Table 14. BioZ Calibration Configuration Options
BioZ Calibration
BioZ Enable
Select I-Channel to Enable BioZ Measurement from
the In-Phase Component or Q-Channel to Enable
BioZ Measurement from the Quadrature-Phase
Component.
Measure (Uncalibrated)
One-Shot
Measure
Select ‘One-Shot Measure’ to get a quick measurement
of voltage and impedance using the settings defined in
the BioZ Drive, BioZ Receive, and BioZ Mux without
having to start data acquisition and having to view
measurements in the ‘Plots’ tab.
Frequency Calibration
The GUI can automatically perform a calibration at
multiple frequencies, allowing calibrated frequency
sweeps for bioimpedance spectroscopy applications.
A default calibration file is loaded when the GUI starts.
Import/Export
After completing the calibration, selecting Export saves
the calibration coefficients to a .csv file, which can later
be reloaded by selecting Import.
Add
Clicking Add copies the current ‘BioZ Drive Frequency’
in PLL tab into frequency list. Multiple frequencies can
