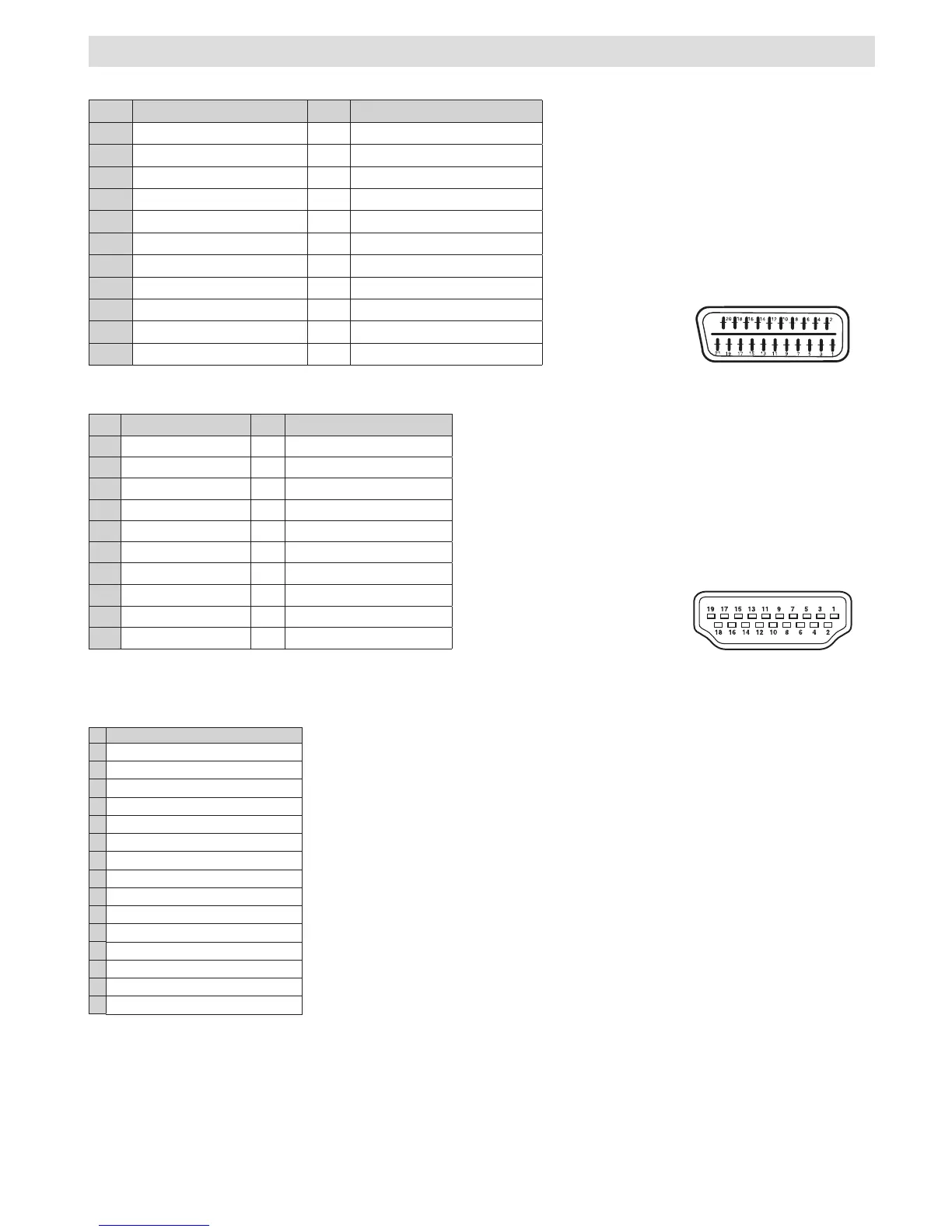

Appendix C: Pin Specications
SCART connector pin specications
Pin
Input signal
Pin
Input signal
1
AUDIO OUT (RIGHT) 12
Not used
2
AUDIO IN (RIGHT) 13
RGB-R GND
3
AUDIO OUT (LEFT/MONO) 14
GND
4
AUDIO GND 15
RGB-R / S.VHS CHROMINANCE IN
5
RGB-B GND 16
BLANKING SIGNAL
6
AUDIO IN (LEFT/MONO) 17
COMPOSITE VIDEO GND
7
RGB-B IN 18
BLANKING SIGNAL GND
8
AUDIO / RGB SWITCH / 16:9 19
COMPOSITE VIDEO OUT
9
RGB-G GND 20
COMPOSITE VIDEO / S.VHS LUMINANCE IN
10
Not used 21
GND / SHIELD (CHASSIS)
11
RGB-G IN
HDMI connector pin specications
Pin
Input signal
Pin
Input signal
1
TMDS Data2+ 11 TMDS Clock Shield
2
TMDS Data2 Shield 12 TMDS Clock-
3
TMDS Data 2- 13 CEC
4
TMDS Data 1+ 14 Reserved (N.C. on device)
5
TMDS Data1 Shield 15 SCL
6
TMDS Data1- 16 SDA
7
TMDS Data0+ 17 DDC/CED Ground
8
TMDS Data0 Shield 18 +5V Power
9
TMDS Data0- 19 Hot Plug Detect
10
TMDS Clock+
Signal Input
PC RGB Terminal (D-sub 15-pin connector)
Pin
Input signal
1
R
2
G or sync on green
3
B
4
No connection
5
No connection
6
R.GND
7
G.GND
8
B.GND
9
No connection
10
GND
11
No connection
12
[SDA]
13
H.sync or H/V composite sync
14
V.sync. [V.CLK]
15
[SCL]
