CPU board Replacing (2
nd
version)

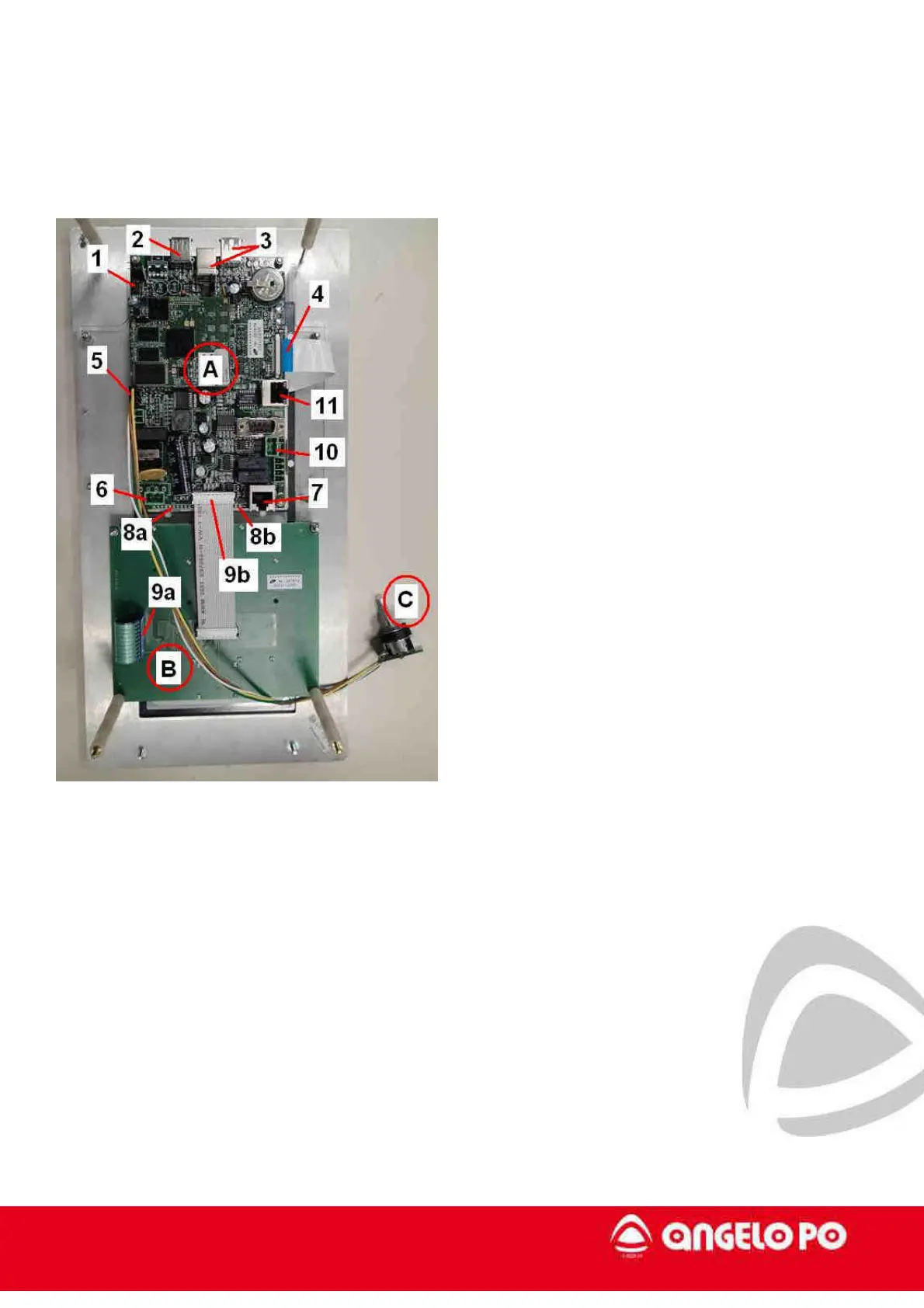

Before removing the CPU board, disconnect all the cables as shown in the picture
1 – Loudspeaker cable
2 – USB cable
3 – USB cable (optional)
4 – LCD display flat cable
5 – Encoder cable
6 – 12V AC power supply cable
7 – Communication cable (connection with
the power board)
8a – Keyboard flat cable (1
st
version)
8b – LED board flat cable (1
st
version)
9a - Keyboard flat cable (2
nd
version)
9b - LED & Keyboard board flat cable (2
nd
version)
10 – Connection with blast chiller (optional)
WARNING: DO NOT CONNECT THE POWER SUPPLY TO THE PLUG 10.
11 – Network cable (optional)
A – CPU B – Keyboard C - Encoder
