Flat cable connection on the LCD display
To remove the flat cable (4) connecting the LCD, must unlock the buckle lock moving it
upward. At this point, the flat is free.
To reconnect the flat it must be threaded into the connector until it comes to the bottom.

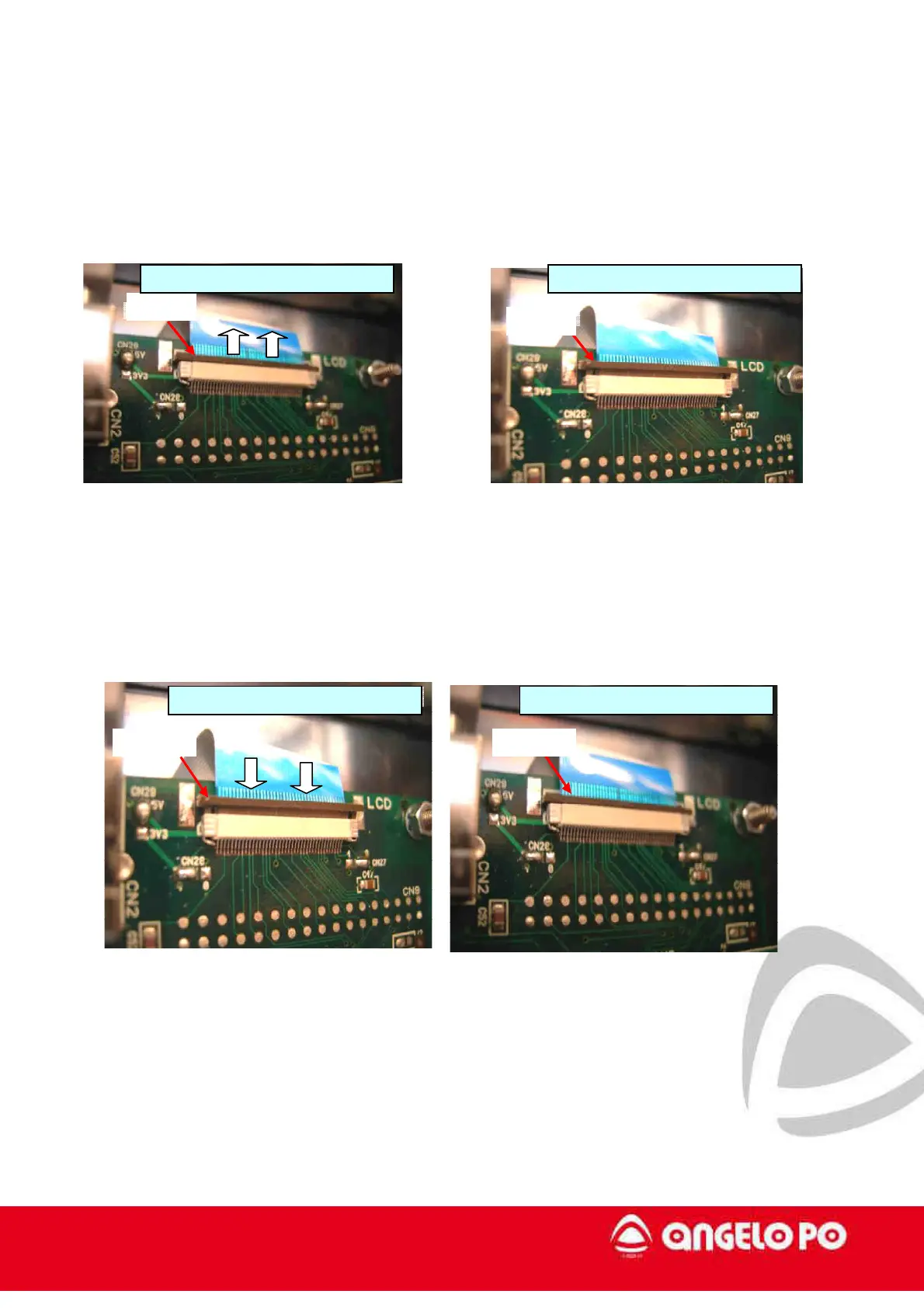

Then lock the cable pushing the clip down as shown in the photo below.
Fermaglio
POSIZIONE “BLOCCATO”
POSIZIONE “SBLOCCATO”
Fermaglio
