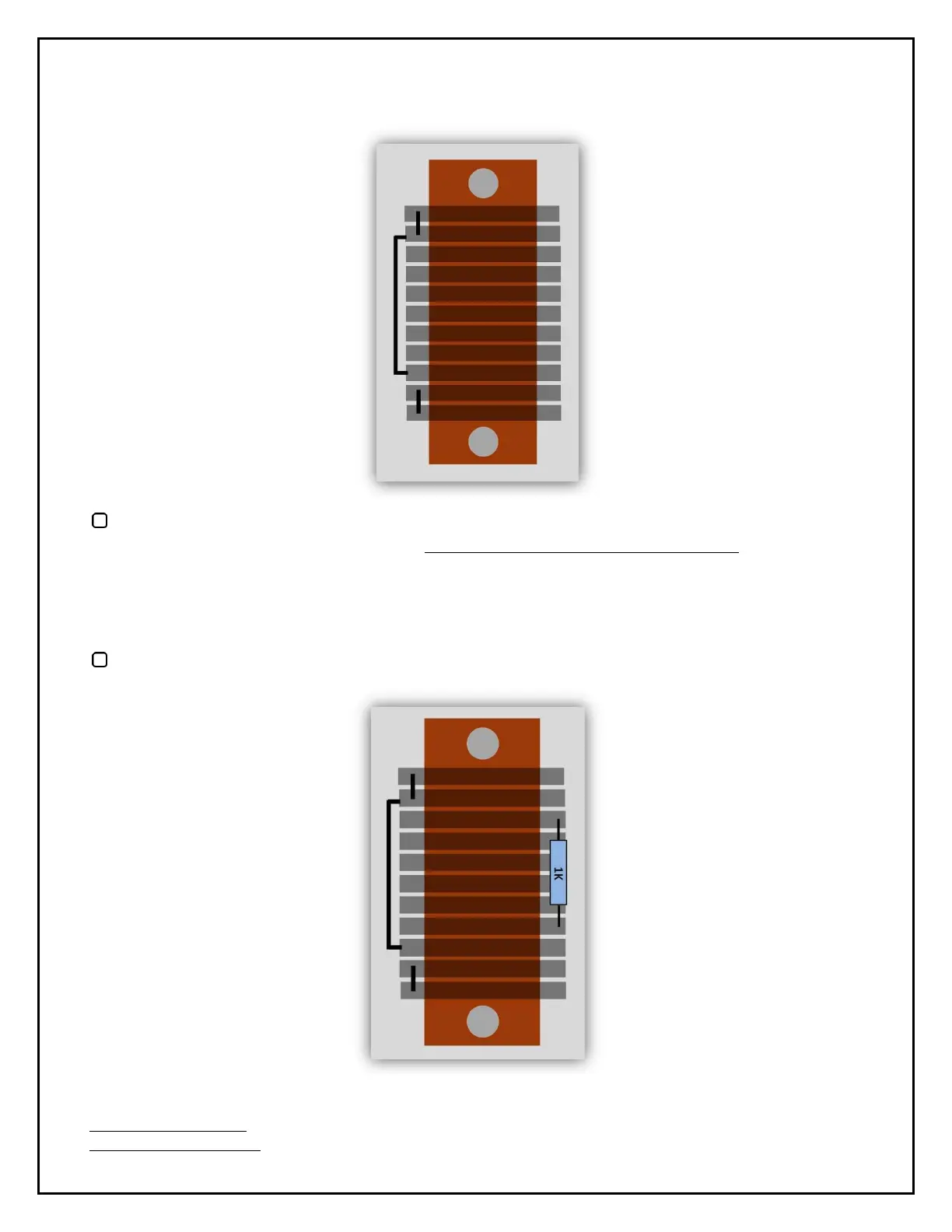

Let's begin with the jumpers:
Measure and connect the 3 jumpers, as shown above. You can use some left over wire, not too
thick. The 2 short jumpers can be bare
but do NOT use bare wire for the longer jumper
as there
are intermediary connections to the Grid resistor and you would quite likely create a short.
Now,
Add the 1K grid resistor, as shown below.
