Page 74

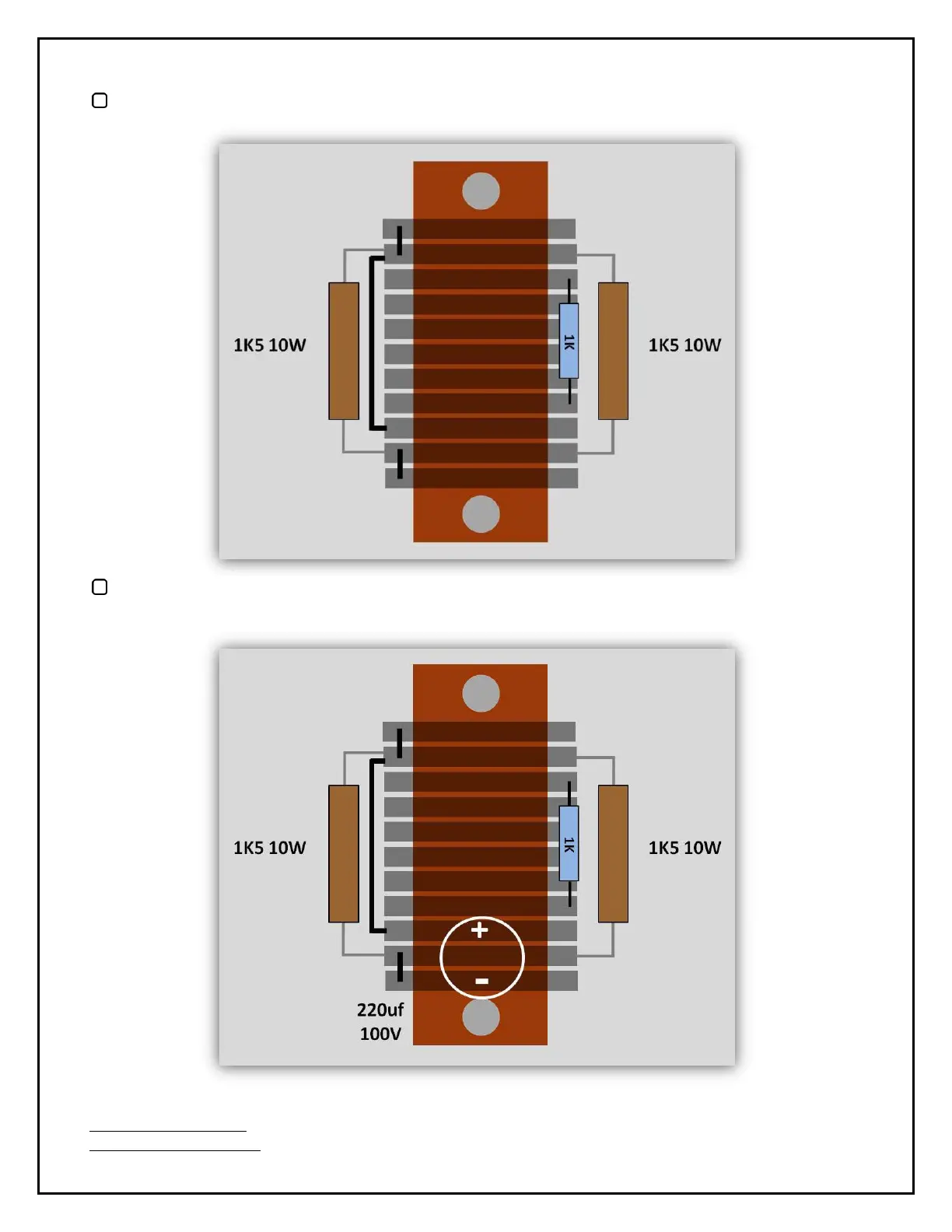

Add the 2 1K5 10W resistors, as shown below.

Add the Nichicon 220uf 100V electrolytic capacitor, as shown below. Be sure to connect the

POSITIVE and NEGATIVE leads correctly.
