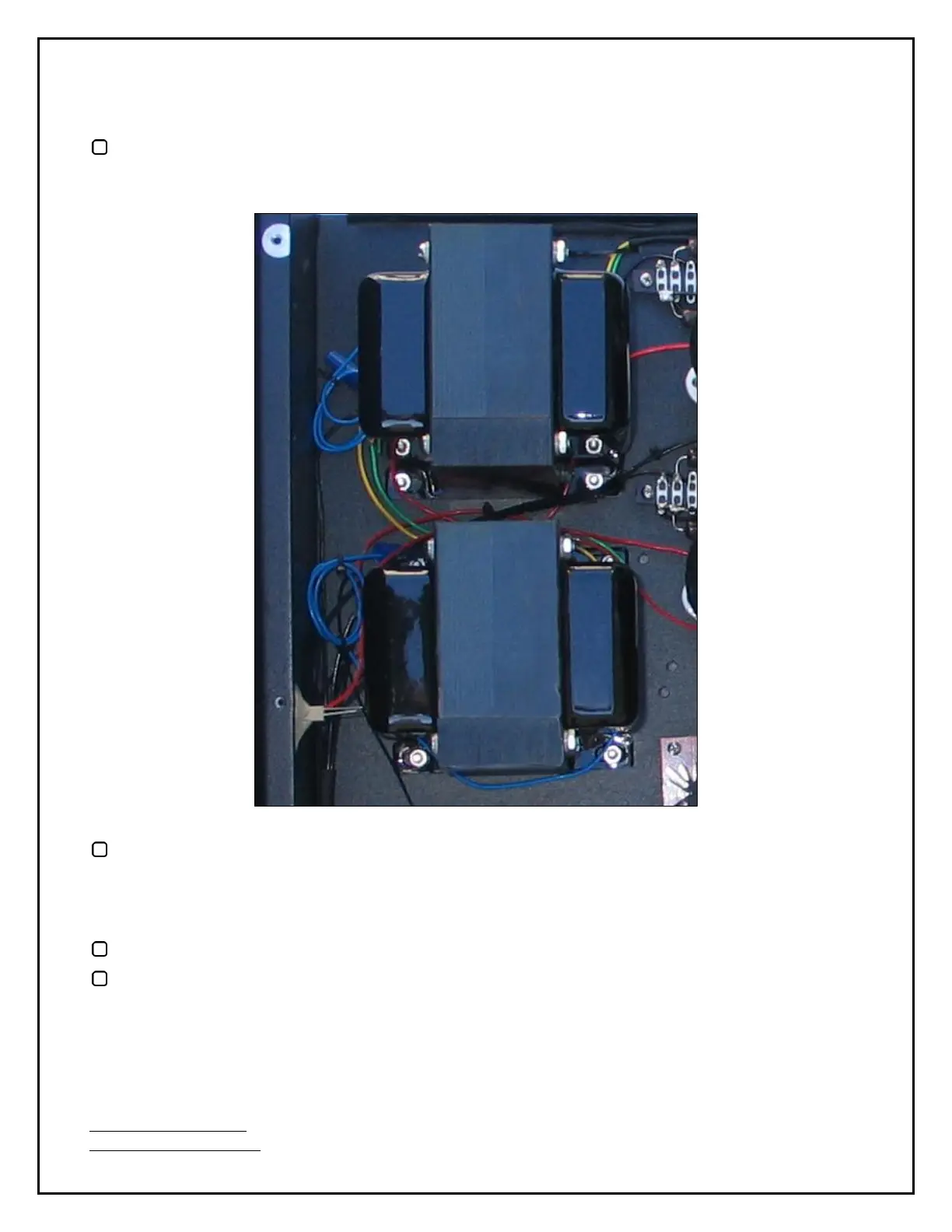

Left Speaker Post 8 Ohm Wiring
Cut
just the exposed end
of the Blue wire cleanly, cover it with a small plastic wire connector, and
tuck it between the transformer and the front of the chassis.
Route the Purple and Green wires from the Left output transformer between the 2 transformers,
behind the Right transformer as shown above, and route the 4 wires along the outside of the
chassis alongside the Mains Secondary wires (use cable ties and/or heatshrink to keep them
together neatly.
Connect the Purple wire coming from the Left output transformer to the Left Red speaker post.
Connect the Green wire coming from the Left output transformer to the Left Black speaker post.
